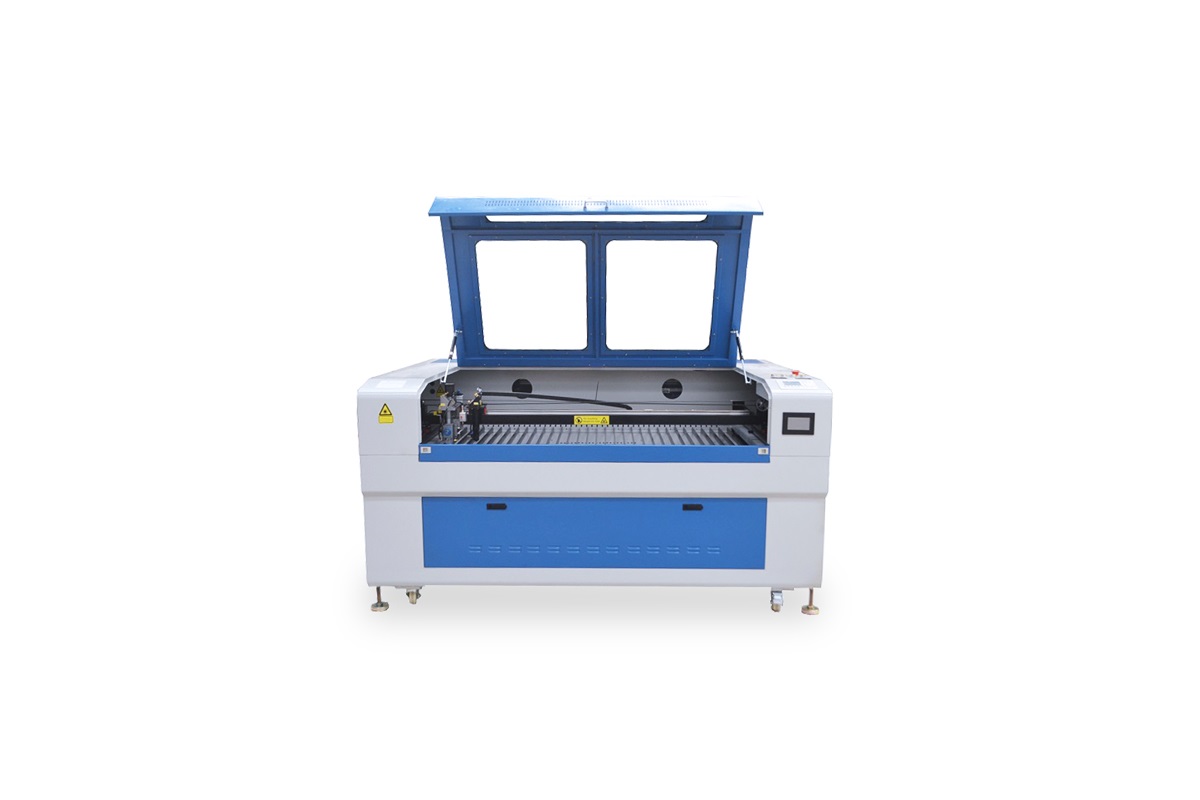

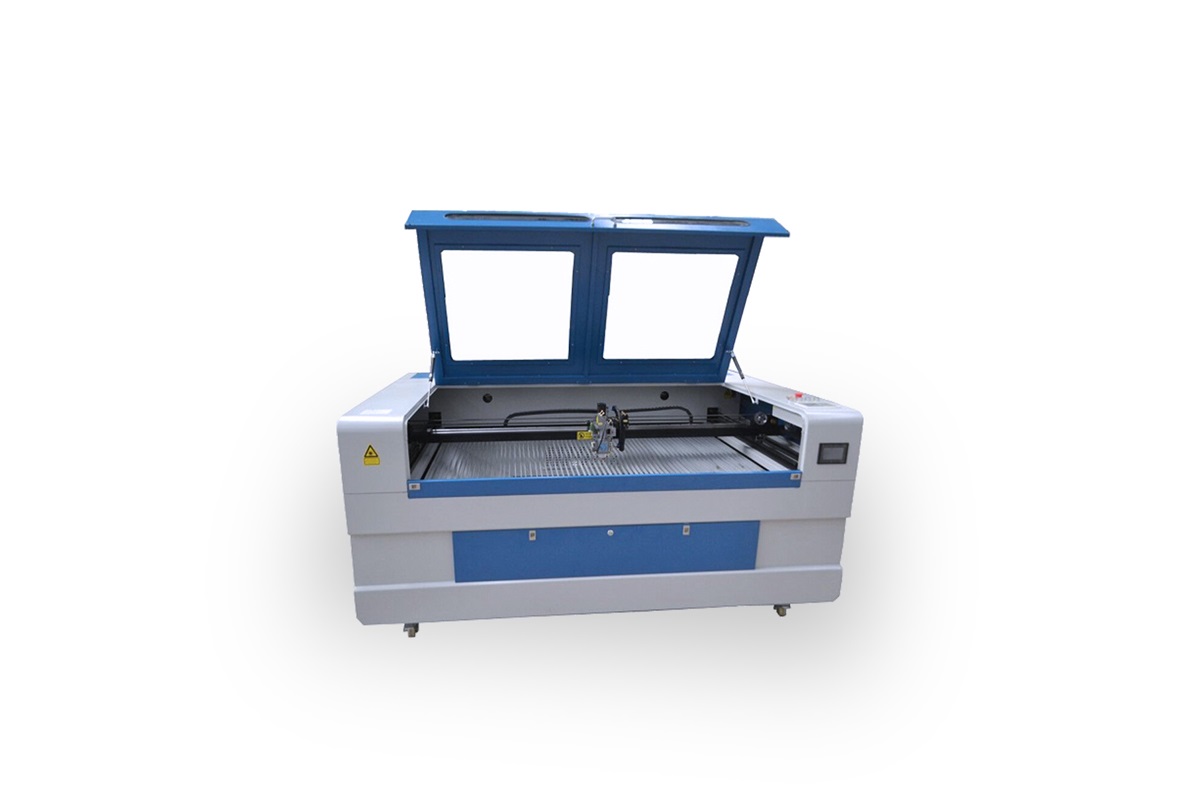

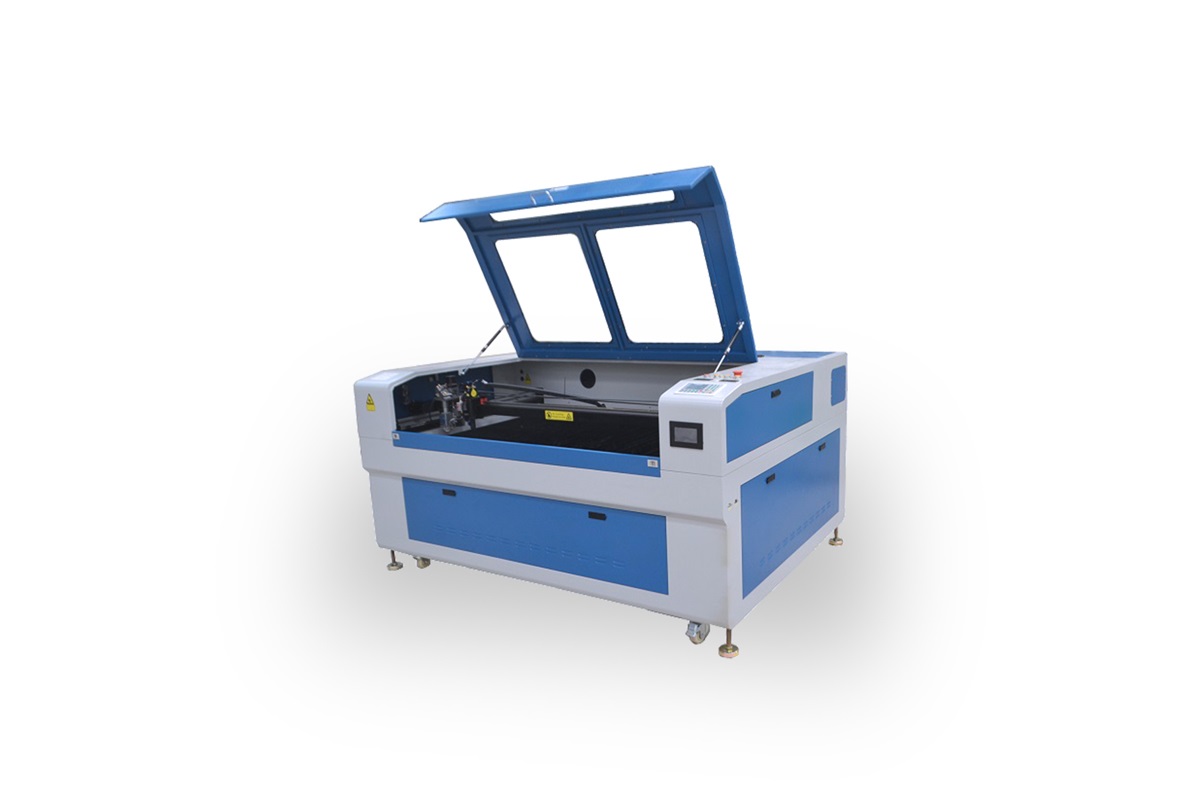

Two heads mixed laser cutting machine HT-1390
Characteristic
This type machine is mixed laser cutting machine with two Co2 laser tube and two heads,the mixed laser heads can cut Metal and nonmetal such as steel,acrylic, PVC, rubber sheet, plastic, wood, bamboo, leather, cloth, double-color board, etc. and small laser head suitable to engraving nonmetal material.
Performance parameter
| Model | HT-1390 | HT-1410 | HT-1610 |
| Working area | 130cm*90cm | 140cm*100cm | 160cm*100cm |
| Equipment Dimension | 175cm*131cm*107cm | ||
| Laser power | 60/90/150W/180/280W/300W | ||
| Laser type | CO2 sealed laser tube,water-cooled | ||
| Engraving speed | 0-6000cm/min | ||
| Cutting speed | 0-5000cm/min | ||
| Power supply | 220V/50HZ,110V/60HZ | ||
| Graphic format supported | BMP, PLT, DST, DXF, AI | ||
| Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA | ||
| Driving system | stepper motor | ||
| Net Weight | 400kg | ||
| Optional parts | UP-down worktble,Rotary axis | ||
| Applicable material | Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood ,metal,etc. | ||
Power and cutting thickness
| W6(150W) | W8(180W) | Yongli 280W | Yongli 300W | |
| acrylic | 20mm | 25mm | 30mm | 30mm |
| plywood | 15mm | 20mm | 20mm | 20mm |
| MDF | 10mm | 15mm | 20mm | 20mm |
| stainless steel | 1mm | 2mm | 3mm | 3mm |
| carbon steel | 1.5mm | 2mm | 3mm | 3mm |
