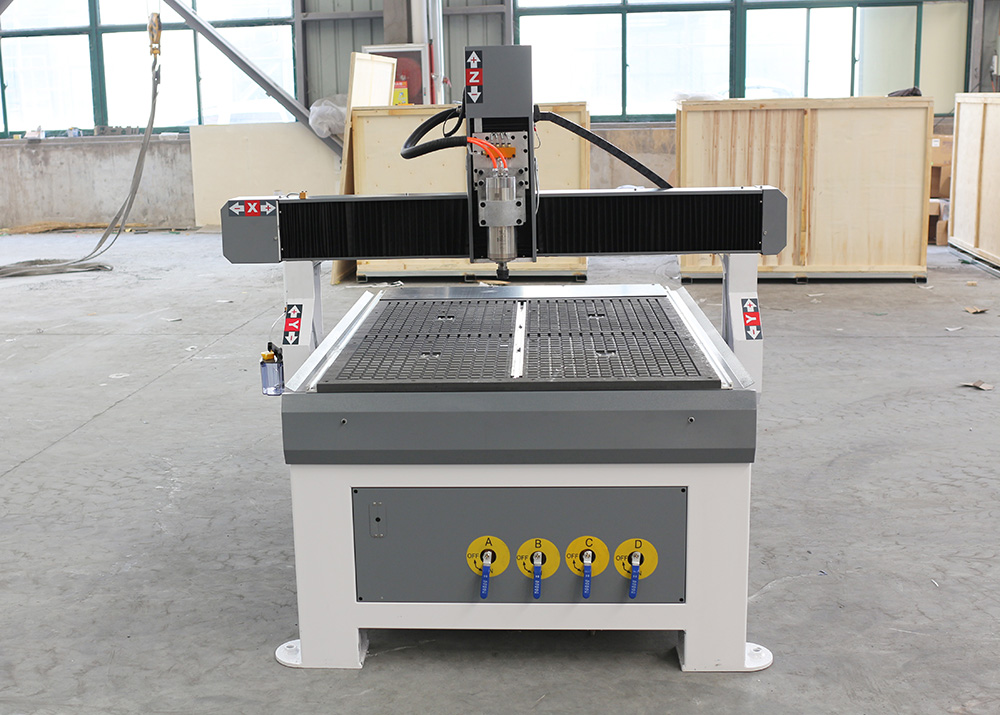

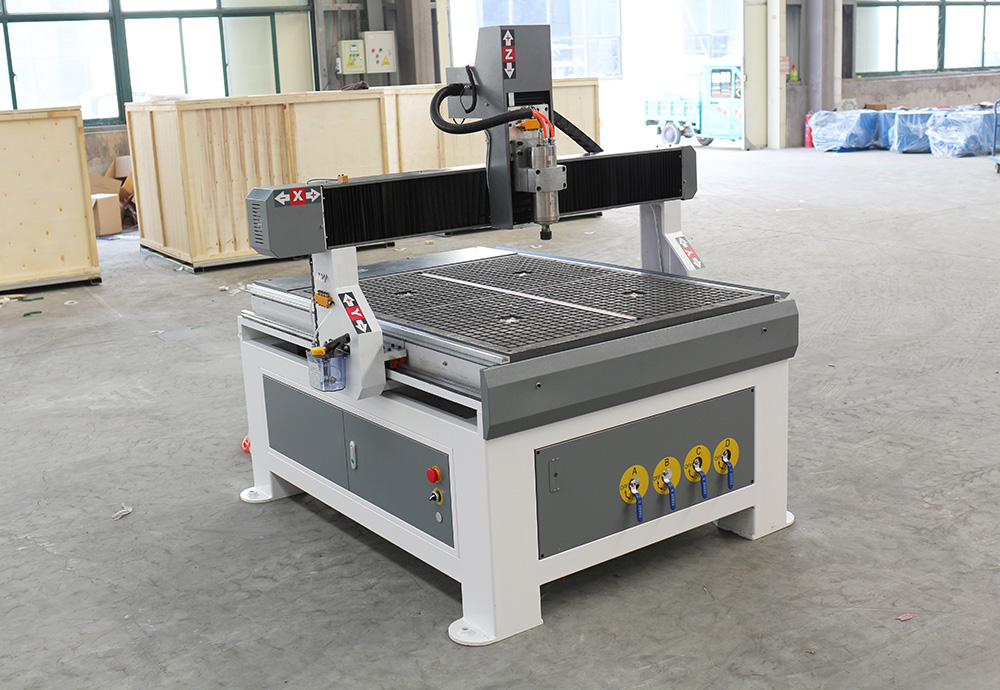

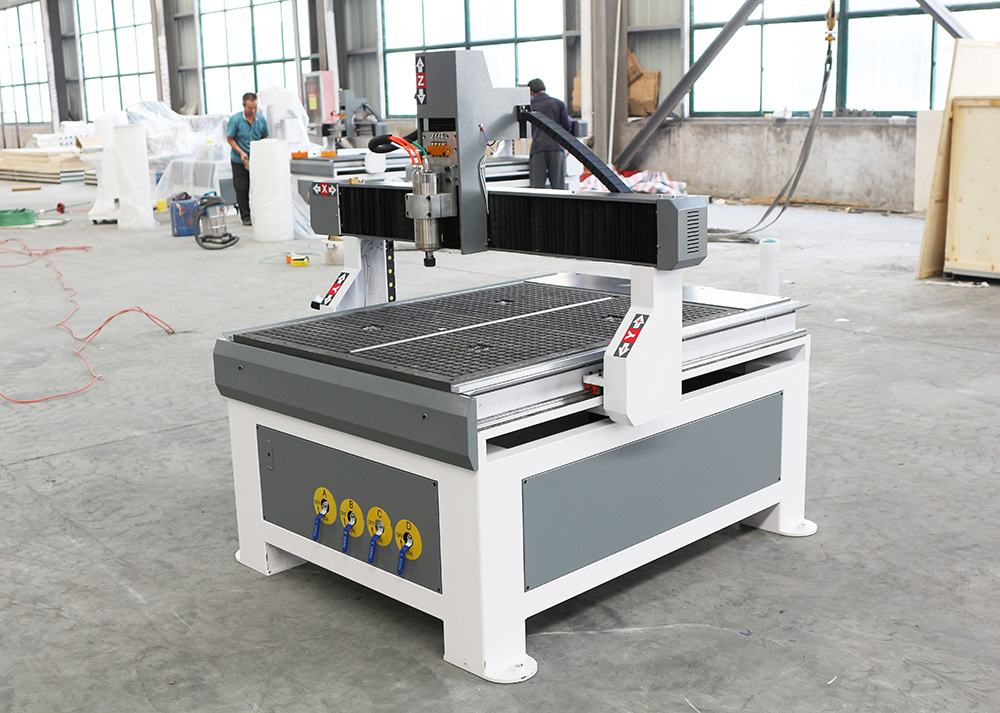

small cnc router machine
Small cnc router machine 9012 Features：
1. The cast iron body design and three-axis ball screw transmission method have high precision, simple maintenance, and low failure.
2. The internationally recognized CNC machining system is easy to operate and can receive data through a USB flash drive or network.
3. High speed stepper motor, with strong force, fast speed, smooth operation, and low noise.
5. Imported high-precision linear track, running smoothly and with high precision.
6. The Z-axis adopts imported industrial grade ball screws for accurate positioning.
8. Good software compatibility, compatible with various CAD/CAM design and production software such as TYPE3, Artcam, Jingdiao JD, Wentai Carving, UG, MasterCAM, PowerMill, etc.
9012 small cnc router machine Paramenters:
|
Working area
|
900x1200x100mm
|
|

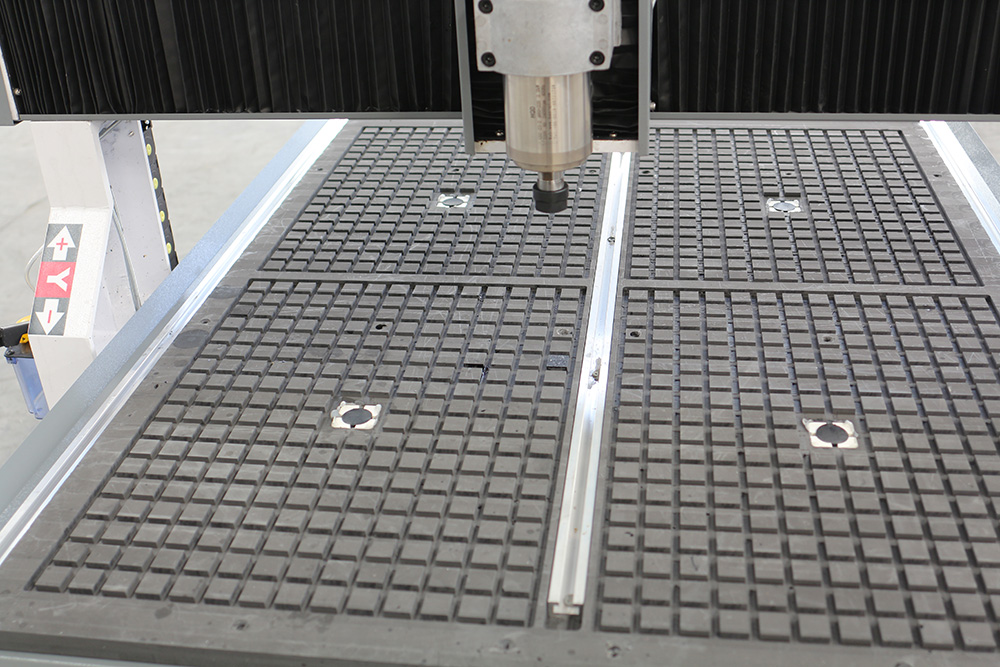

Working table
|
Vacuum table with T-slot
|
|

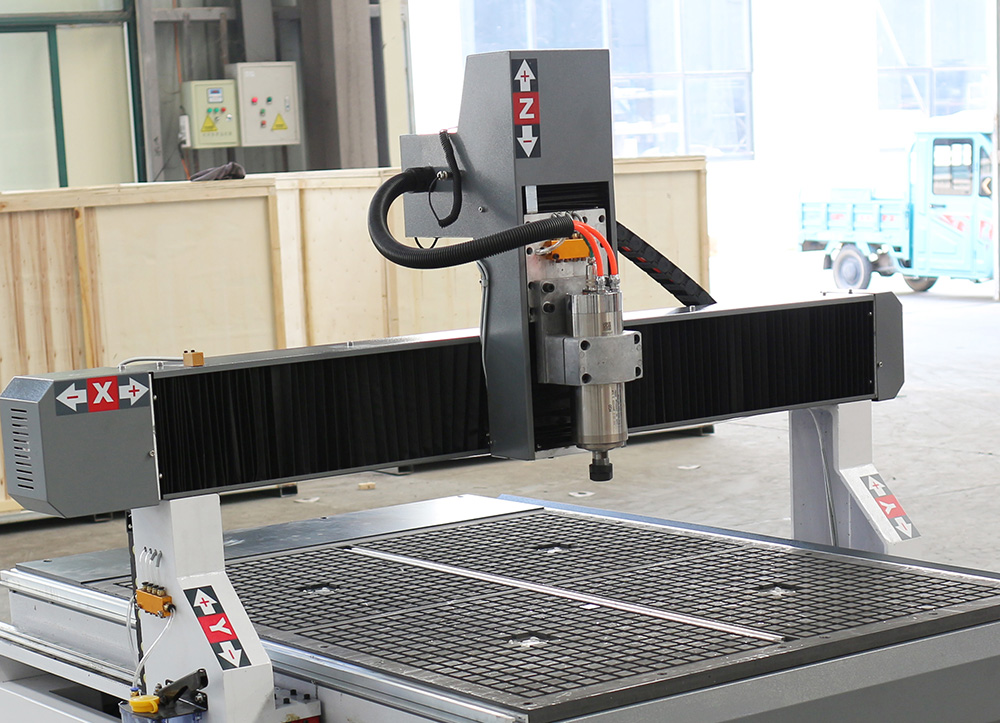

Spindle
|
2.2kw/ 3.2kw /5.5kw
|
|
Control system
|
DSP / NC Studio /MACH3
|
|
Inverter
|
Best / Fuling
|
|
Transmission
|
X-Y Z-axis ball screw
|
|
Guide rail
|
Taiwan square HIWIN guide rail
|
|
Driving system
|
Stepper motor and driver, optional servo
|
|
Machine body
|
Thick and square tube welding
|
|
Command code
|
G Code
|
|
Software
|
Artcam/Type3,other CAD/CAM
|
|
Voltage
|
AC 220 / 380 V
|
9012 small cnc router machine application：
Furniture decoration industry (woodworking, doors, curtain walls, decorative partitions)
Signs and advertisements (indoor and outdoor signs, carvings and reliefs, 3D letters)
Models and prototypes
Plastics and composite materials (ACP, ACM, solid surface materials, etc.)
Nonferrous metals and oceans
Material Science:
Wood: plywood, cork, hardwood, medium density fiberboard, particleboard, etc.
Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc.
Metals: aluminum, brass, copper, etc.
Composite materials: aluminum composite materials, copper composite materials, titanium, composite materials, zinc composite materials, etc.
