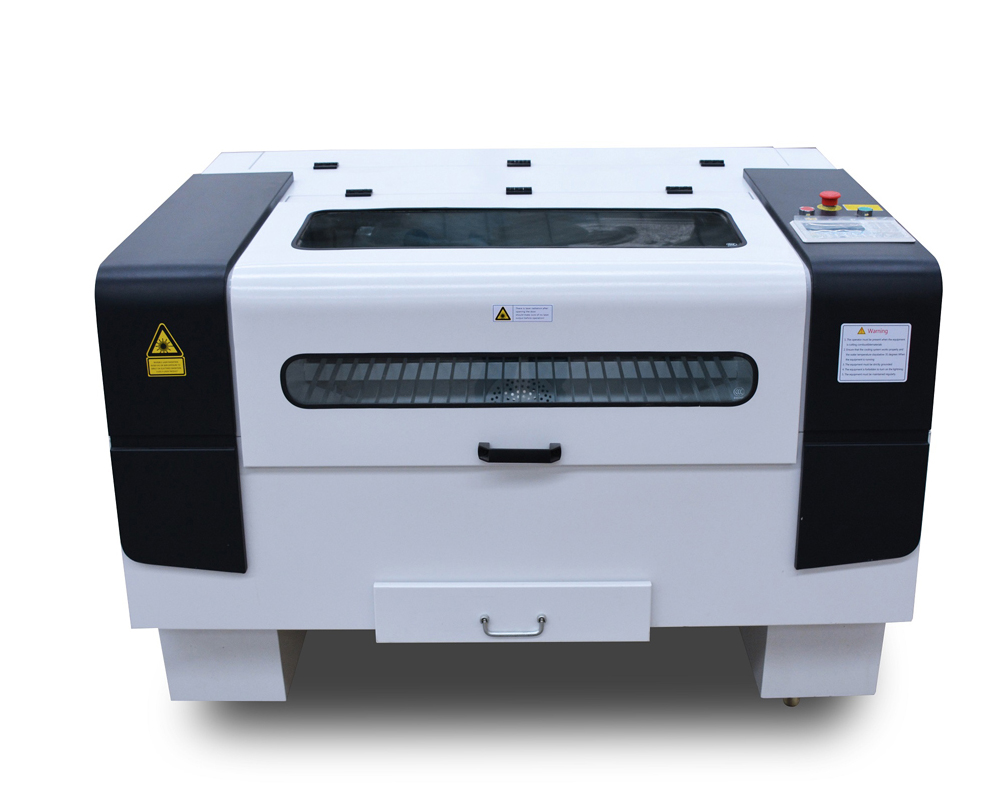

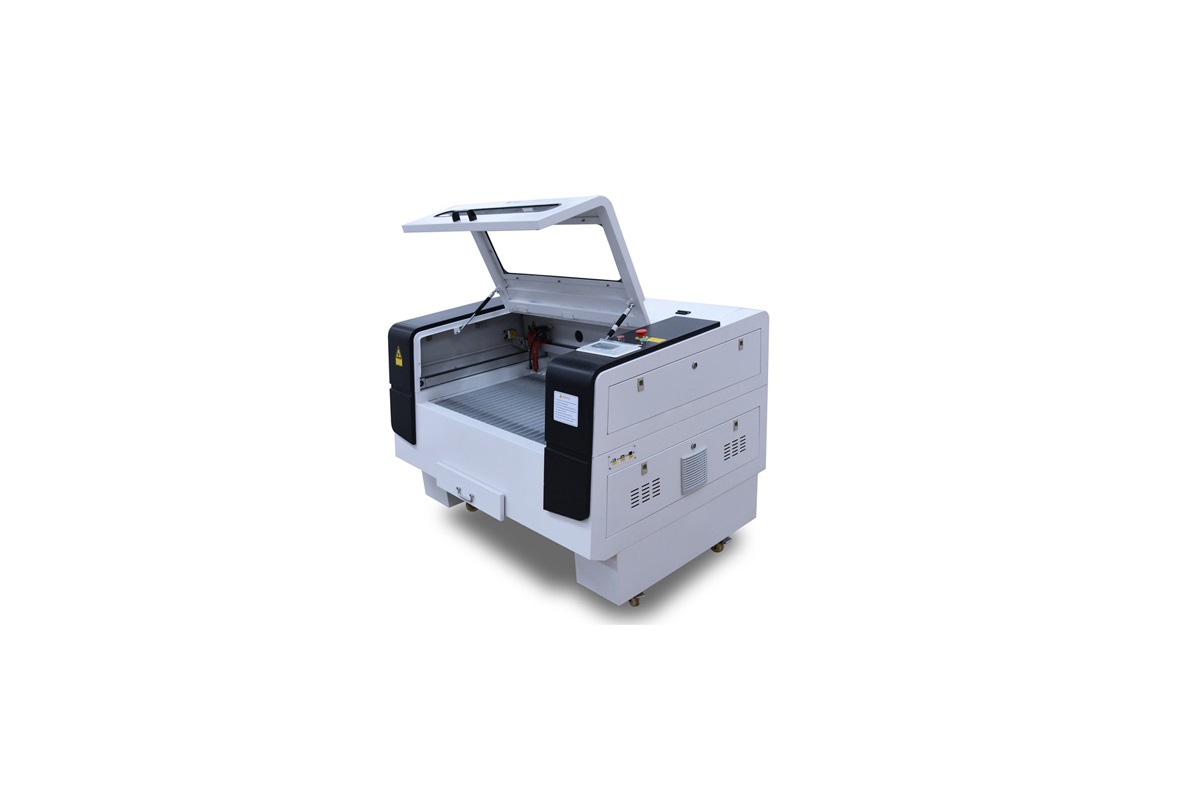

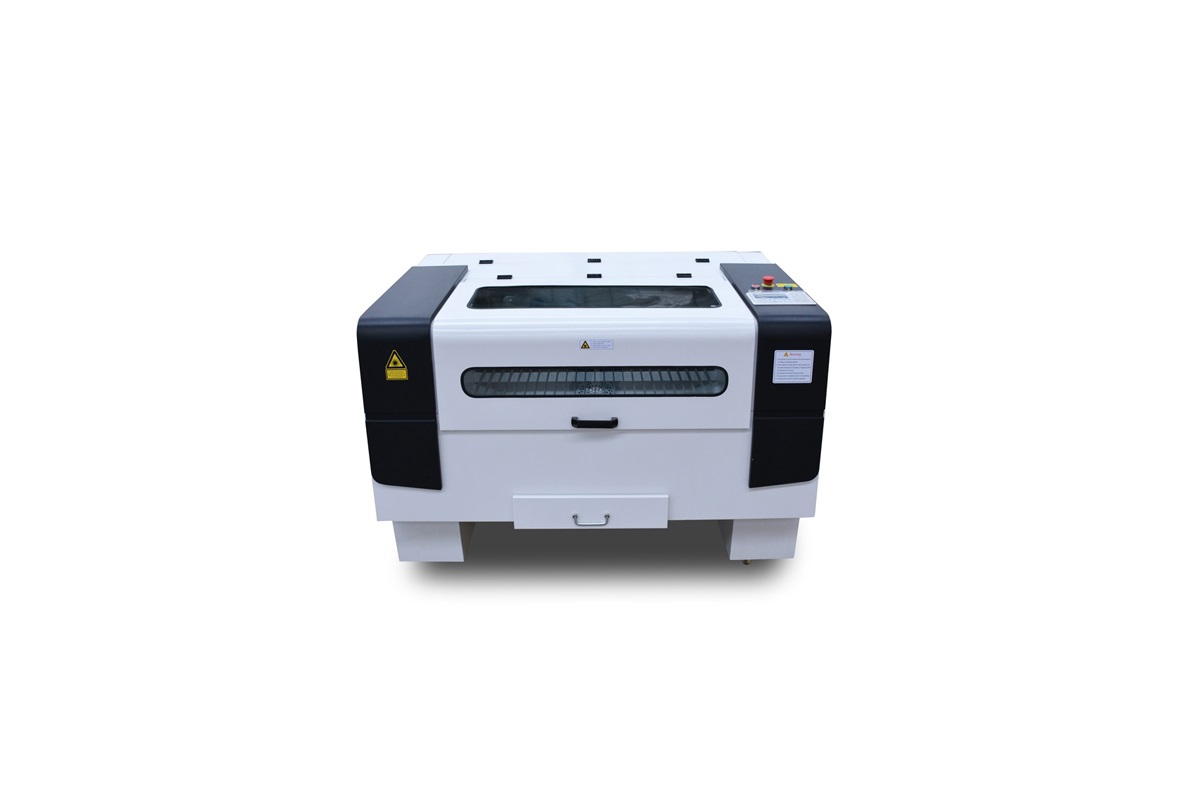

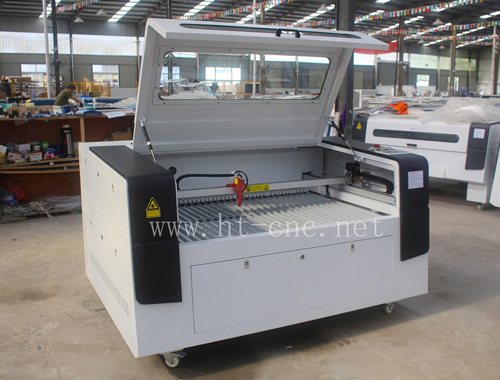

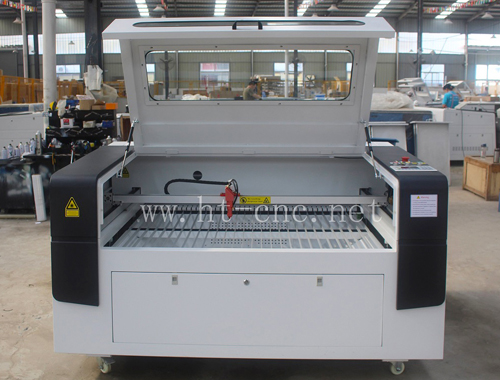

New type laser engraving cutting machine 9060

This New type laser engraving cutting machine 9060system equipped with Co2 laser tube,it is used to engrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .

Parameter

Model	laser engraving cutting machine 9060
Working area	90cm*60cm
Equipment Dimension	145cm110cm107cm57in43in42in(LWH)
Laser power	60/80/100W
Laser type	CO2 sealed laser tube,water-cooled
Engraving speed	0-6000cm/min
Cutting speed	0-5000cm/min
Power supply	220V/50HZ , 110V/60HZ
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving system	stepper motor
Net Weight	230kg
Optional parts	Up-down worktable,Rotary axis
Applicable material	Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood etc.

Application

Cutting, engraving and punching soft materials, such as all sorts of clothing, leather, carpet, suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics etc.

Material	Cut	Engrave
Acrylic \| Plexiglass \| PMMA \| Perspex	√	√
Organic board \| Double color sheet	√	√
Wood \| Plywood \| Veneer \| MDF \| Balsa	√	√
Leather \| PU \| Shoe Material \| Synthetic Leather \| Genuine Leather	√	√
Fabric \| Cloth \| Textile	√	√
Carpet \| Mat \| Rug \| Wool Felt	√	√
Paper \| Cardboard \| Chipboard \| Press Board	√	√
Ceramic \| Tile \| Marble \| Glass	√	√
Plastic	√	√
Fiber Glass \| Filter Cloth	√	√

1. Aluminum knife or honeycomb table. Both tables can be used for processing different materials.
2. Adopt Reci CO2 glass sealed laser tube, good beam stability and long service time.
3. Imported lens and lens. High light transmittance, good focusing and reflection effect.
4.Laser engraving cutting machine 9060 with Ruida controller system, support online/offline work, English language system, adjustable cutting speed and power.
5. High-precision stepper motor and driver, belt gear drive, Taiwan high-precision linear guide, effectively increase the processing accuracy of the machine

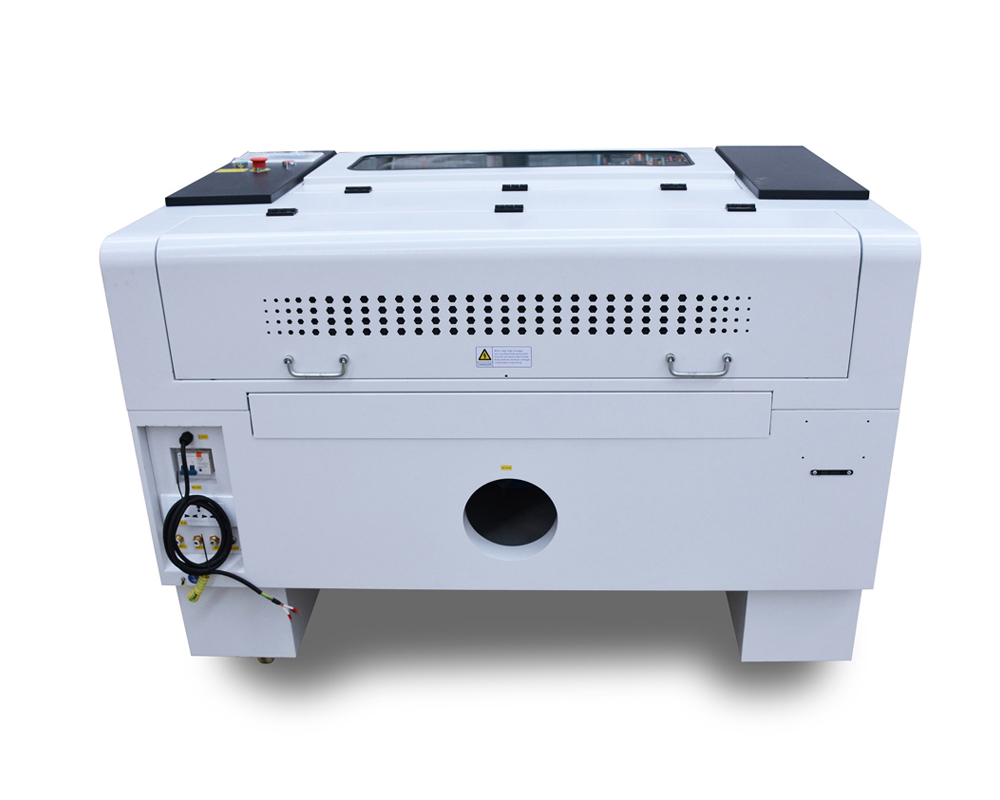

6. There is an opening at the back of the machine tool, which can increase the processing area.

Machine parts

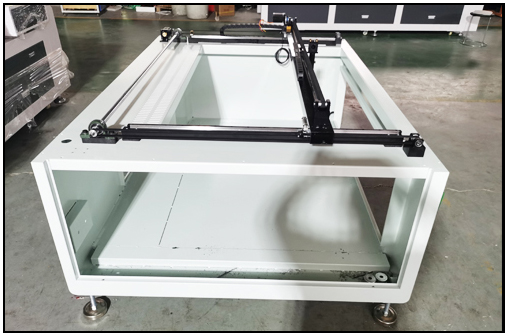

	The Laser engraving cutting machine 9060 bed was milled,so can make the machine work more accurate.

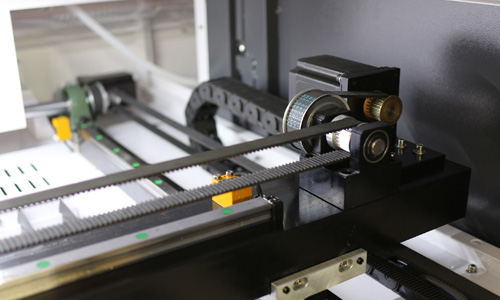

Gear and belt drive, gears are copper, wear-resistant and long service life

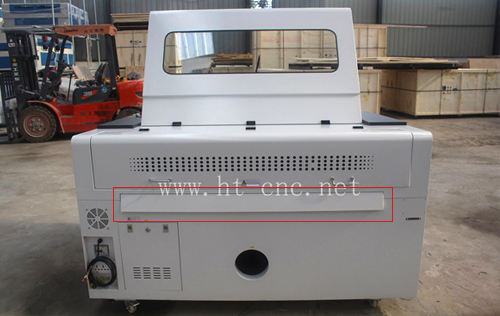

	There is an opening at the back of the machine tool, which can increase the processing area.

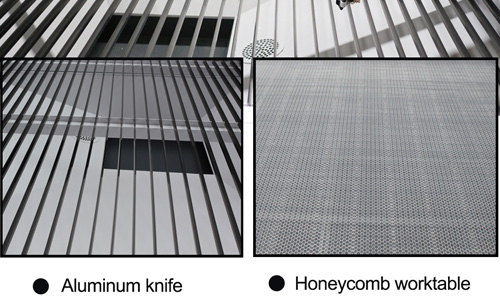

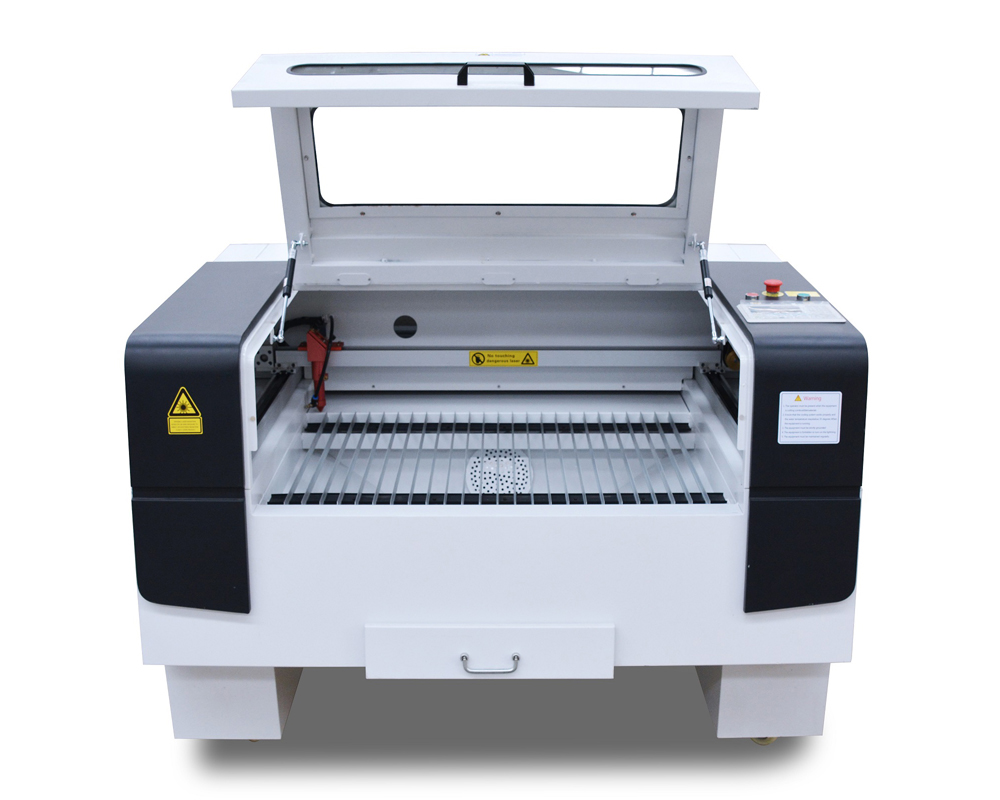

The blade work table processes hard materials, the honeycomb workbench processes soft materials

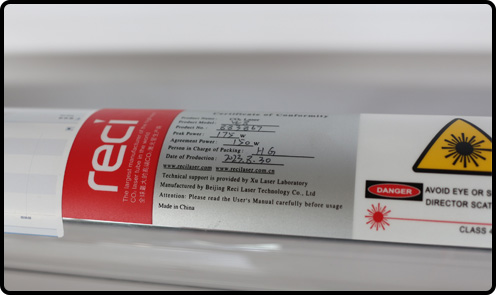

	Machine uses Reci laser tube, which have high power output, good beam quality, and long service life.

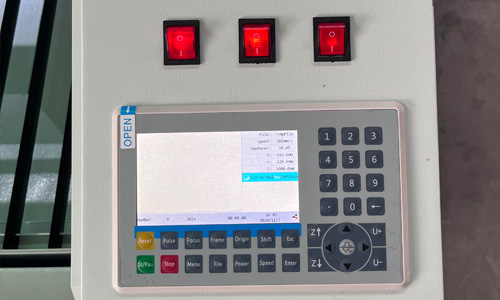

LCD digital display, Ruida control system, easy to operate

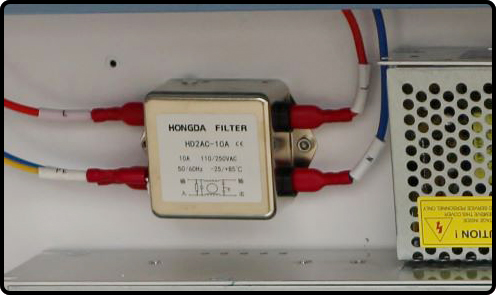

	With filter, to reduce electronic magenic interference, the machine with high perfomance
High-speed stepper motor, stable operation

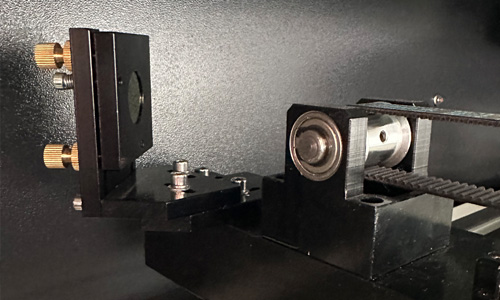

	The special mould for the mirror and laser tube , so it can adjust the laser path easily.

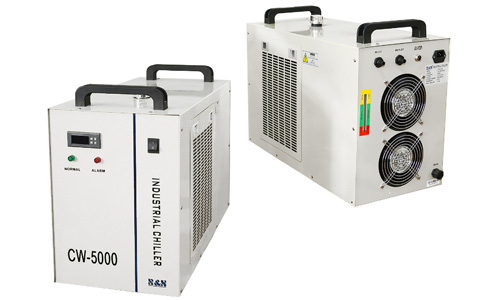

CW series water chiller, good cooling effect

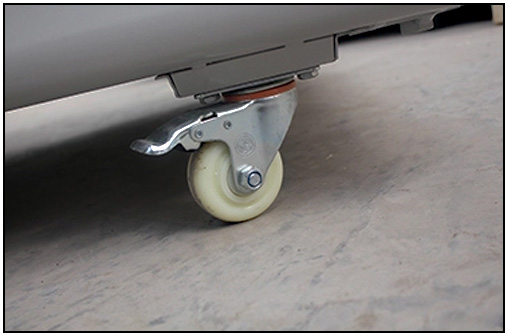

	With four wheels in four coner,can move the machine easily.

Machine component connection
Take out the laser tube, install and fix the laser tube, and connect the high-voltage and low-voltage wires of the laser tube. Connect the cooling water pipe of the laser tube. Connect the chiller, air pump, and fan. Start testing the machine (Note that before the laser tube works, make sure the cooling water is connected)

Company Profile

Jinan Hopetool CNC Equipment Co.Ltd. is located in Jinan, Shandong Province, China. The company integrates production and trade, and has 15 years of production experience. Its main products include CNC router, laser machines, fiber laser cutting machines, etc. Our products have complete CE, ISO, SGS, high tech company certificate and other certificates, and we have export certificates, which can be sold all over the world.Certificate

Customer Photos

FAQ:

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
