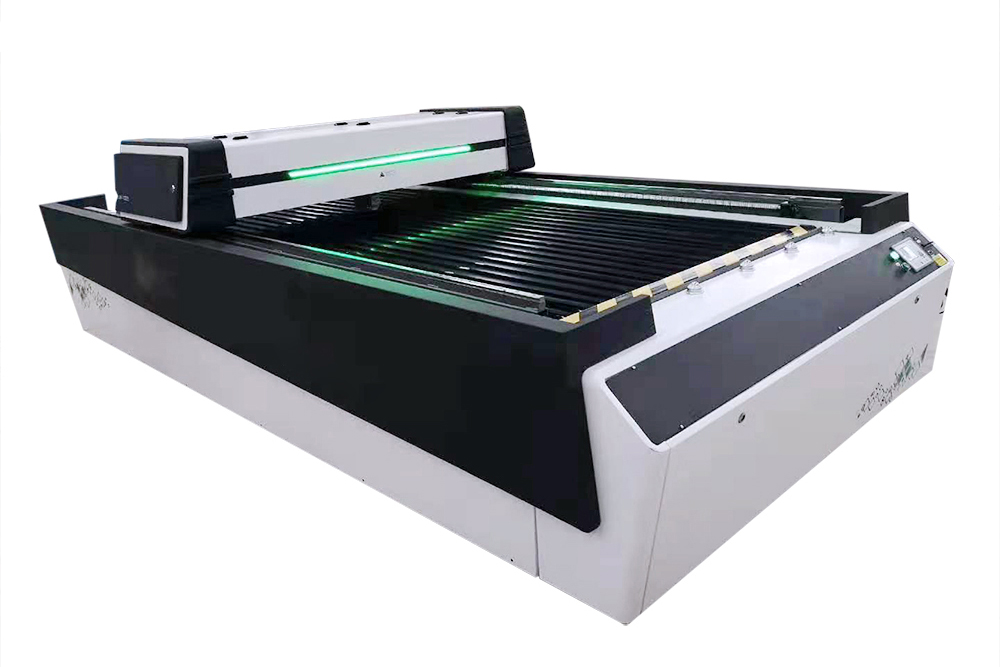

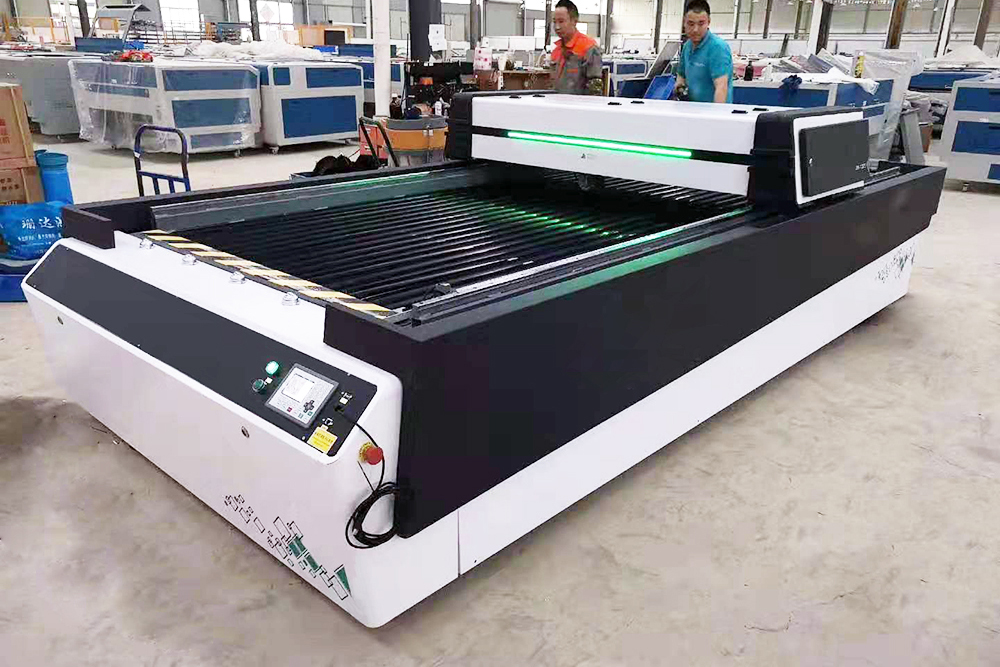

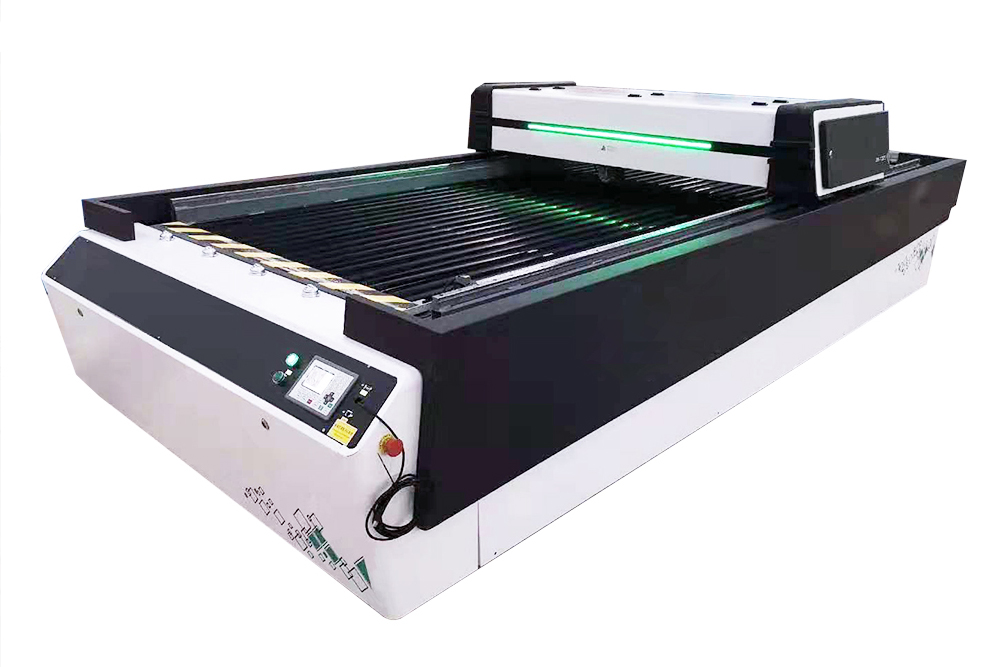

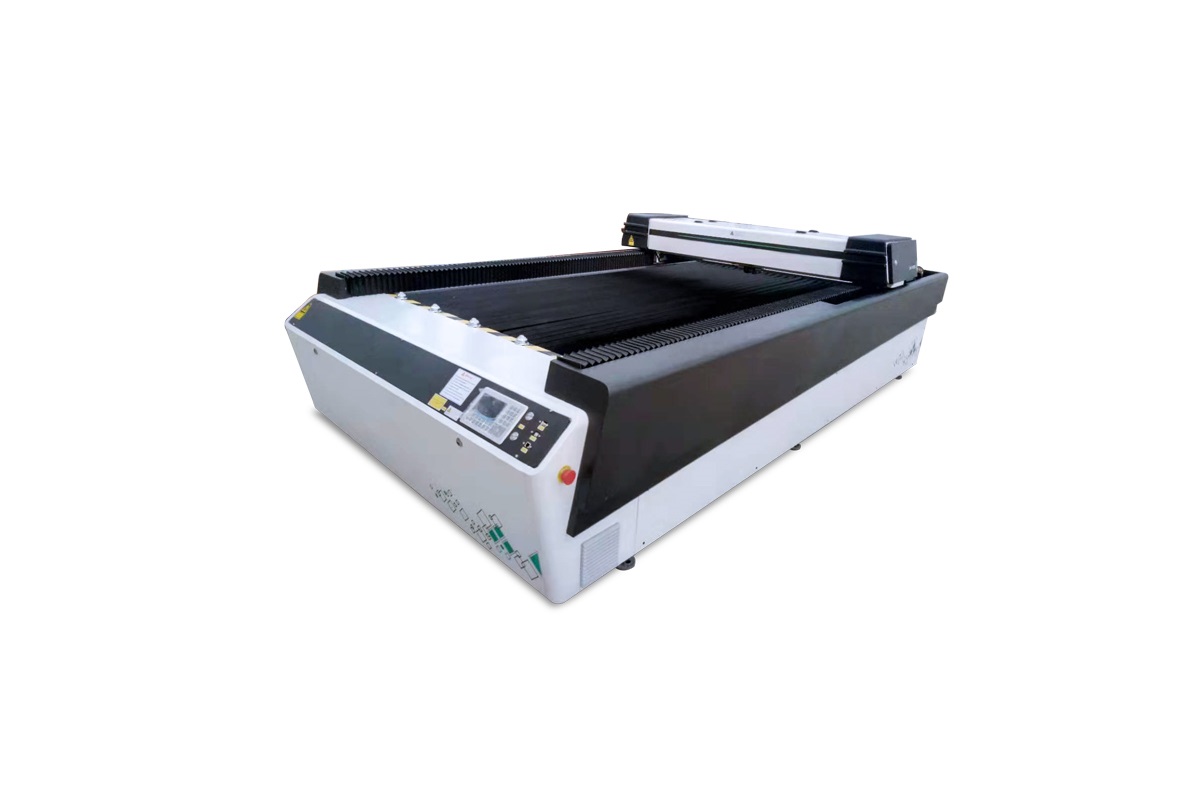

New type co2 laser cutter 1325
New type co2 laser cutter 1325 machine are mainly used for engraving and cutting on acrylic, PVC, rubber sheets, plastics, crystal, glass,
wood, bamboo, horns, shells, marble, leather, cloth, two-color plates and other non-metallic materials. The cutting gap is narrow and the speed is fast.
Performance parameter
| Model | Laser cutting machine (HT-1325) |
| Working area | 130cm*250cm |
| Equipment Dimension | 308cm*200cm*112cm |
| Laser power | 100/130/150W |
| Laser type | CO2 sealed laser tube,water-cooled |
| Engraving speed | 0-6000cm/min |
| Cutting speed | 0-5000cm/min |
| Power supply | 220V/50HZ , 110V/60HZ |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
| Driving system | stepper motor |
| Net Weight | 1150kg |
| Optional parts | Up-down worktable,Rotary axis |
| Applicable material | Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood etc. |

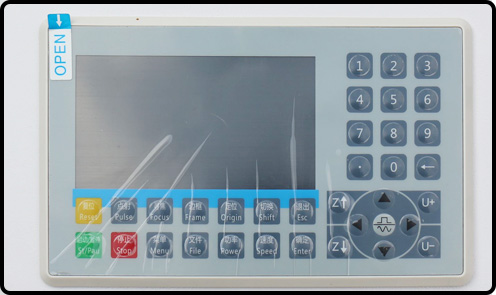

1. Adopt LCD touch screen, support USB port and DSP offline control system, can insert U disk for USB communication
2.New type co2 laser cutter 1325 machine with Taiwan high-precision linear guide rail, fast lubrication, good engraving quality, long machine life.
3. Honeycomb or aluminum bar workbench can be selected to meet diverse processing needs
4. CW type water cooler with temperature display, good cooling effect.
5. Imported silicon lens, good reflective effect, high and stable working efficiency.
6. High-speed stepper motor and driver, small error, high repetition accuracy
7. Red light locator, make laser visible, achieve precise positioning.
Application
Cutting, engraving and punching soft materials, such as all sorts of clothing, leather, carpet,suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics etc.
| Material | Cut | Engrave |
| Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
| Organic board | Double color sheet | √ | √ |
| Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
| Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
| Fabric | Cloth | Textile | √ | √ |
| Carpet | Mat | Rug | Wool Felt | √ | √ |
| Paper | Cardboard | Chipboard | Press Board | √ | √ |
| Ceramic | Tile | Marble | Glass | √ | √ |
| Plastic | √ | √ |
| Fiber Glass | Filter Cloth | √ | √ |
Machine parts
 |
 |

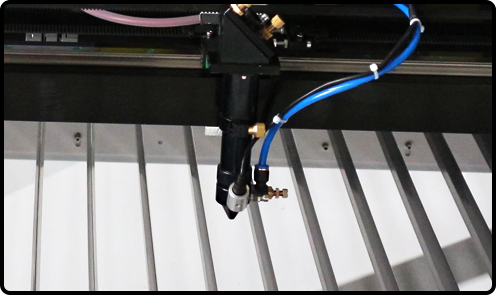

| Laser head | LCD digital display |
 |
 |

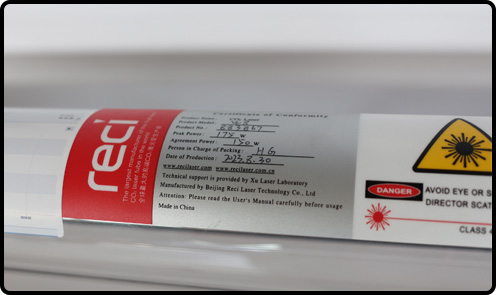

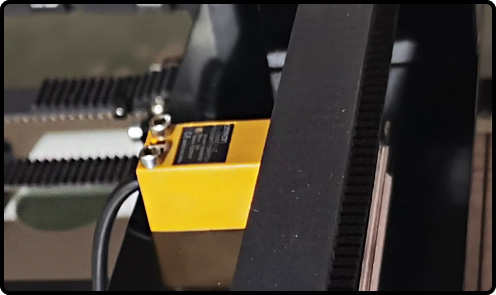

| Reci laser tube | Limit switches |
 |
 |
| Stepper motor | Reflective lenses |
 |
 |
| Work table | CW water cooler |
Company Profile
Jinan Hopetool CNC Equipment Co.Ltd. is located in Jinan, Shandong Province, China. Our company integrates production and trade, and has 15 years of production experience. Mainly produce and sale CNC routes, co2 laser cutter 1325 machines, fiber laser cutting machines, etc. Our products have complete CE, ISO, SGS, high tech company certificate and other certificates, and we have export certificates, which can be sold all over the world.
FAQ:
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)
