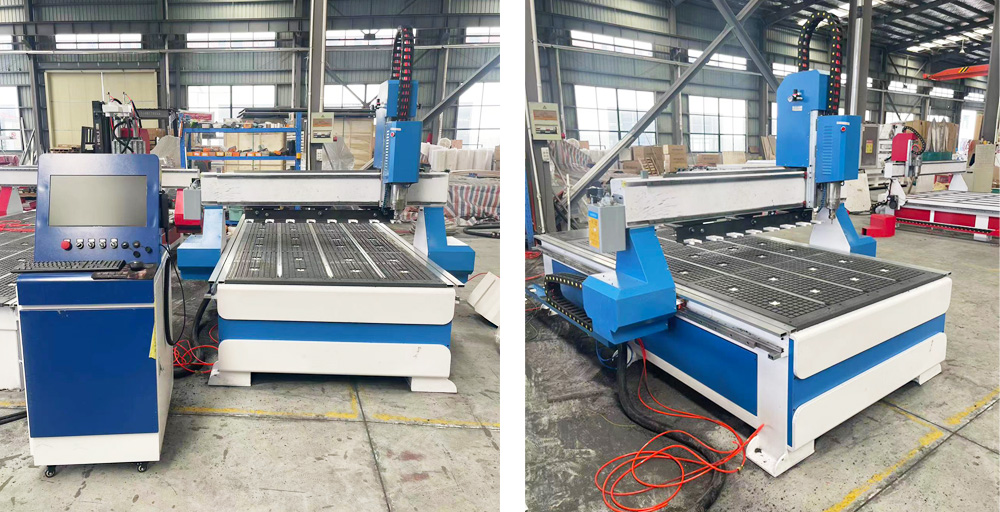

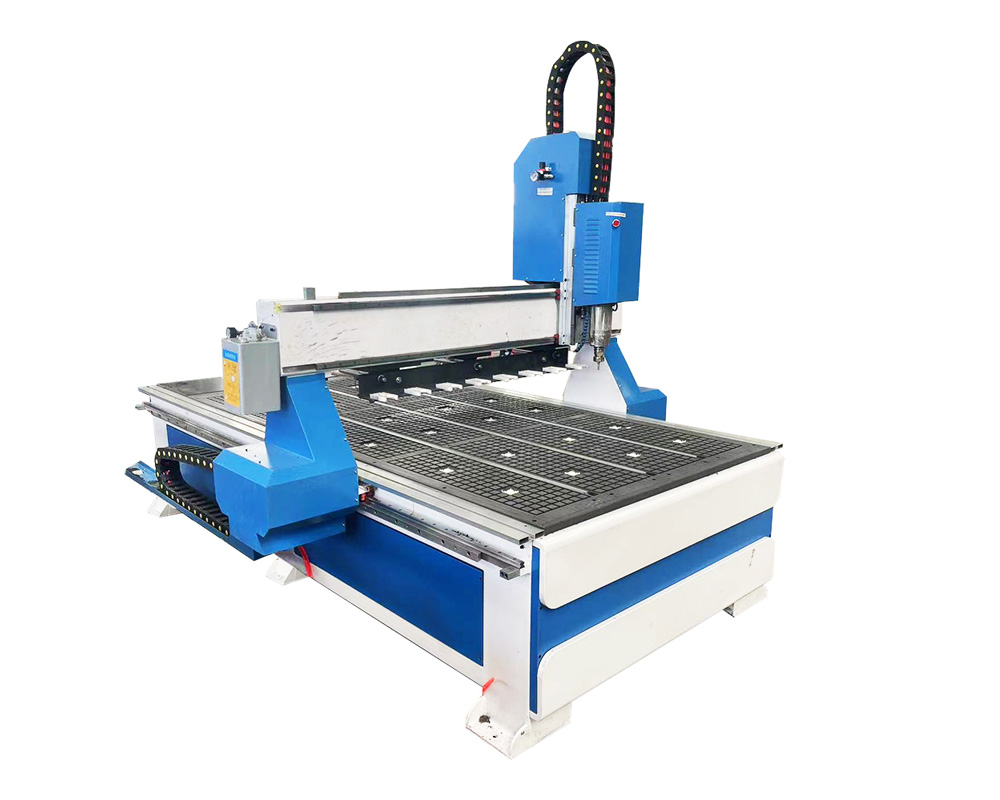

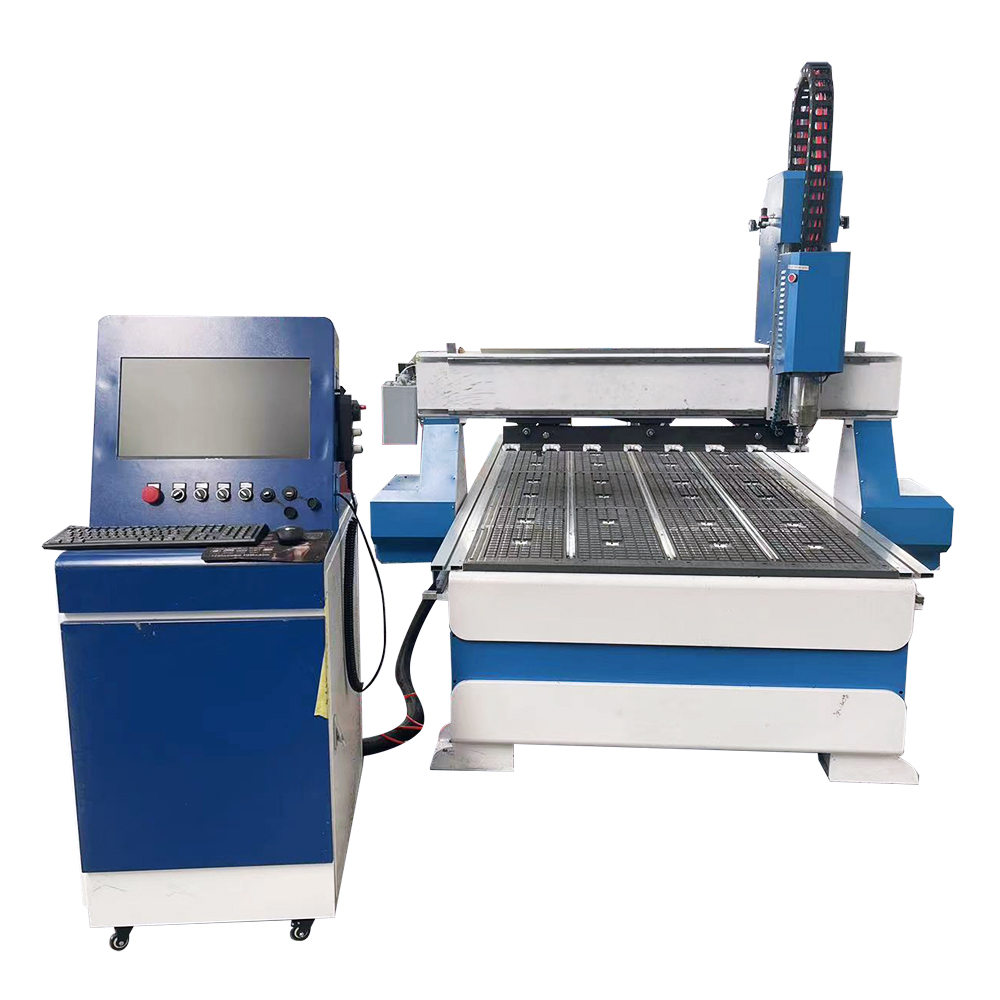

The Linear atc CNC router with tool-change can quickly change multiple tools, it have multiple applications, and automatic engraving, cutting, and punching.

Main Feature

1. Heavy-duty machine body, the whole machine is welded by steel pipes , prevent vibration and good stability.
2. 8 tools are automatically replaced, with multiple functions and fast processing speed.
3. Water-cooled tool change spindle, repeated positioning accuracy of 0.025mm, spindle speed 24000rpm, high processing accuracy and small error.
4. Taiwan high-quality linear square track, good lubrication and stable operation.
5. Partitioned vacuum adsorption table, can fix materials of different sizes.
6.Linear atc cnc router with LNC control system, Windows operation interface, simple operation.

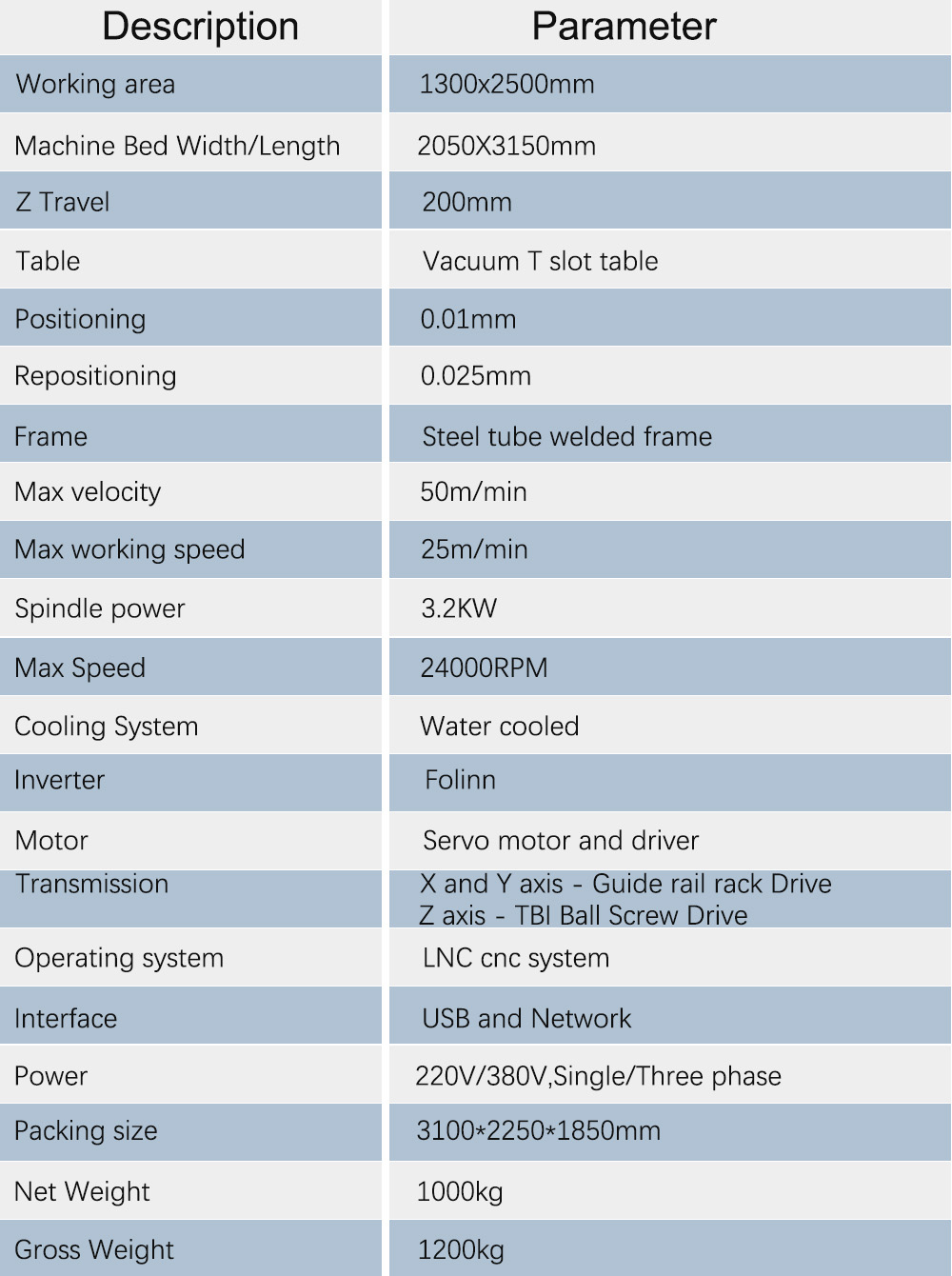

Product Parameter

Optional accessories
1. Spindle: high-power water-cooled spindle, greater processing power.
2. Rotary axis: processing cylindrical or special-shaped materials.
3. Control system: you can choose SYNTEC or Weihong control system, both of which are commonly used control systems for CNC router.

Working samples

The Linear atc cnc router can process most materials, such as wood,MDF, PVC, acrylic, horn,  hard plastics, copper and aluminum soft metals, etc. It can be used in many industries, such as furniture manufacturing industry, advertising industry, mold industry, handicraft industry, handicraft industry, etc.

Main parts

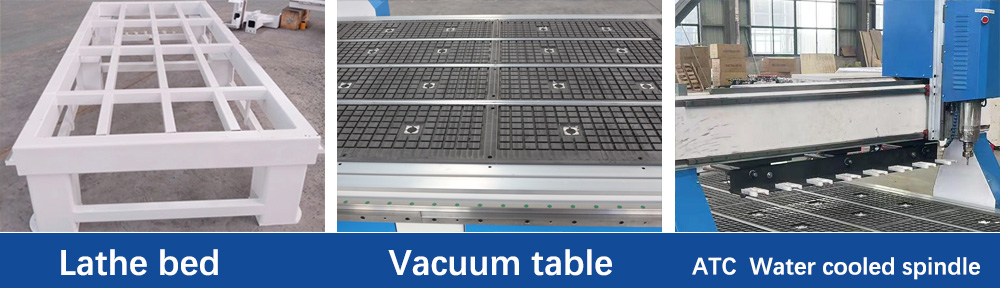

Lathe bed

The bed adopts square tube welding structure and CNC center 5-sided milling machine to increase engraving accuracy and stability.

Vacuum table
Vacuum table, the air inside the adsorption table is extracted by the vacuum pump to fix the material.

ATC spindle
8-tool automatic tool change spindle, fast tool change to complete processing, fast processing speed

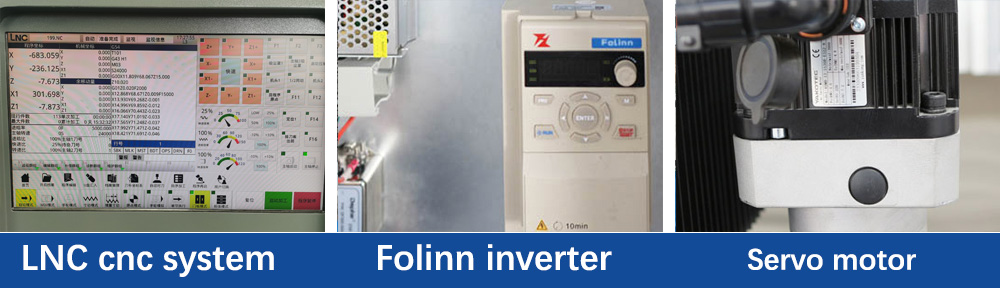

LNC control system

LNC control system, compatible with many software, USB and network input, LCD display, key operation.

Folinn inverter
Folinn inverter, used to control the speed of the spindle.

Servo motor and driver
Servo motor and driver can ensure the engraving accuracy and speed of the machine.

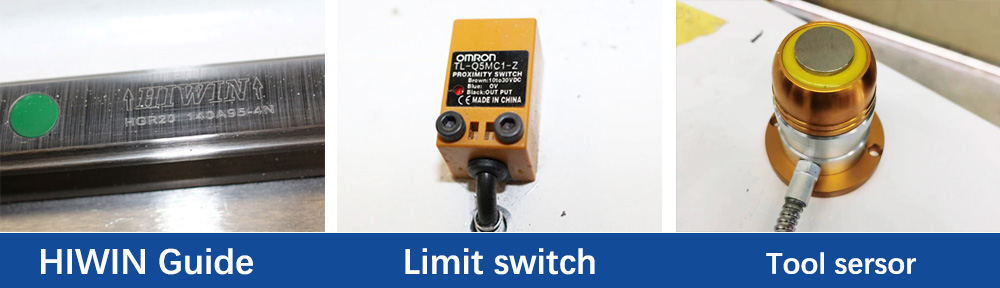

Guide rails and rack

The X-Y axis is guide rails and rack drive, Z axis ball screw drive. Taiwan 2.0 guide rails and TBI ball screws can improve the machine  processing accuracy .

Limit switch
The limit switch can control the travel of the machine to ensure safe production.

lool sensor

The tool sensor can monitor the status of the tool to ensure processing accuracy.
