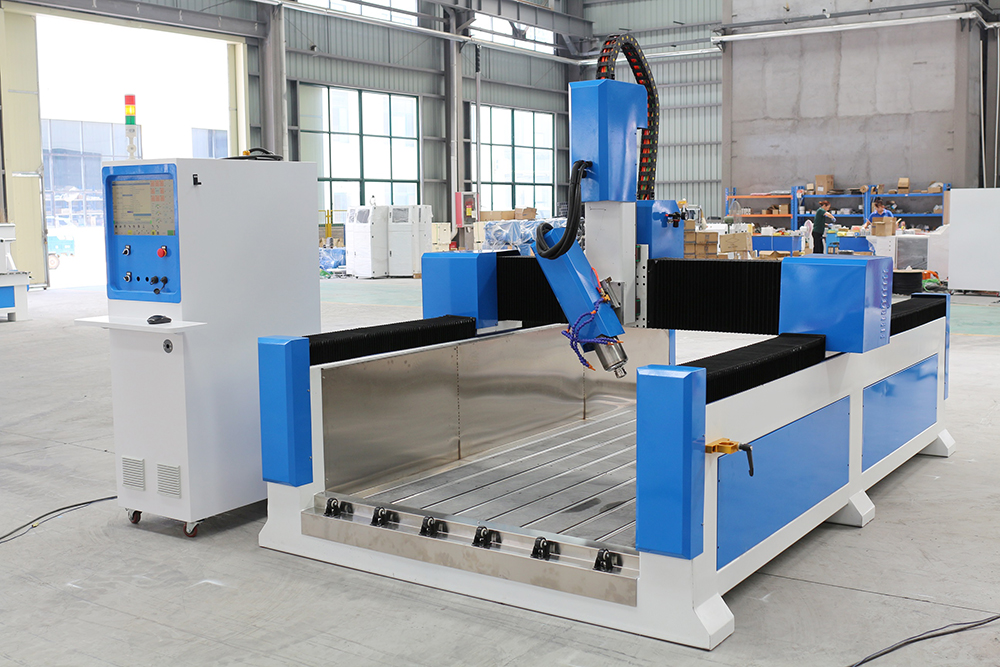

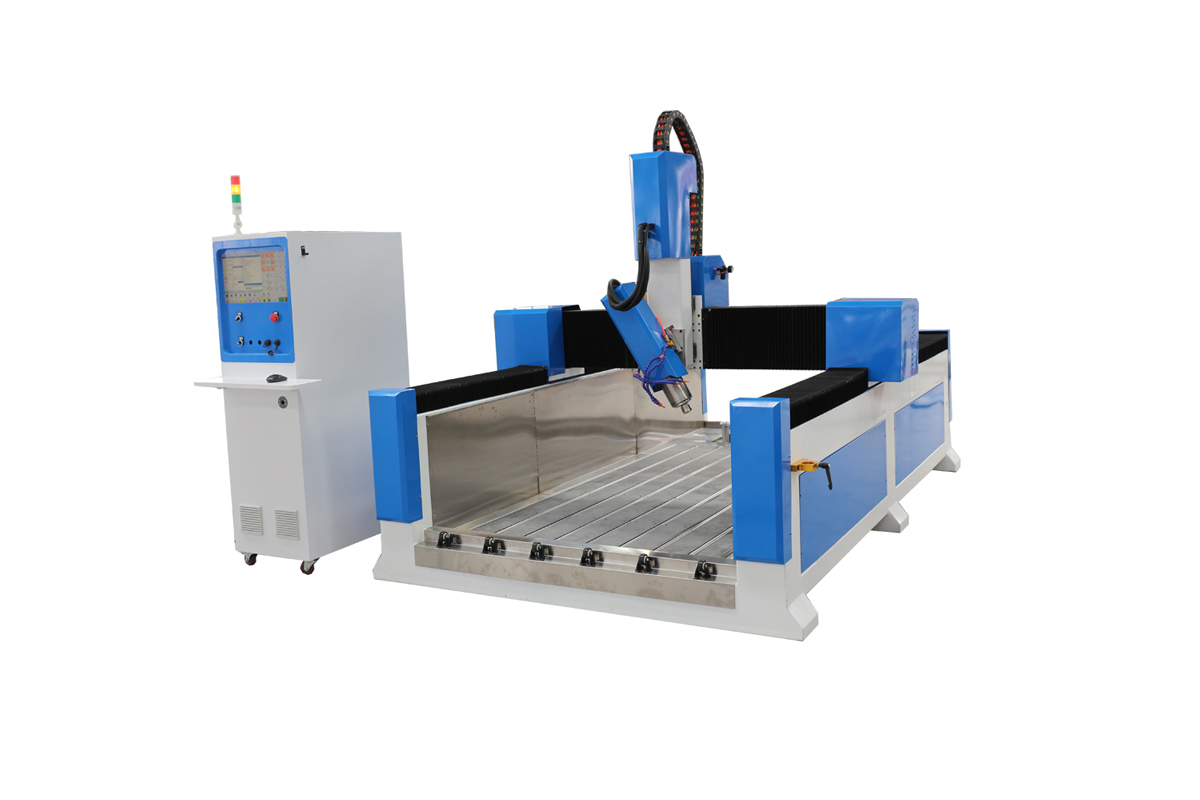

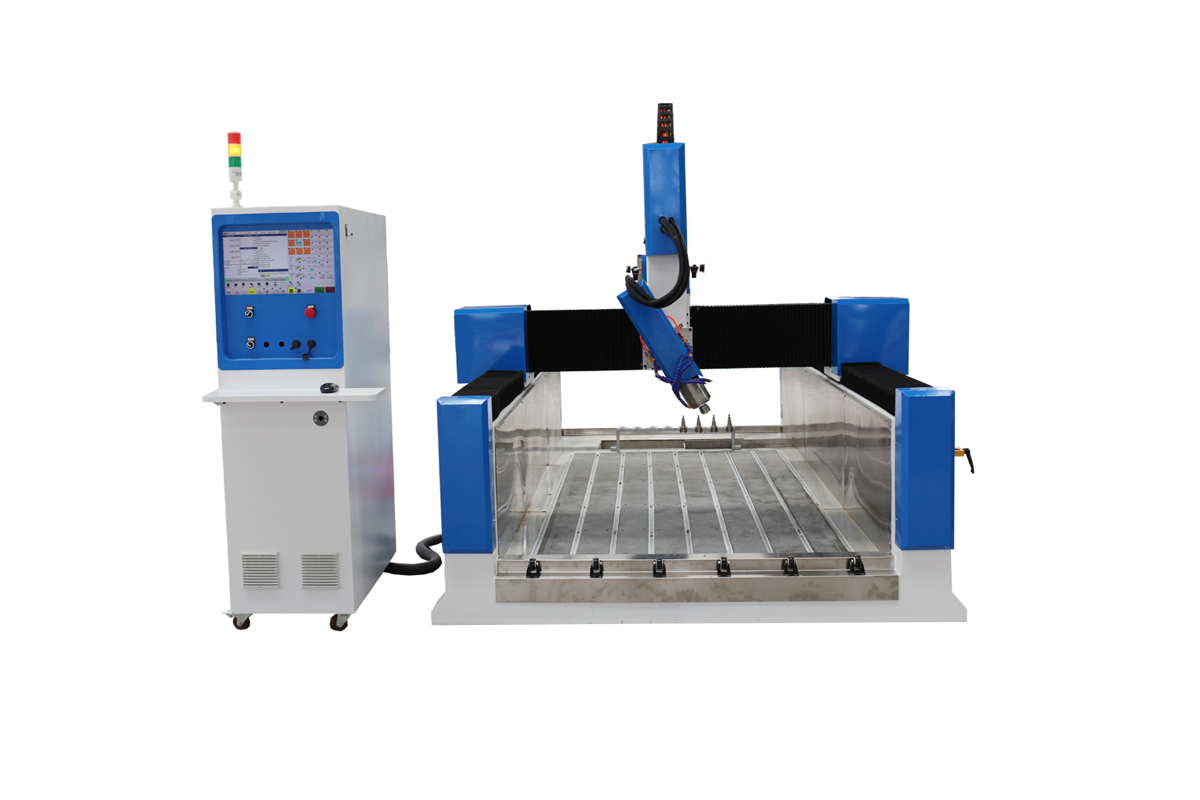

Four-axis automatic tool changing stone machine
Characteristic
1. Use CAD / ArtCAM software and others.
2. Four-axis automatic tool changing stone machine use LNC control system, To carry out rapid, smooth 3D processing,carving or cutting. Offline operation can be realized.
3.The overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table can be arbitrary processing work table material.
4. Suitable for a variety of materials processing large quantities of production.
5.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
Performance Parameter
|
number
|
Description
|
parameter
|
|
1
|
XYZ working area
|
1300*2500*600mm
|
|
2
|
Table size
|
1810*3000mm
|
|
3
|
XYZ travel positioning accuracy
|
±0.02mm
|
|
4
|
XYZ repositioning positioning accury
|
±0.03mm
|
|
5
|
Table surface
|
Aluminum T slot +PVC
|
|
6
|
grantry
|
steel
|
|
7
|
drive system X-Y axis
|
Rack
|
|
8
|
drive system Z axis
|
Ball screw
|
|
9
|
Spindle power
|
5.5KW
|
|
10
|
Max velocity
|
50m/min
|
|
11
|
Max working speed
|
25m/min
|
|
12
|
Spindle speed
|
0-24000rmp
|
|
13
|
Motor and driver
|
servo motor and drviers
|
|
14
|
Working voltage
|
AC220/380V
|
|
15
|
Command language
|
G code
|
|
16
|
Interface
|
USB
|
|
17
|
Operating system
|
LNC/SYNTEC
|
|
18
|
Flash memory
|
128
|
|
19
|
X-Y resolution
|
0.025mm
|
|
20
|
Software environment
|
Wentai type3 artcam
|
|
21
|
Running environment
|
Temperature:0-45°C
|
|
22
|
Paking size
|
3300*1900*1900mm
|
|
23
|
Net weight
|
1500 kg
|
|
24
|
Gross weight
|
1600 kg
|
Details Images
 |
The Four-axis automatic tool changing stone machine
lathe adopts thickened large square tube welded, reinforced without deformation, reliable performance,durable. |

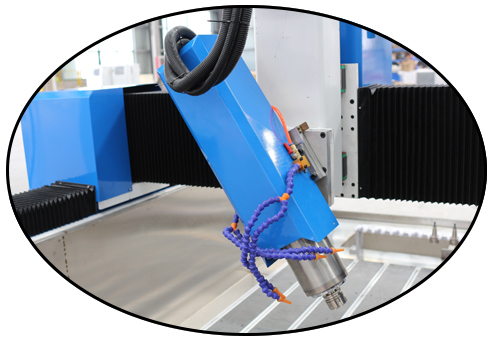

| 5.5KW ATC water cooling spindle , low noise ,vigorous working strength and long time mass processing |
 |
 |

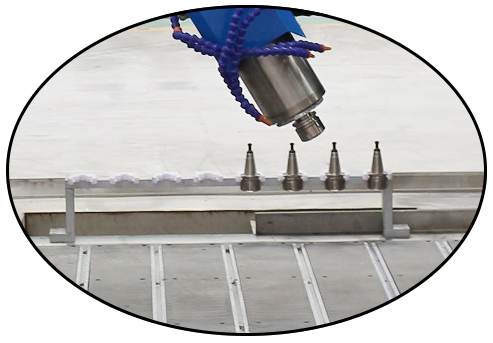

Back linear auto tool changing with 8 pcs tools ,save time and labour. |

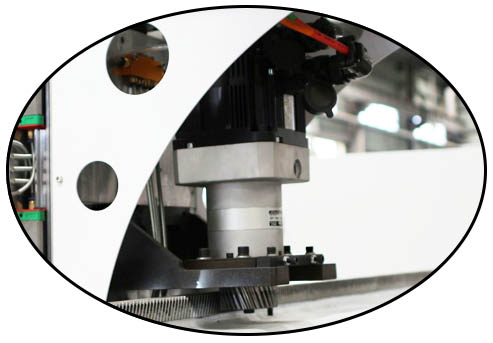

| Servo motor, with large power for stone processing, more efficient. |  |
 |
The function of the frequency converter is mainly to adjust the speed of the motor. |

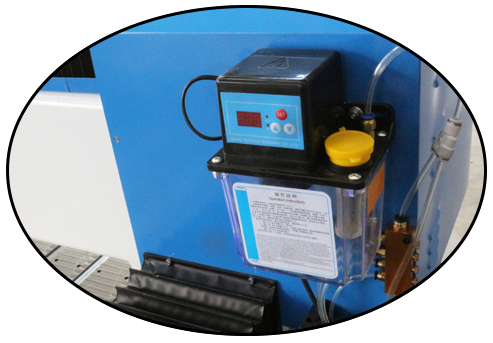

| Electric lubricator, easy to operate, maintenance free |  |
Application of the Four-axis automatic tool changing stone machine
1. Tombstone carving: Carving text, patterns, commemorative walls, etc. on tombstones.
2. Architectural decoration: making architectural decoration materials, such as cultural stones, background walls, etc.
3. Craft gifts: Stone crafts such as seals, sculptures, etc.
