Characteristic

1.High accuracy ball bearing guide screw of taiwan,minimize the slit.

2.Imported linear rail,self lubricating glide.

3.Our routers have the features of recarving after stop and the power failure may be restored.

4.Unique preservation way of the zero point.

5.Use for long time and no distortion.

6.This type is suitable for engraving Metal,Stone,wood etc.

Performance parameter

Number	Description	Parameter
1	XYZ working area	600*900*150mm
2	Table size	740*1120mm
3	XYZ travel positioning accuracy	±0.01mm
4	XYZ repositioning positioning accury	±0.01mm
5	Gantry	cast-aluminium
6	lathe structure	casting iron
7	drive system X-Y axis	Ball screw
8	drive system Z axis	Ball screw
9	Spindle power	2.2KW
10	Max velocity	8m/min
11	Max working speed	6m/min
12	Spindle speed	0-24000rmp
13	work mode	Stepper
14	Working voltage	AC220V
15	Command language	G code
16	Interface	USB
17	Operating system	Ncstudio/DSP/Mach3
18	Flash memory	128
19	X-Y resolution	﹤0.025mm
20	Software environment	Wentai type3 artcam
21	Running environment	Temperature:0-45℃
22	Packing size	1550*1140*1150mm
23	Net weight	200kg
24	Gross weight	220kg

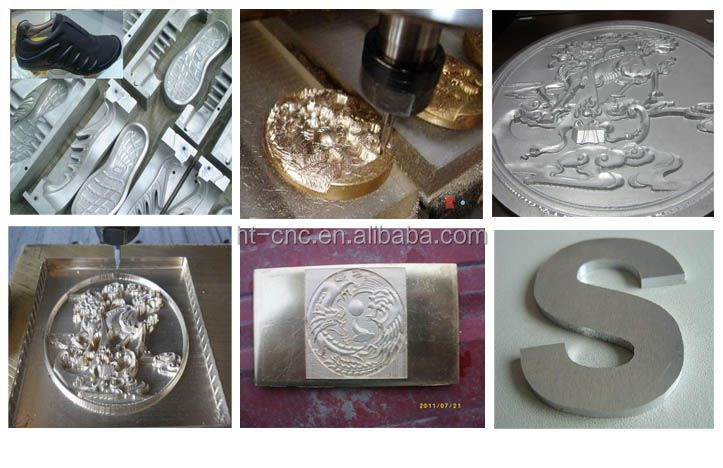

Working Samples：

Producing Process：

Company Profile：

FAQ：

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
