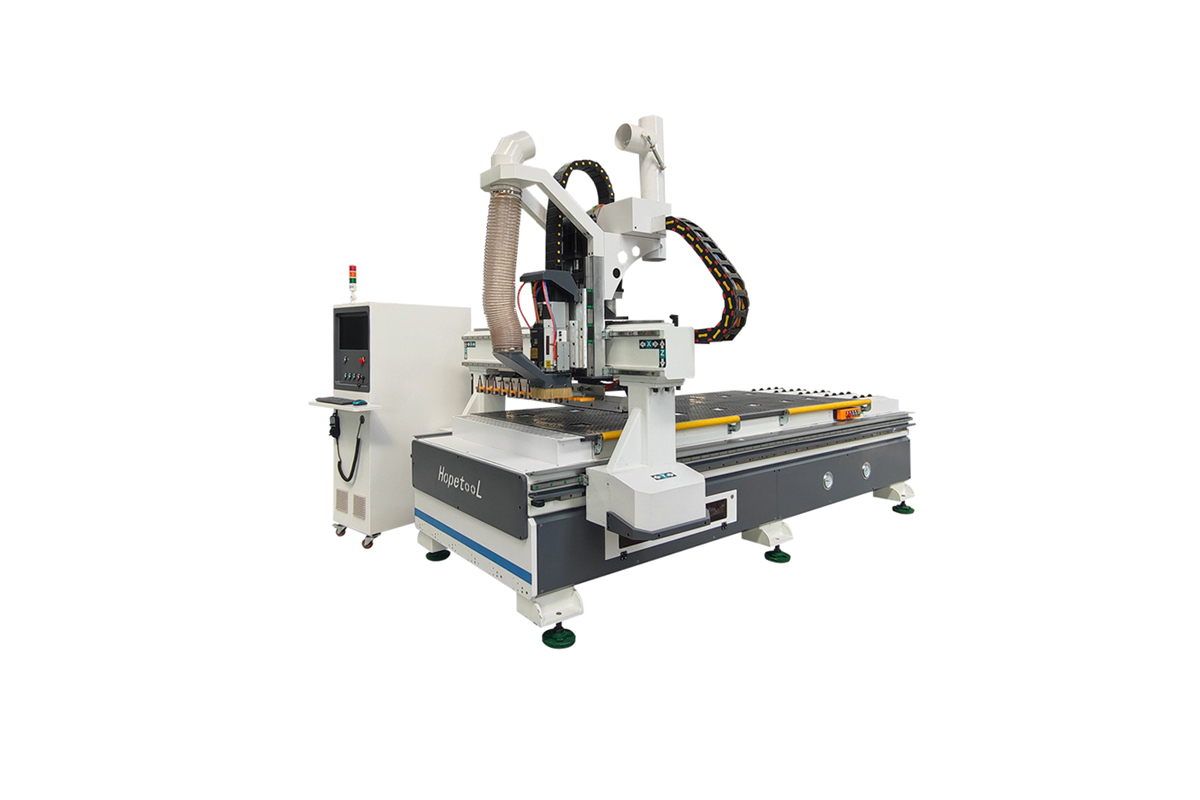

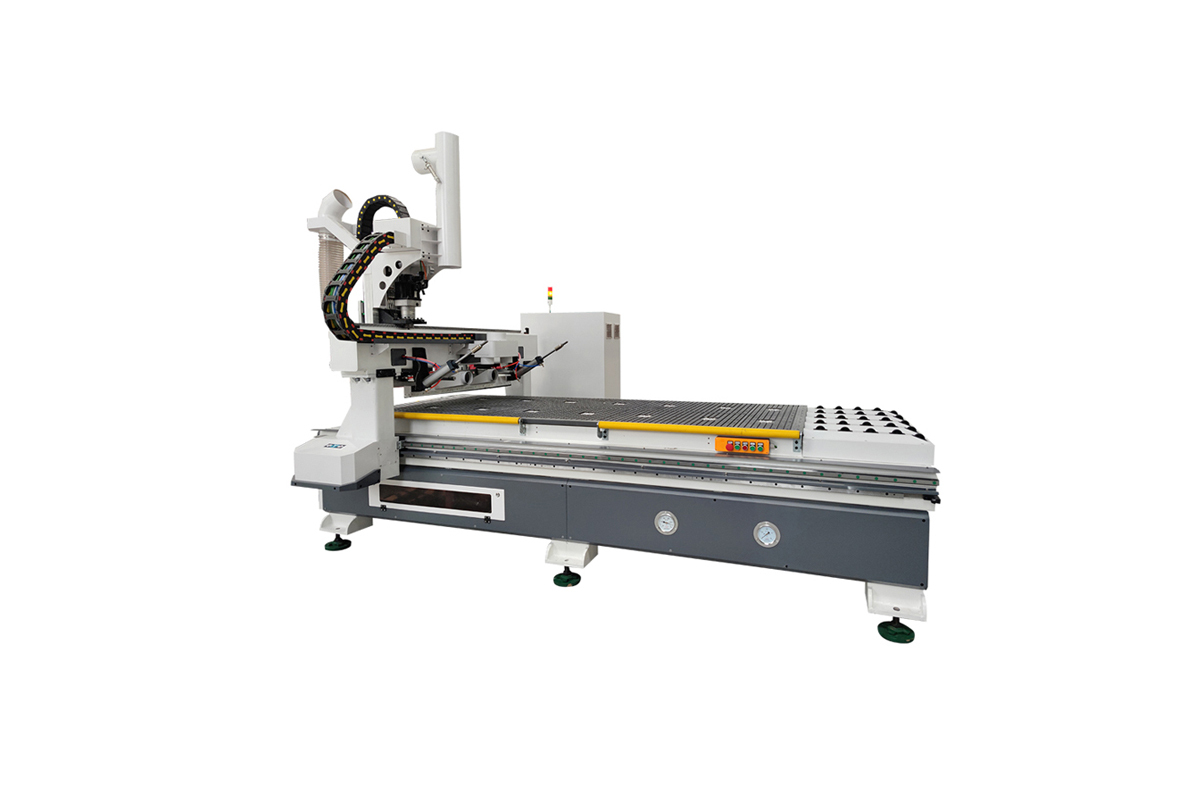

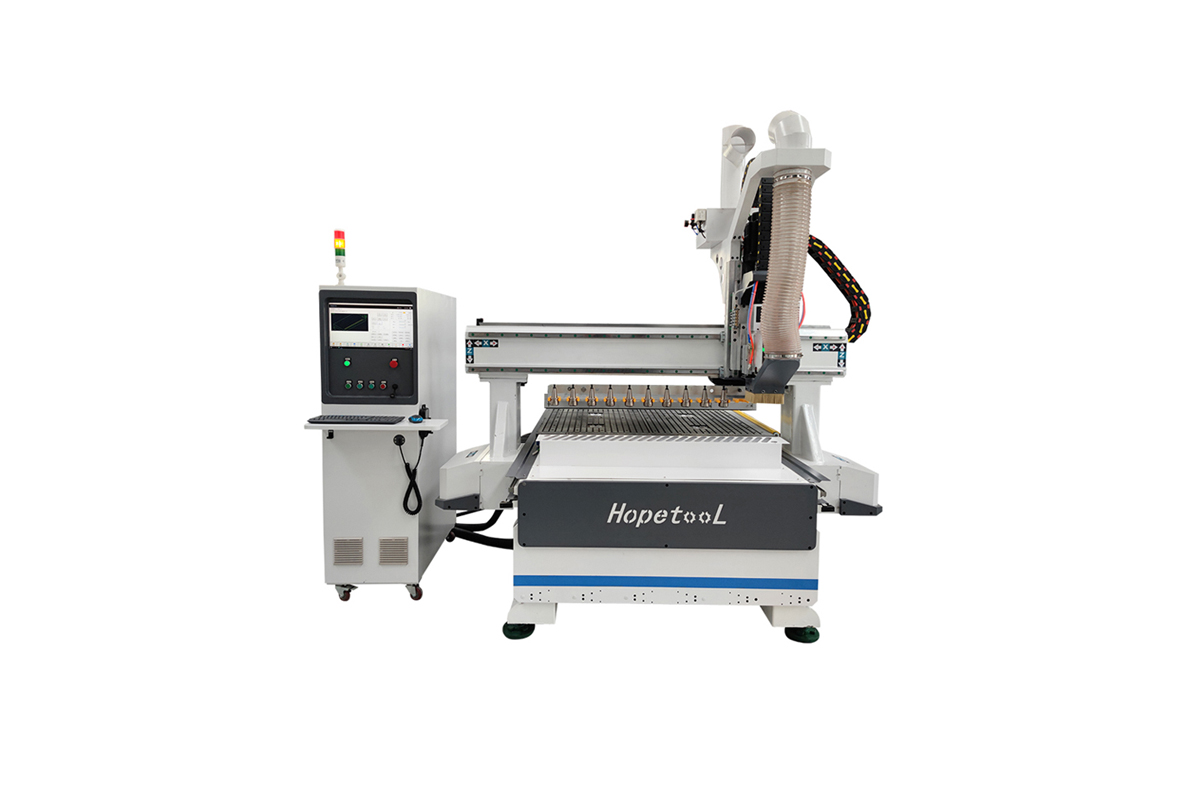

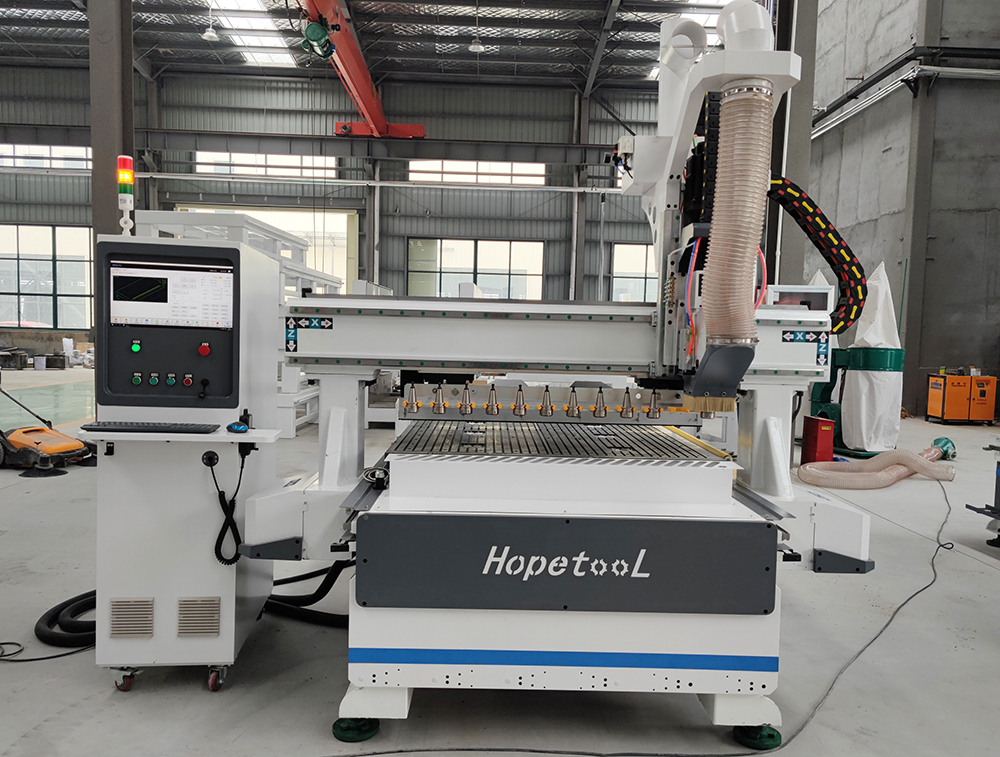

cnc wood router with tool changer
Characteristic:
1)cnc wood router with tool changer X-Y axis adopt Taiwan Guide rail and rack drive, speed is fast.
2)Adopt Yako servo motor and driver,high precision, stable operation
3)Air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high precision and long lifetime.
4)Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel structure
5)6 zones vaccum table, it is a professional wood door making and furniture making machine.
Performance parameter:
|
Description
|
parameter
|
|
XYZ working area
|
1300*2500*200mm
|
|
Table size
|
1440X3040mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
X,Y,Z Repositioning Positioning Accuracy
|
±0.03mm
|
|
Lathe Structure
|
Welded Strucutre
|
|
X, Y Structure
|
Gear Wheel Transmission, Shaft Linear Bearings
|
|
Z Structure
|
Ball Screw, Shaft Linear Bearings
|
|
Max.Consume Power
|
20KW
|
|
Max.Speed
|
0-60000mm/min
|
|
Max.Working Speed
|
0-25000mm/min
|
|
Spindle Power Motor
|
9KW ATC spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Working Mode
|
Servo system
|
|
Working Voltage
|
AC380V/50/60Hz , 3PH
|
|
Command
|
G Code, *uoo, *mmg, *plt
|
|
Operating System
|
SYNTEC or Weihong System
|
|
Interface
|
Internet line
|
|
Flash Memory
|
512M
|
|
Collet
|
ER32
|
|
X,Y Working Delicacy
|
<0.01mm
|
|
Software
|
Type3 software, Wentai software,Artcam software
|
|
Running circumstance
|
Temperature: 0°C~45°C,
Relative humidity: 30%~75% |
|
Packing Size
|
4000x2150x2200 mm
|
|
Net Weight
|
2000KG
|
|
Gross Weight
|
2300KG
|
Product Detail
 |

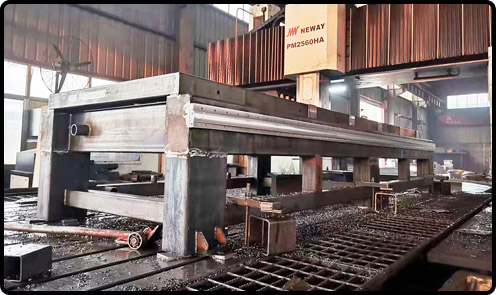

Bed was milled by 5 axis CNC central machine,make sure the machine with high precision. |

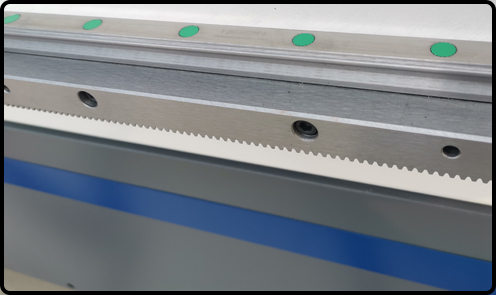

| High quality guide Hiwin brand,make sure with high accuracy. |  |
 |

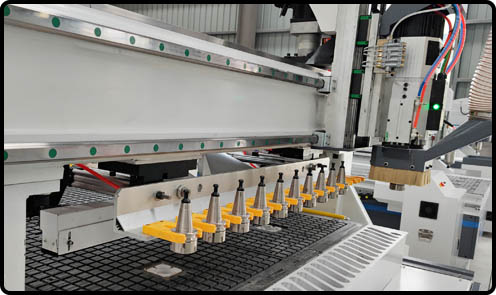

With linear type ATC 12 pcs . |

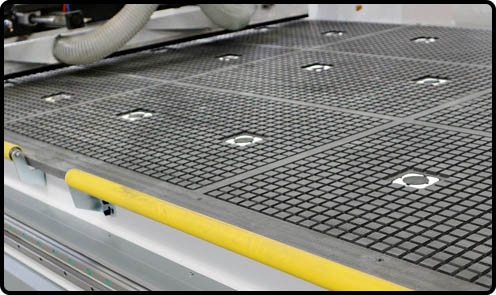

| With vacuum table ,can fix material tightly. |  |
 |

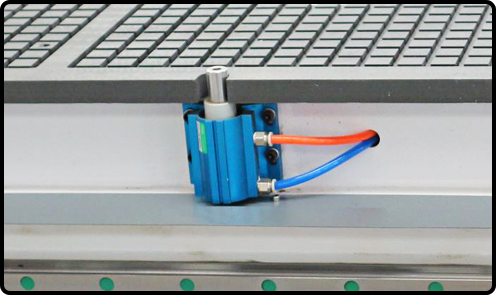

With positioning cylinder for locate the material sheet. |

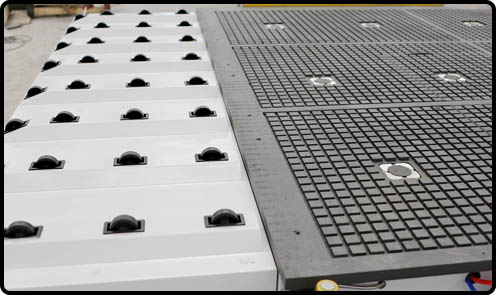

| Have feeding roller on back of table,so it easy when put the material on the table. |  |
 |

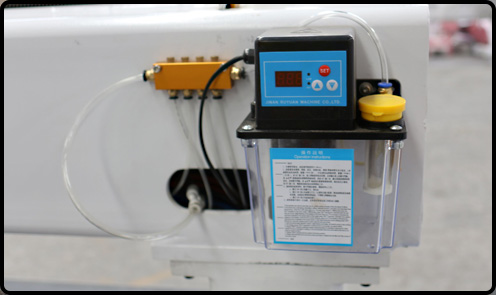

Digital automatic lubrication system for lubricat guide easily. |

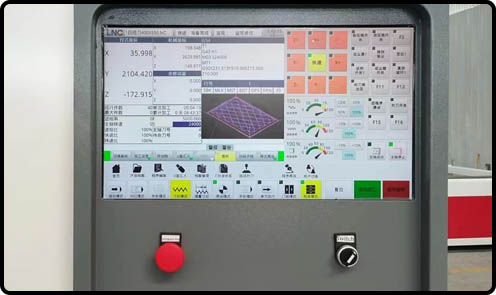

| LNC or Syntec control system with disply. |  |
 |

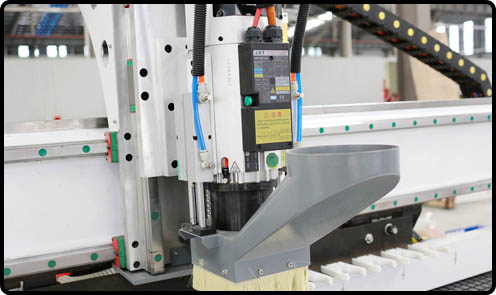

High quality 9KW air cooling spindle. |

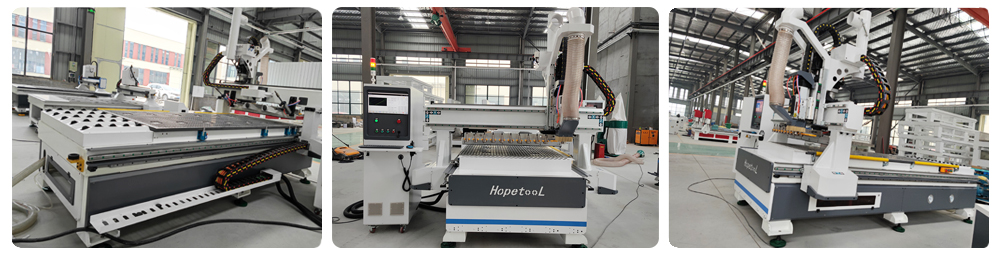

Working Samples
The application fields of cnc wood router with tool changer are very wide, mainly including woodworking industry, advertising industry, mold industry, etc.
