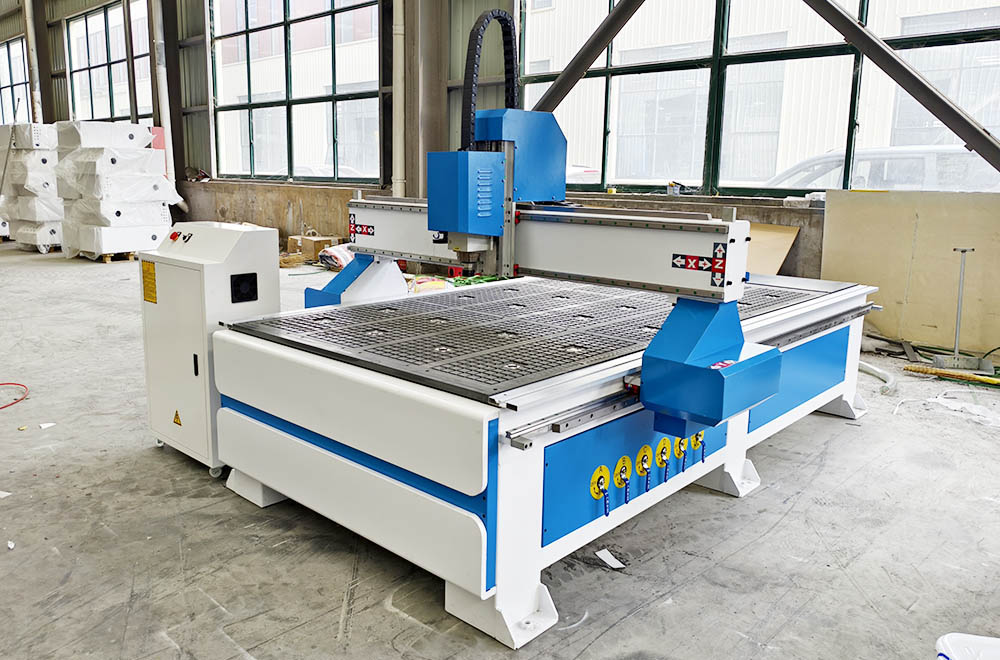

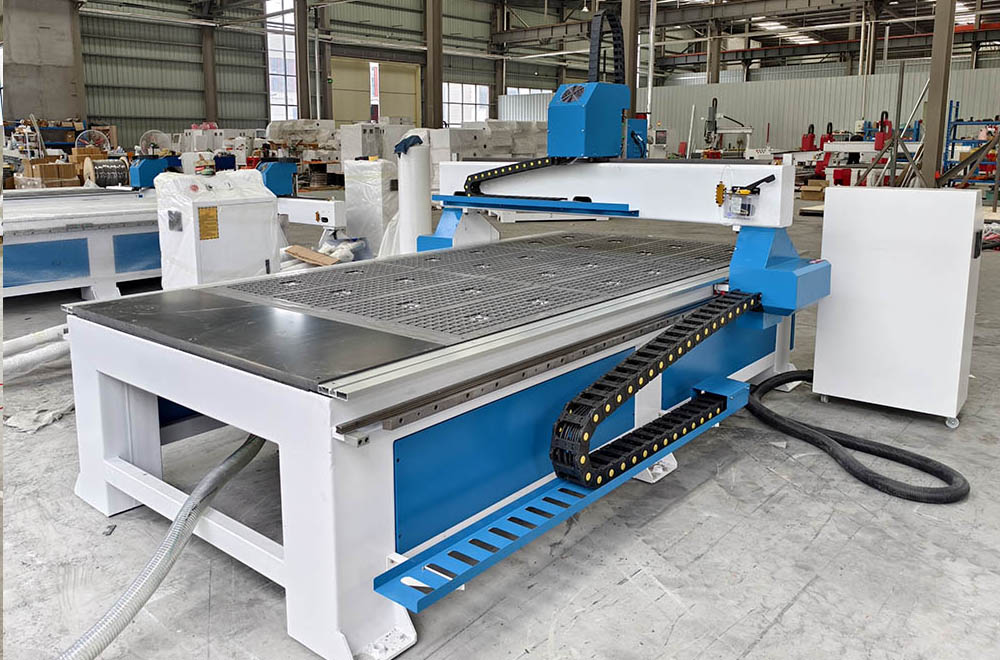

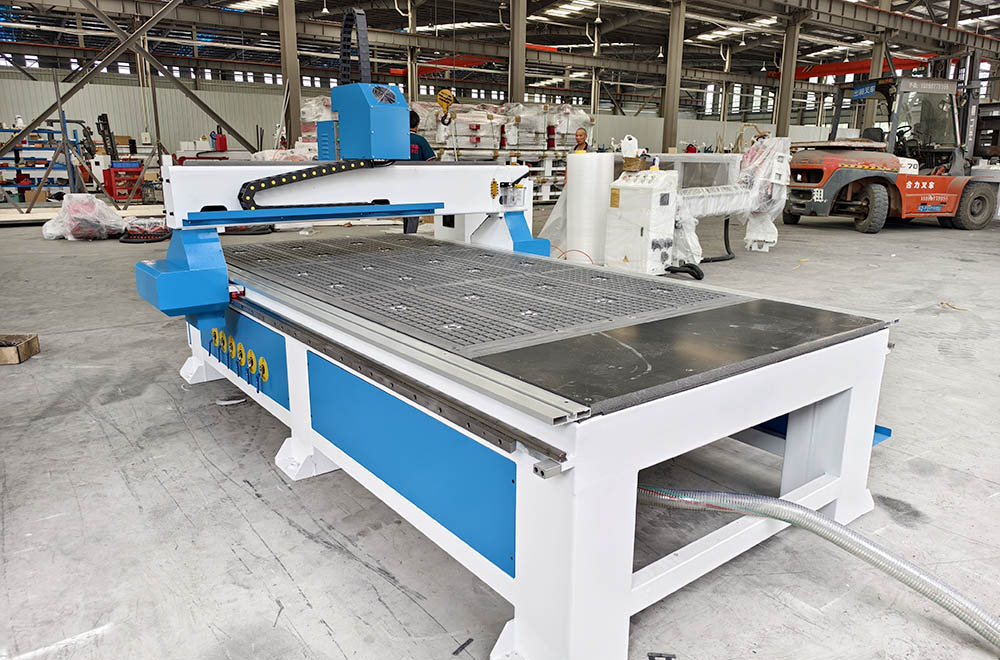

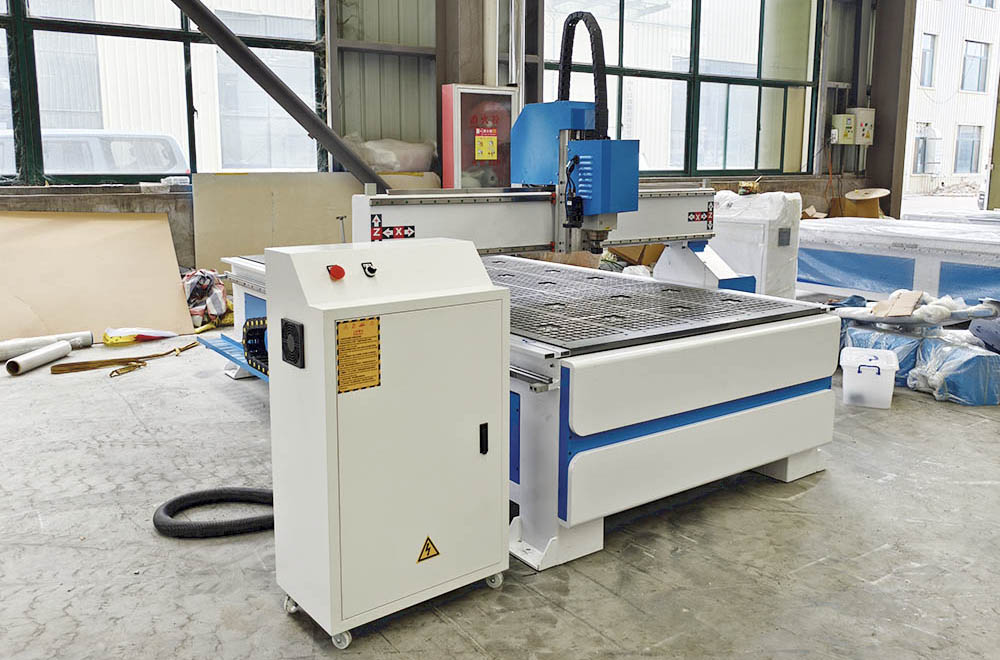

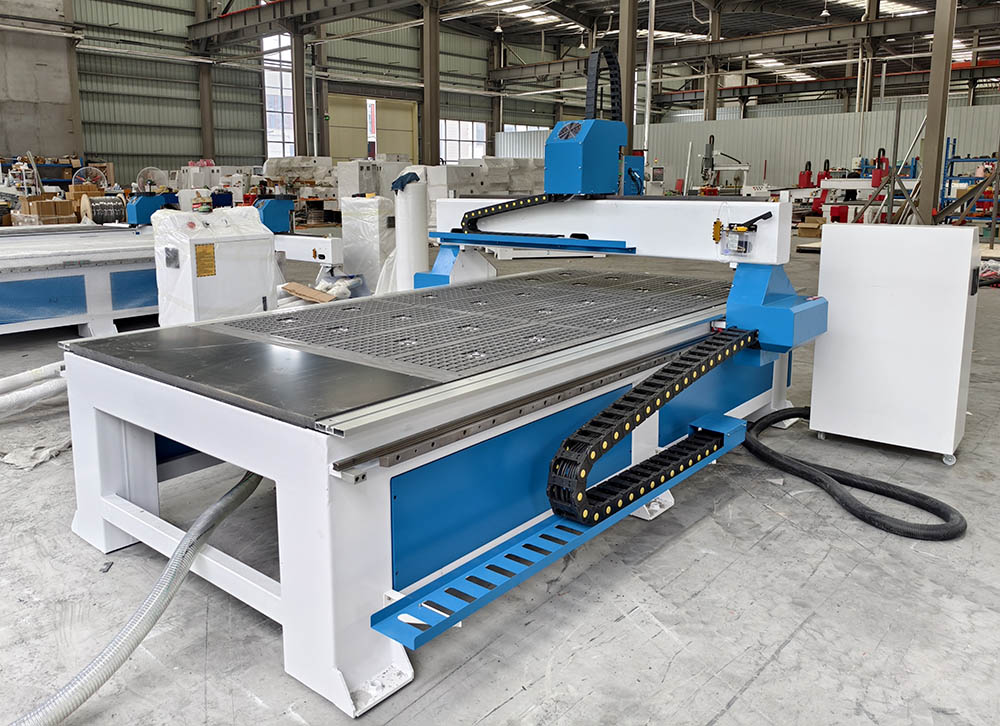

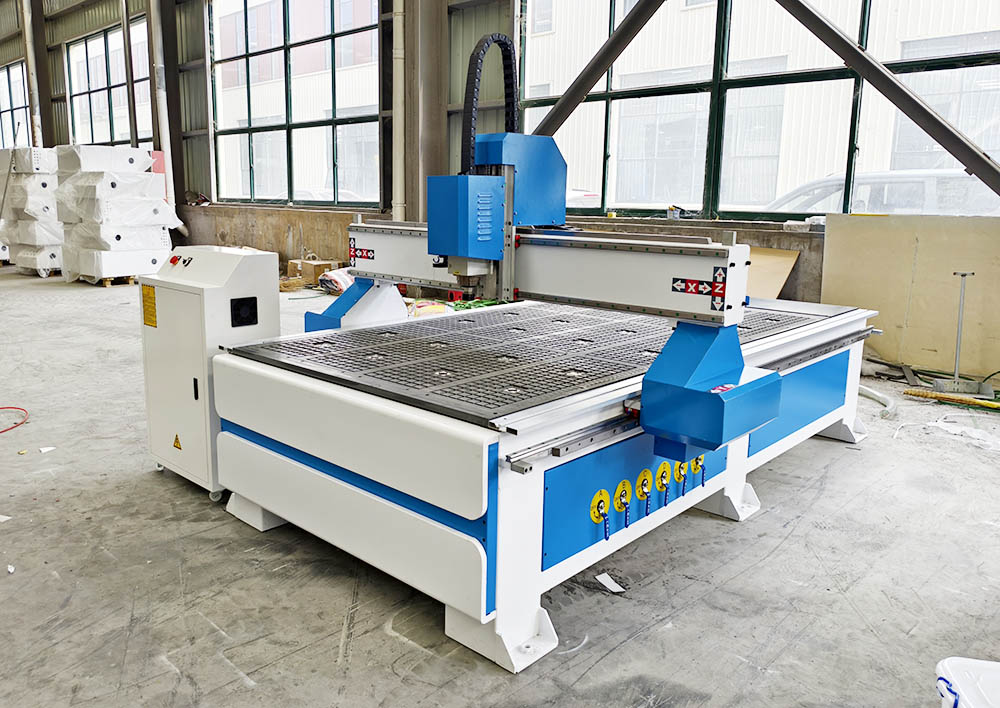

cnc router with ccd camera
- The cnc router with ccd camera machine is high-precision CNC machine tool, and its main function is to automatically perform contour detection and three-dimensional engraving. The biggest feature of this machine is its very high precision.
- During the processing, the machine can automatically detect the material, detect it through the high-resolution CCD camera and adjust the processing path in real time, so as to ensure the uniformity and consistency of the processing accuracy.
 |
The machine lathe bed
Our cnc router with ccd camera machine bed adopts square tube welding, and the frame structure can ensure better stability of the machine, so that the machine can process materials without shaking, and also improve the service life of the machine. |

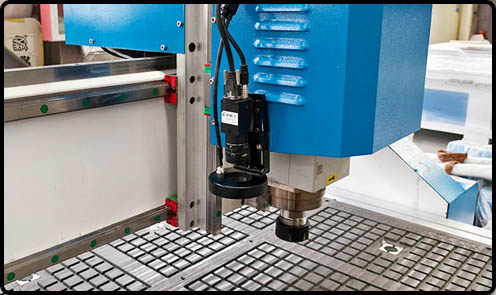

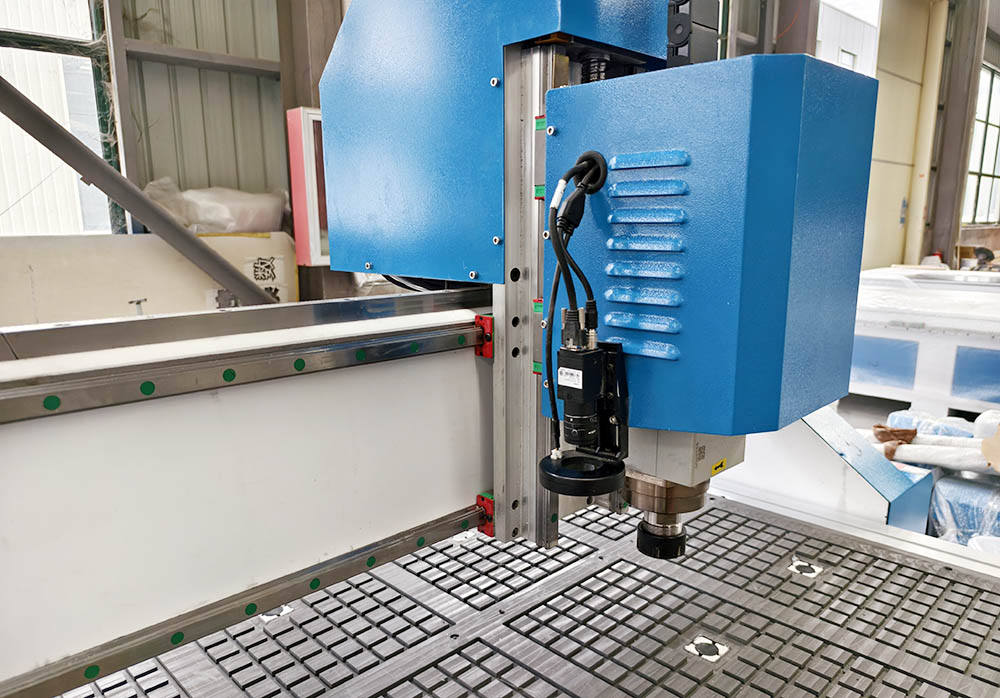

| The 3.2KW water cooled spindle with CCD camera
The water-cooled spindle operates smoothly and is easy to start, and With CCD camera, it suitable for cutting the printed material |
 |
 |

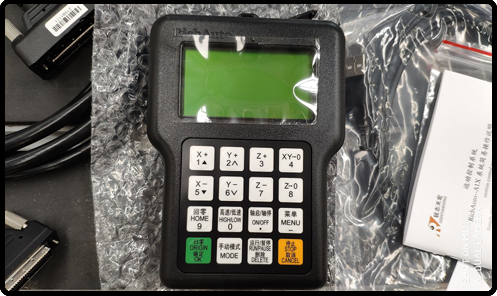

DSP or Mach3 or Weihong (Ncstudio)control system
The operation of the DSP controller control system is simpler, and it can be controlled even if you are not familiar with the machine. and you can choose one from the control system |
| HIWIN Guide rails and racks for X,Y axis
Guide rails and racks can make the motor of the machine run more accurately and have higher machining accuracy. |
 |
 |
Z-axis ball screw
Z-axis ball screw controls spindle motion，it has low friction loss,
high transmission efficiency, and high precision
|

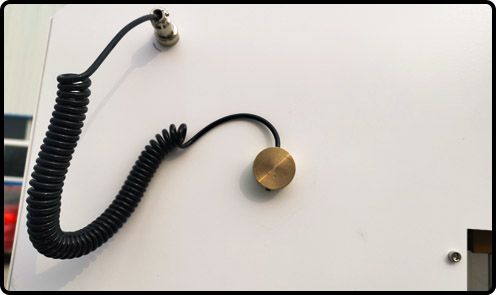

| Tool collimator
Connect the tool setter to the control board. When the tool enters, contact the tool setting personnel to align the tool |
 |
 |

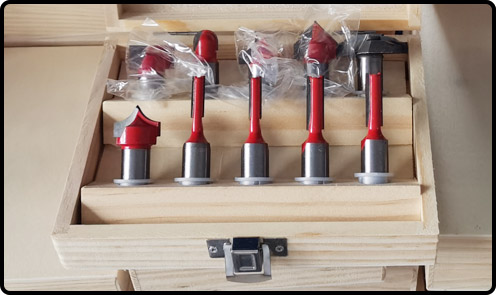

The tools for the cnc router machine
Commonly used cutting tools for CNC engraving machines, choose different tools according to different paths |

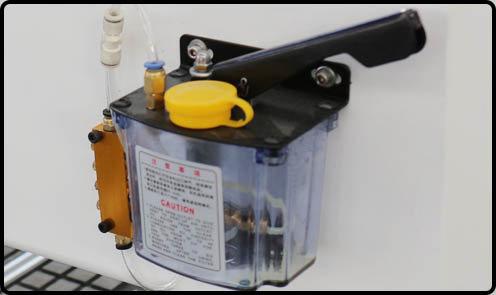

| Manual lubricator
The manual lubricator of the CNC engraving machine is very convenient, flexible, and easy to maintain. |
 |
 |
Vacuum table with T-SLOT6 zones vaccum table can absorb different sizes and different shaped materials tightly
|
Optional Accessories ：
Dust collector：The main function of the dust collector for CNC wood router machine is to purify the air, extend the machine’s lifespan, and improve work efficiency
Rotary axis：The rotary axis is mainly used for 3D carving, such as Roman columns, art statues, decorations, etc
Servo Motor：If you have high precision requirements, you can choose servo motor. Servo motor have higher precision and performance
