cnc router for metal and stone
Video Player
00:00
00:00
Characteristic
1.high accuracy ball bearing guide screw of taiwan,minimize the slit.
2.imported linear rail,self lubricating glide.
3.our routers have the features of recarving after stop and the power failure may be restored.
4.unique preservation way of the zero point.
5.use for long time and no distortion.
6.this type is suitable for engraving Metal,Stone,wood etc.
2.imported linear rail,self lubricating glide.
3.our routers have the features of recarving after stop and the power failure may be restored.
4.unique preservation way of the zero point.
5.use for long time and no distortion.
6.this type is suitable for engraving Metal,Stone,wood etc.
 |
 |
Performance Parameter
|
number
|
Description
|
parameter
|
|
1
|
XYZ working area
|
600*900*100mm
|
|
2
|
Table size
|
740*1120mm
|
|
3
|
XYZ travel positioning accuracy
|
±0.01mm
|
|
4
|
XYZ repositioning positioning accury
|
±0.025mm
|
|
5
|
Gantry
|
cast-aluminium
|
|
6
|
lathe structure
|
casting iron
|
|
7
|
drive system X-Y axis
|
Ball screw
|
|
8
|
drive system Z axis
|
Ball screw
|
|
9
|
Spindle power
|
2.2KW
|
|
10
|
Max velocity
|
8m/min
|
|
11
|
Max working speed
|
6m/min
|
|
12
|
Spindle speed
|
0-24000rmp
|
|
13
|
work mode
|
Servo motor |
|
14
|
Working voltage
|
AC220V/380V
|
|
15
|
Command language
|
G code
|
|
16
|
Interface
|
USB
|
|
17
|
Operating system
|
LNC controller
|
|
18
|
Flash memory
|
128
|
|
19
|
X-Y resolution
|
0.025mm
|
|
20
|
Software environment
|
Wentai type3 artcam
|
|
21
|
Running environment
|
Temperature:0-45°C
|
|
22
|
Packing size
|
1550*1140*900mm
|
|
24
|
Gross weight
|
1200kg
|
Main Parts
 |

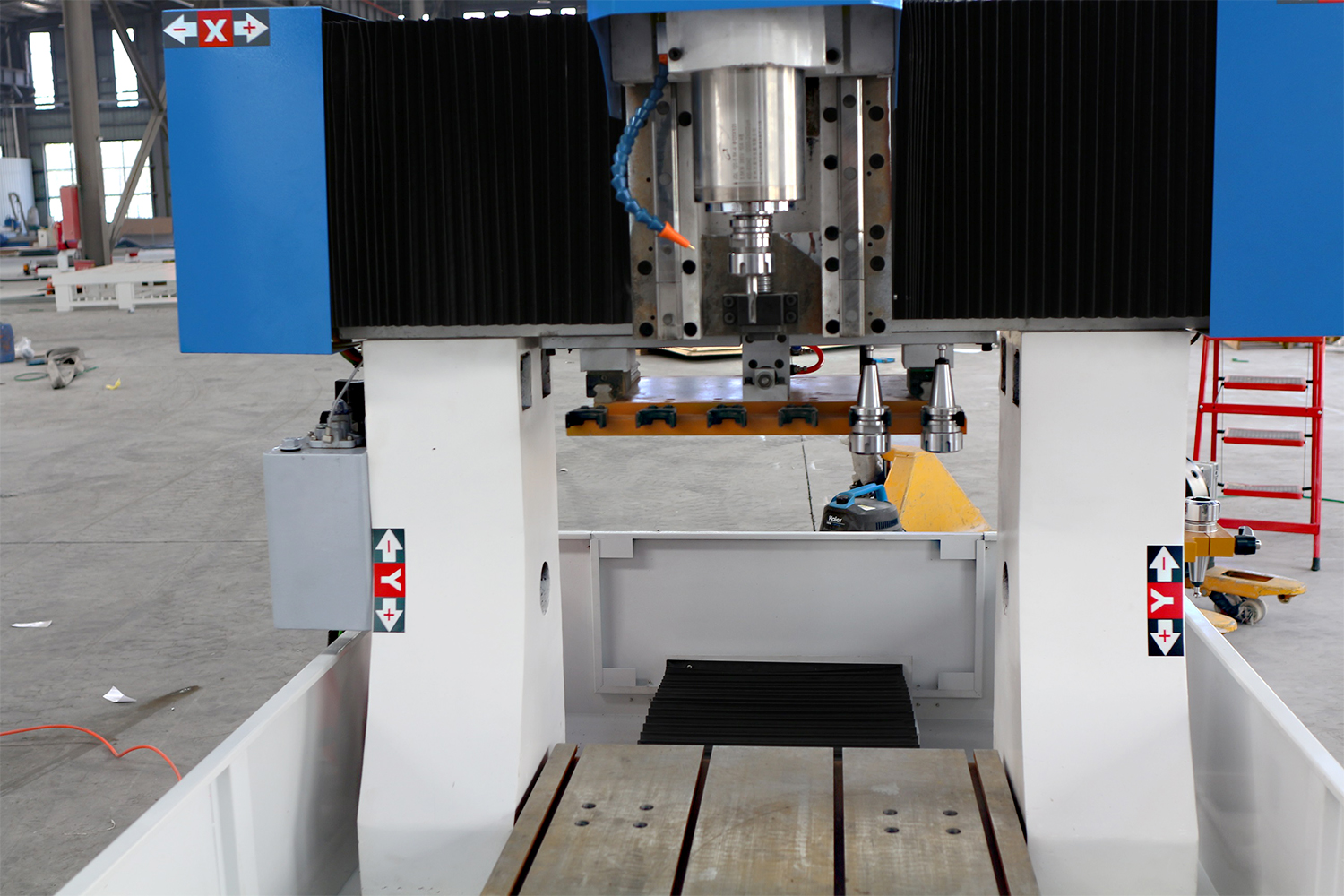

1、The 5.5kw automatic tool changing spindle is controlled by a CNC system to achieve fast and reliable tool changing.
2、Dust proof for X axis and spindle |
 |

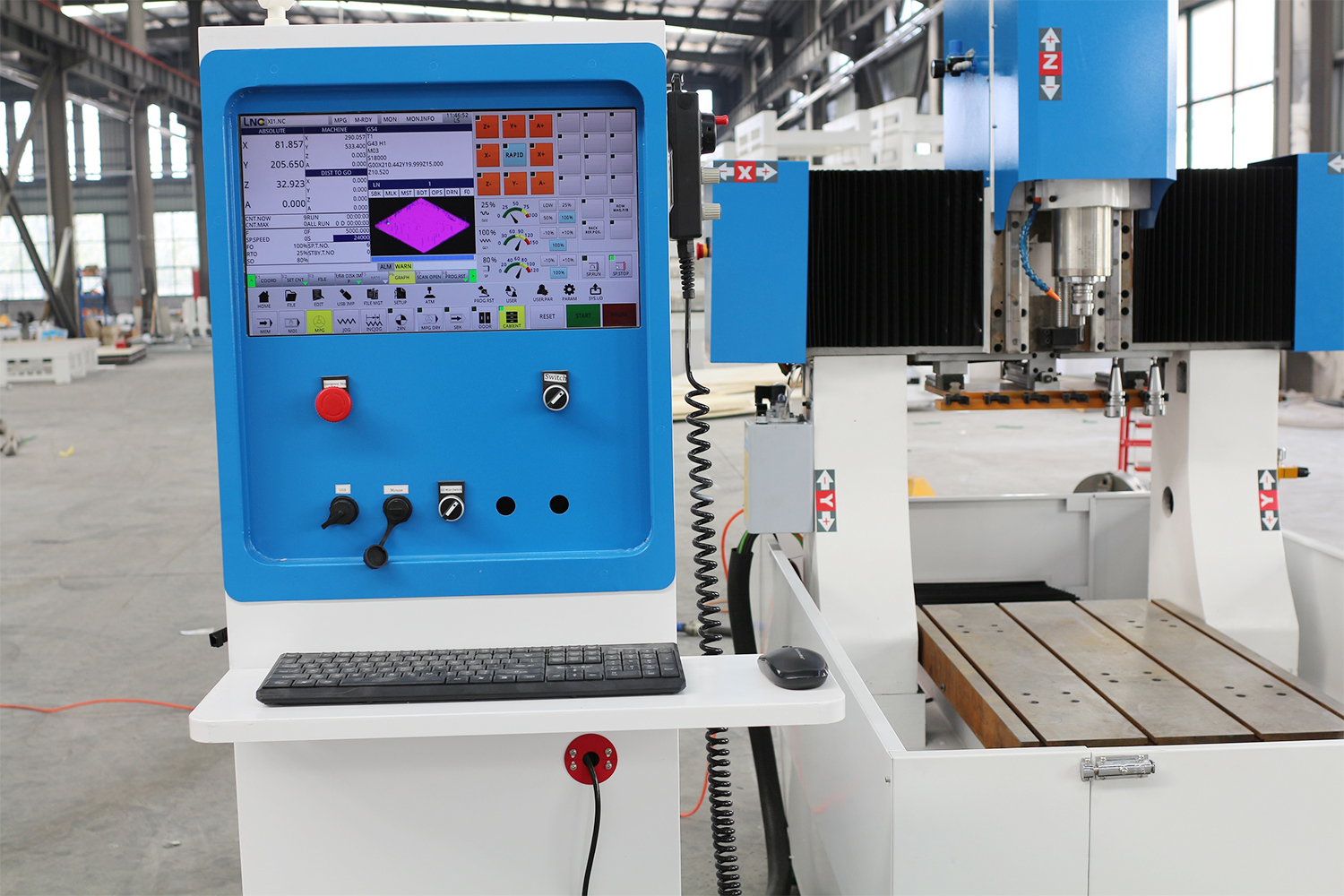

1、LNC controller，Easy to operate.
2、Servo drive and motor, fast processing speed, smooth operation |
 |

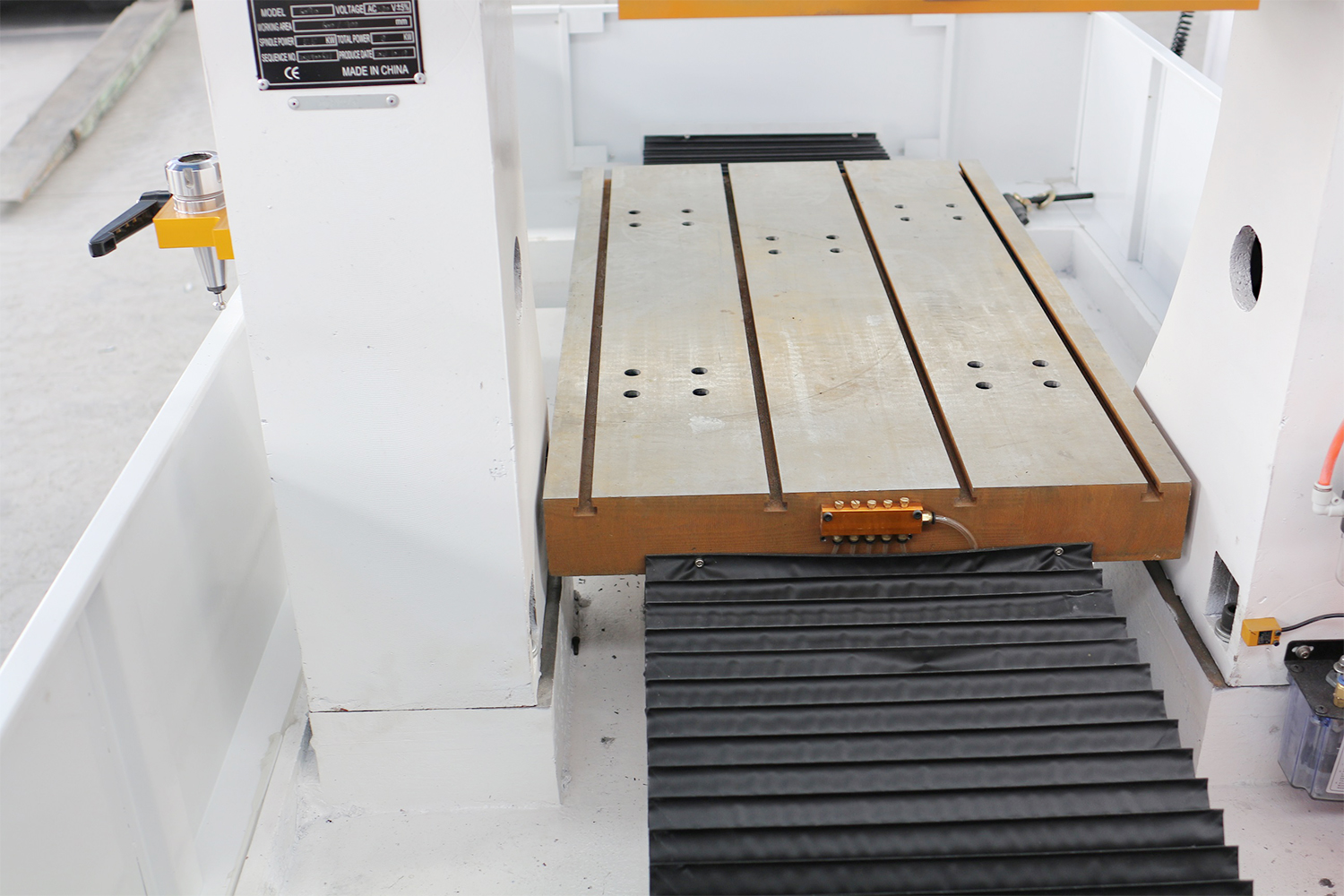

1、 Movable tabletop,More flexible during processing
2、Three axis ball screw transmission method, high precision, easy maintenance |

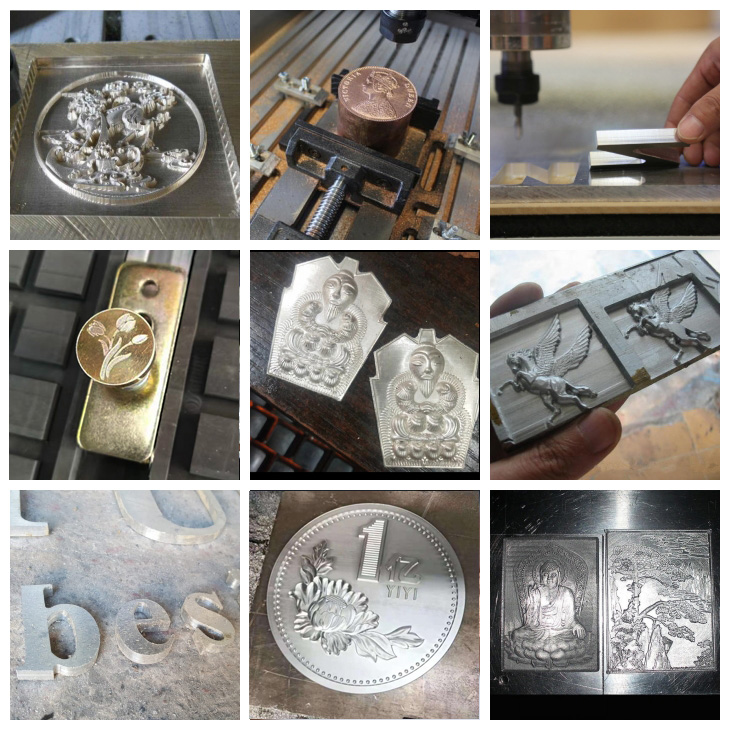

Working Samples
Producing Process
FAQ
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
