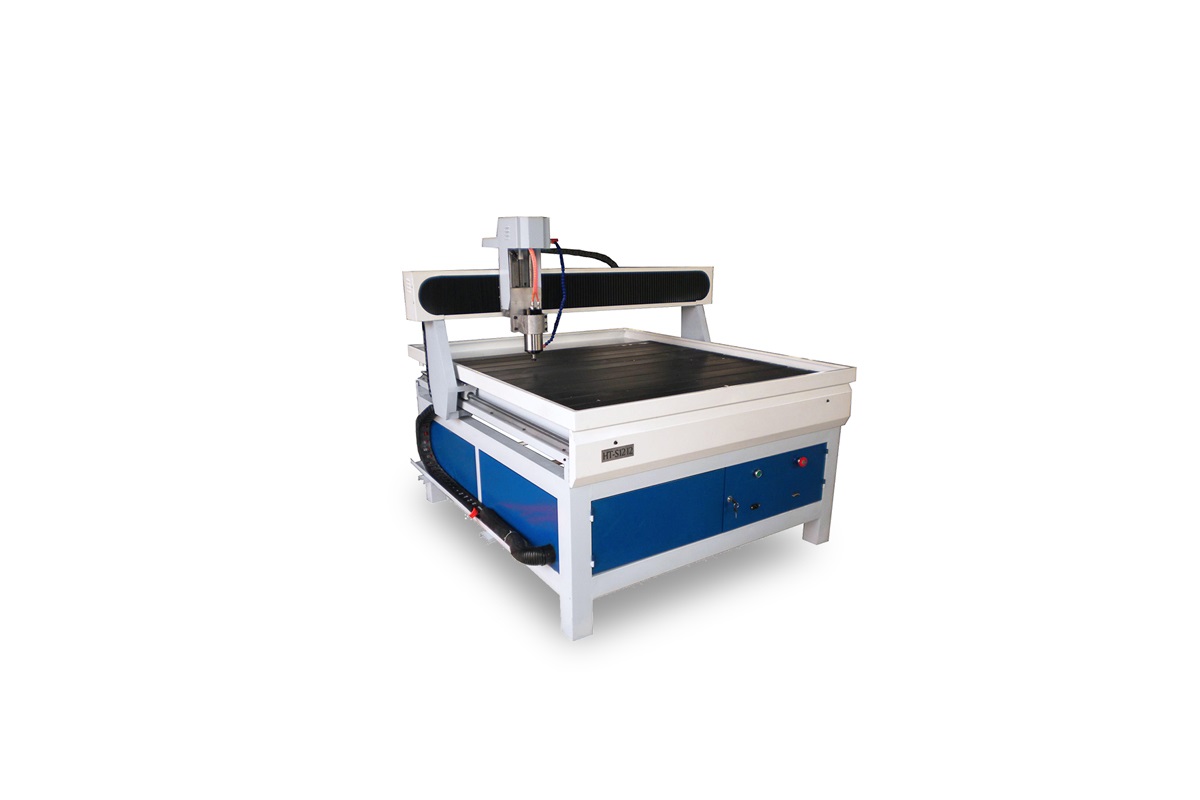

Performance parameter

Number	Description	Parameter
1	XYZ working area	1200*1200*150mm
2	Table size	1300*1500mm
3	XYZ travel positioning accuracy	±0.01mm
4	XYZ repositioning positioning accury	±0.01mm
5	Table surface	Aluminum molding
6	Lathe structure	Cast iron
7	drive system X-Y axis	Ball screw
8	drive system Z axis	Ball screw
9	Spindle power	2.2KW
10	Max velocity	8m/min
11	Max working speed	6m/min
12	Spindle speed	0-24000rmp
13	work mode	Stepper
14	Working voltage	AC220V
15	Command language	G code
16	Interface	USB or parallel port
17	Operating system	Ncstudio/DSP/Mach3
18	Flash memory	128
19	X-Y resolution	﹤0.025mm
20	Software environment	Ucancam, Type3, Artcam
21	Running environment	Temperature:0-45℃
22	Paking size	1480*1650*1350mm
23	Net weight	300kg
24	Gross weight	350kg

Working Samples：

Producing Process：

FAQ：

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
