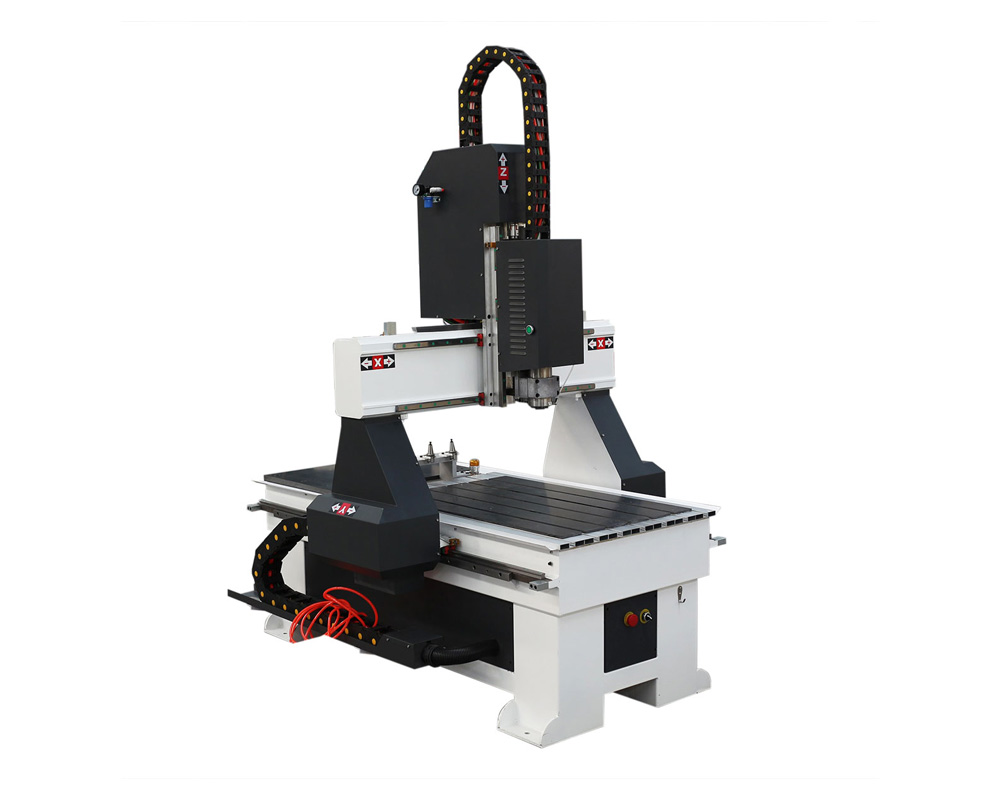

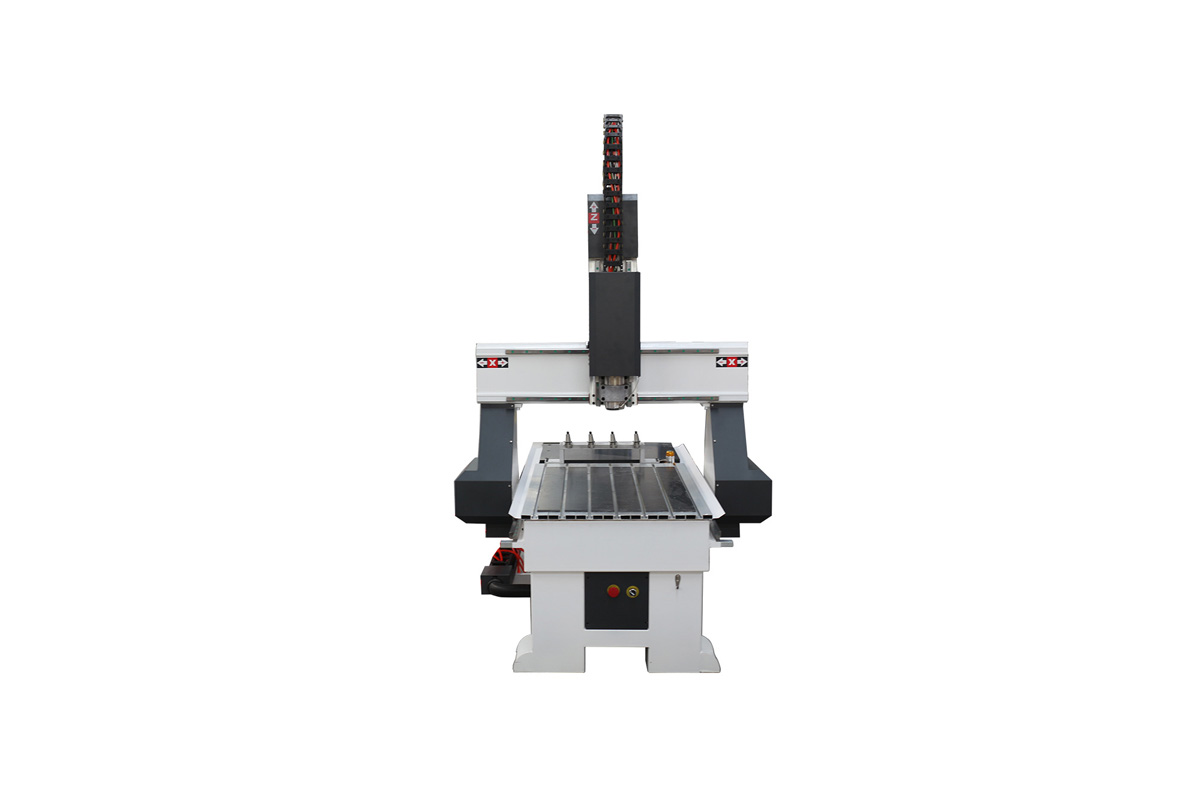

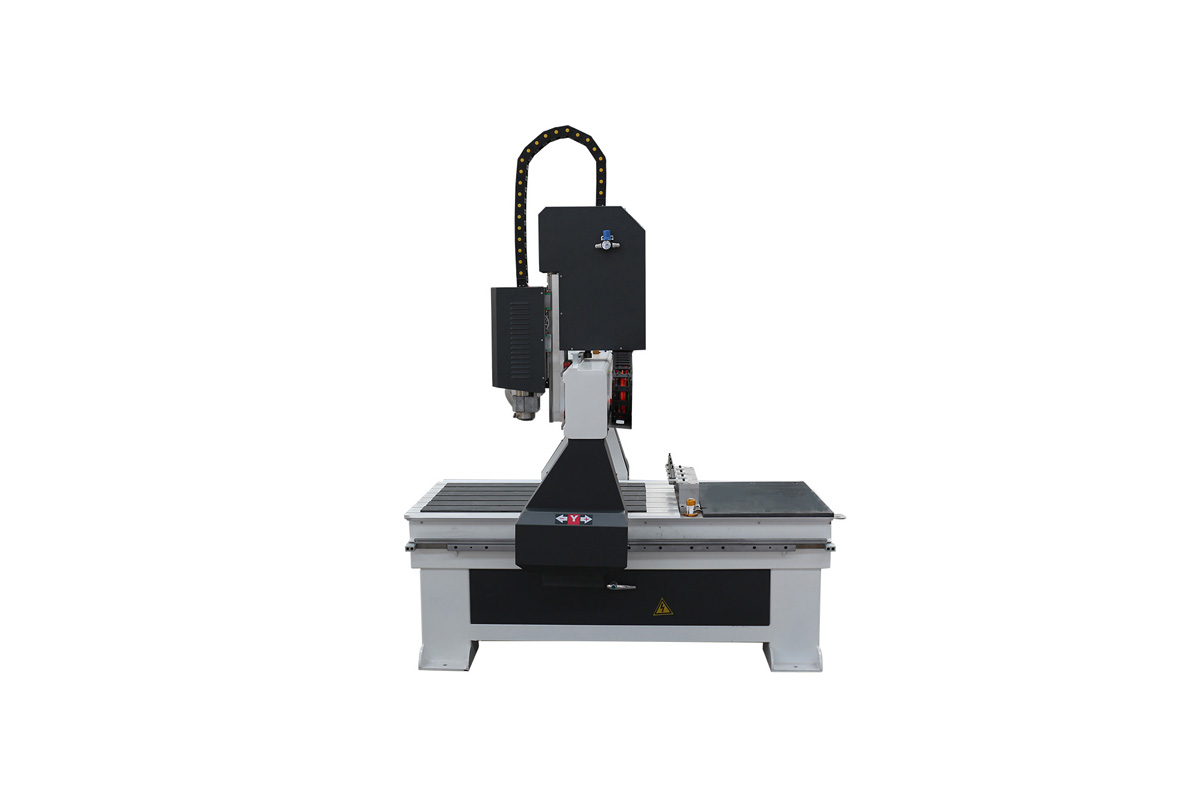

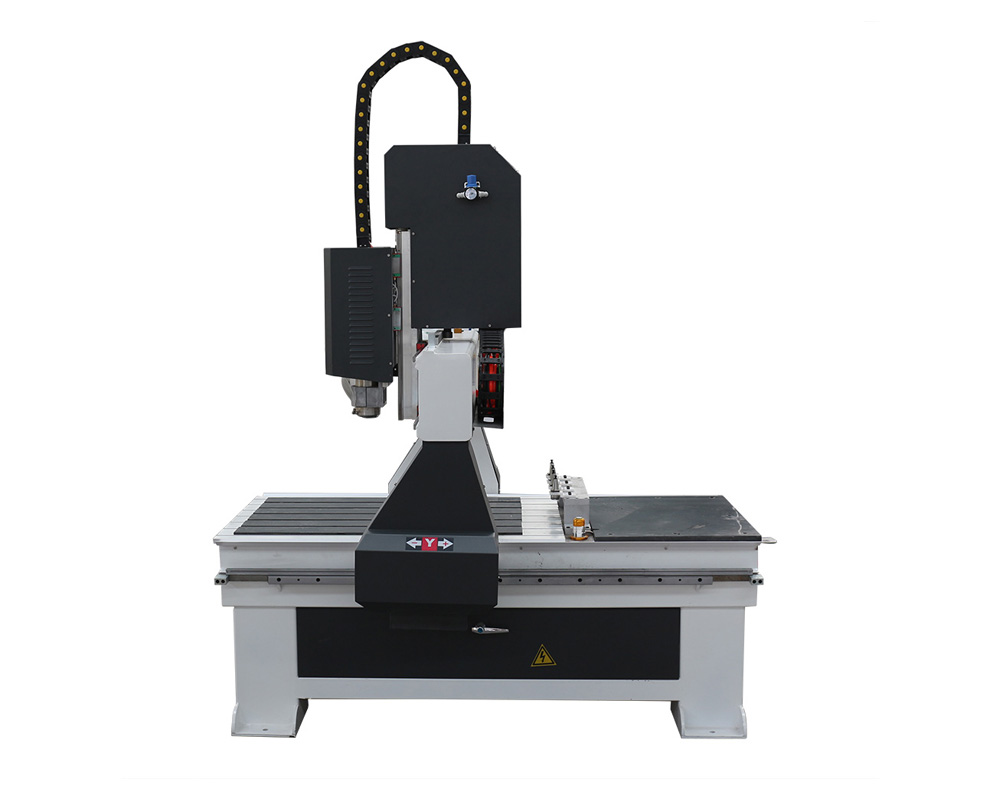

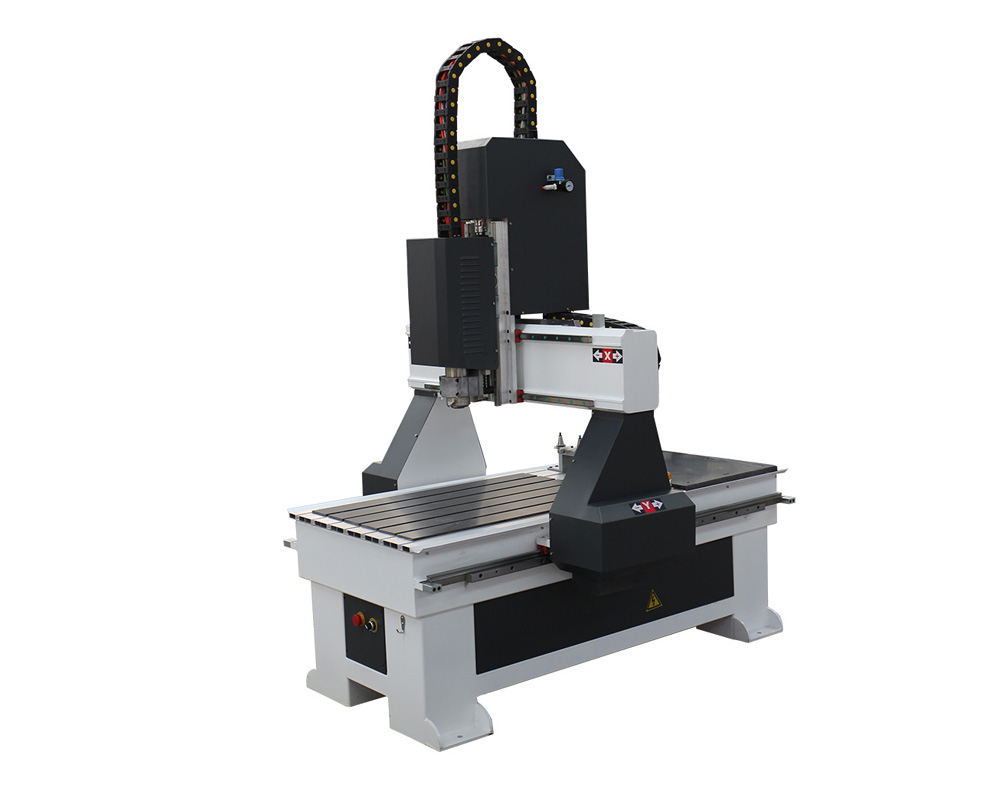

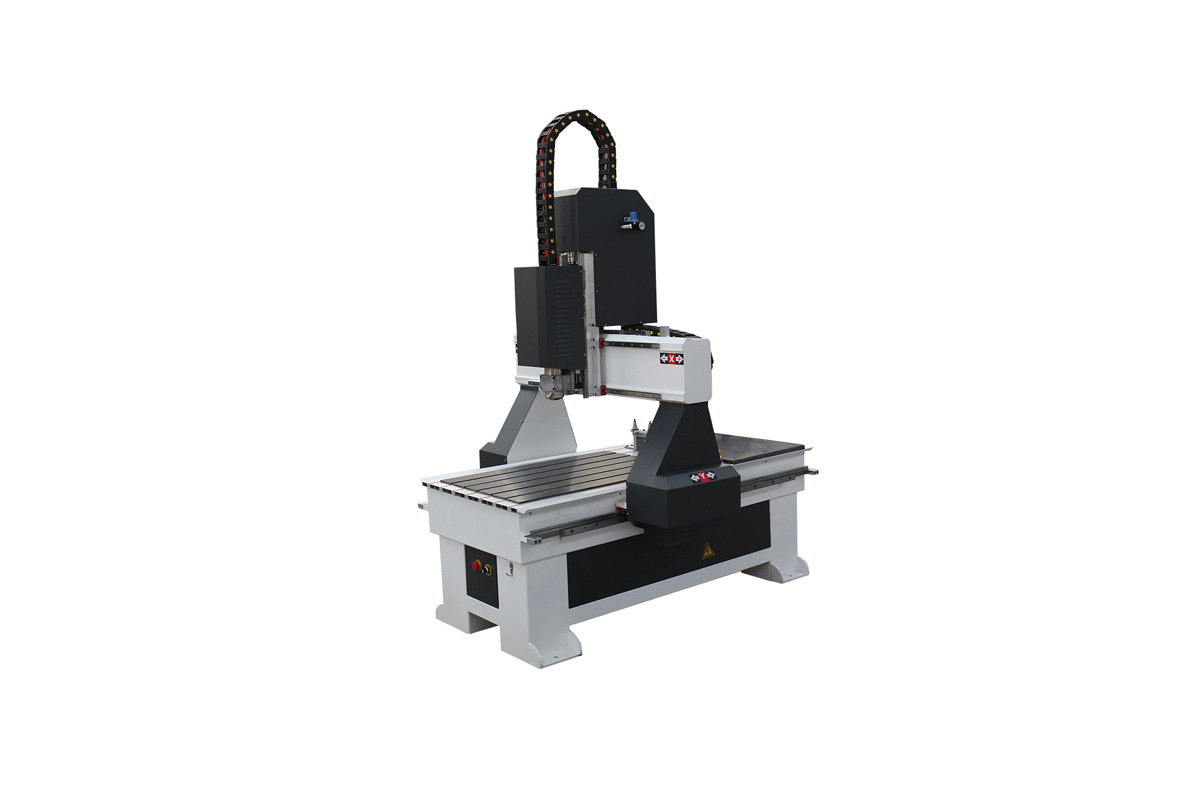

1. Cheap ATC CNC router 6090  with  Weihong control system, can be programmed in three dimensions.
2. Thick square tube welding structure, the lathe is strong and the precision is increased.
3. Taiwan linear linear guide and rack, high-precision ball screw can ensure the processing accuracy.
4. High-speed AC hybrid servo motor and drive, the machine has good running stability.
5. The automatic tool change spindle of 4 tools improves the processing efficiency of the machine.
6. It can process non-metallic materials such as wood, acrylic,  PVC, plastic, foam, etc.

Performance Parameter

number	Description	parameter
1	XYZ working area	600*900*200mm
2	Table size	740*1400mm
3	XYZ travel positioning accuracy	±0.01mm
4	XYZ repositioning positioning accury	±0.025mm
5	Gantry	Steel tube
6	lathe structure	tube structure
7	drive system X-Y axis	Gear and rack transmission
8	drive system Z axis	Ball screw
9	Spindle power	2.2KW atc tool changer spindle
10	Max velocity	25m/min
11	Max working speed	15m/min
12	Spindle speed	0-24000rmp
13	work mode	Hybrid  servo motor
14	Working voltage	AC220V/380V
15	Command language	G code
16	Interface	USB
17	Operating system	Weihong control system
18	Flash memory	128
19	X-Y resolution	0.025mm
20	Software environment	Wentai type3 artcam
21	Running environment	Temperature:0-45°C
22	Packing size	1900*1200*1800mm
23	Net weight	500kg
24	Gross weight	600kg

Replaced or added Parts of Cheap ATC CNC router 6090
1. Rotating axis, suitable for processing cylindrical or irregular shaped materials
2. Dust collector, to clean up debris in the work area
3. SYNTEC control system
4. Vacuum workbench, to absorb and fix materials
5. 3.2kw/5.5kw water-cooled automatic tool change spindle
6. Servo motor and driver, which can improve processing speed and accuracy

Product parts

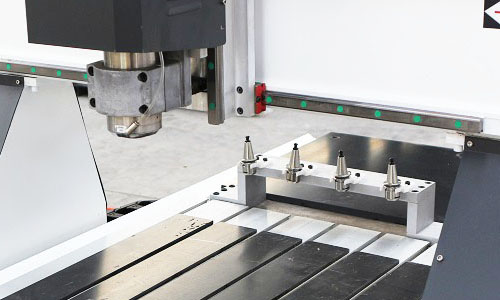

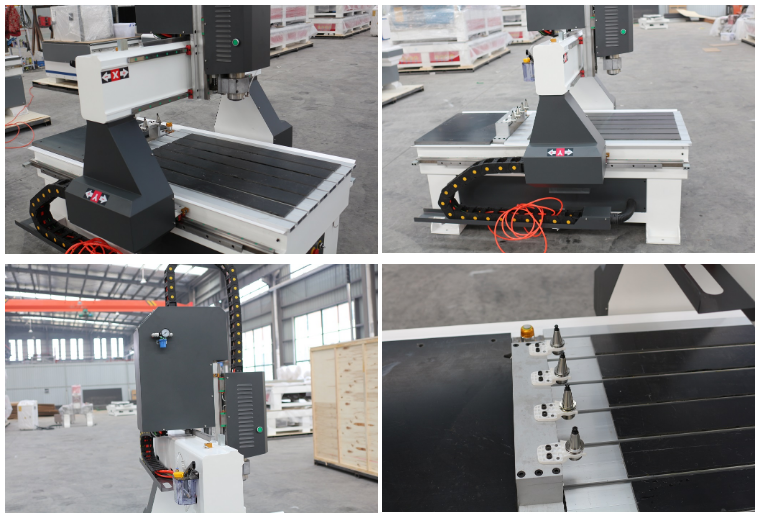

	The machine with 2.2kw water cooled spindle with atc tool changer

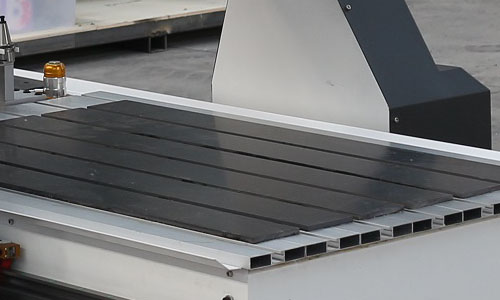

	Aluminium T slot table suitable for processing metal and non-metal materials

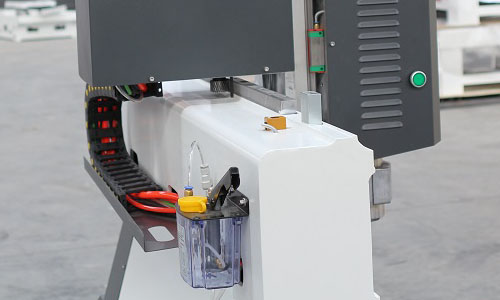

	1、Lubricator with easy maintenance and operation 2、X-Y-Z axis equipped with limit switch, safer production 3、Taiwan linear guide rails to ensure the processing stability of the machine

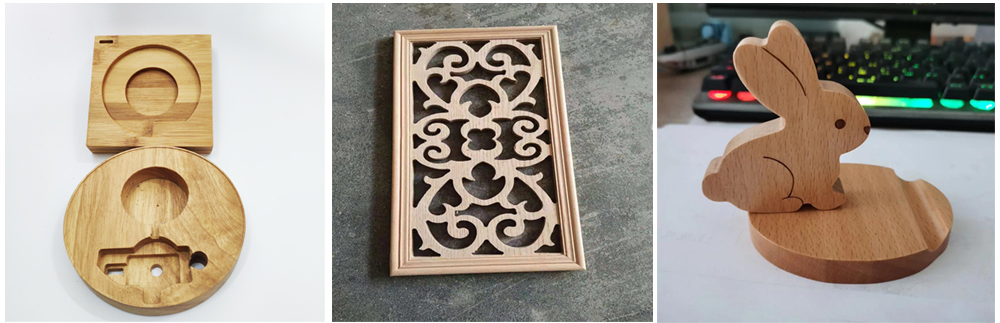

Product Applications

Cheap ATC CNC router 6090  Can engrave and cut most non-metallic materials, such as wood, acrylic, plastic, foam, board, PVC, MDF, density board, etc., as well as soft metal materials such as copper and aluminum.

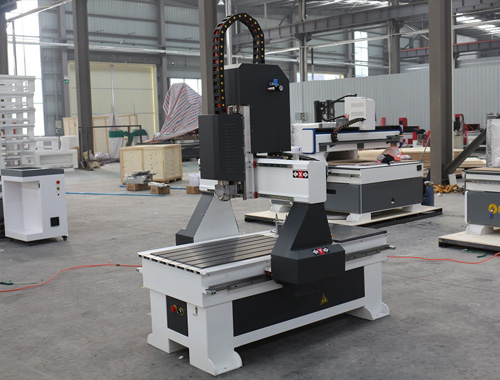

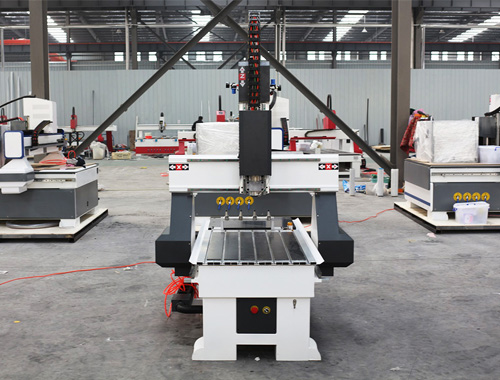

Our factory



Accessories maintenance and care of the Cheap ATC CNC router 6090

Clean the workbench and surrounding debris and sundries every day,
Clean the dust and debris on the motor surface, check whether the motor has abnormal noise, and whether the connecting wire is damaged.
The debris and debris on the guide rails and lead screws should also be cleaned at any time, and lubricating oil should be applied regularly.
Check the control system and software at any time for updates, and update them in time.
Regularly check whether the electrical appliances and wires are damaged and aged, and replace them in time

How to improve the accuracy of engraving machines?
1. Servo motor have higher accuracy and engraving speed than stepper motor
2. Regularly maintain mechanical parts such as guide rails, racks, and lead screws
3. Use the correct engraving tools
4. Good quality bed and gantry can also improve the accuracy of the machine

FAQ：

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
