Characteristic:

1.Water cooling spindle,high precision,long life time,steady working,easy to start up.

2.Thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.

3.DSP or Mach3 controller system with USB interface,working without connecting with computer during working and easy to control.

4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.

5.Auto oilling system ,easy to operate by pressing one key.

6.Seperated control system makes operation easily.

7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.

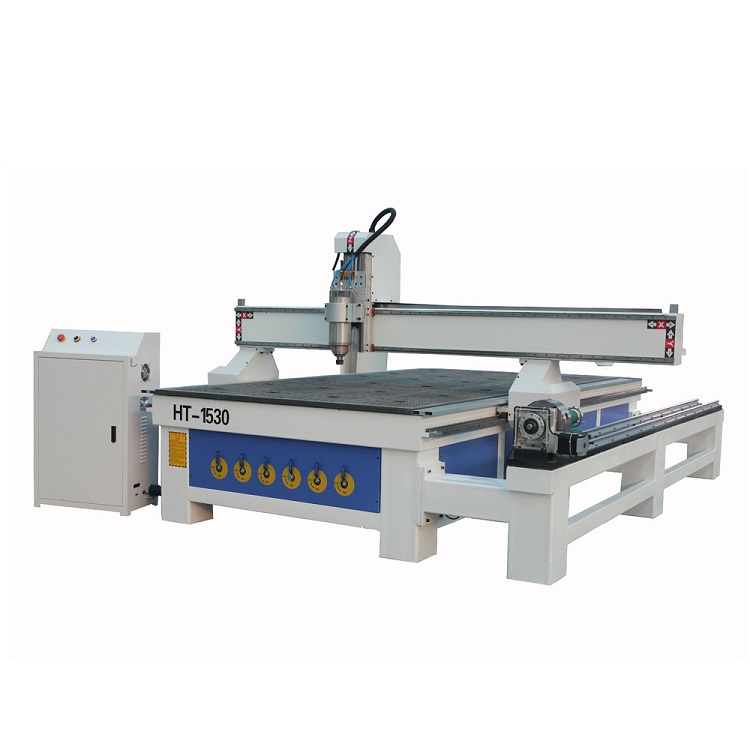

8.With rotary axis, suitable for engrave cylinder material.

 Performance parameter:

Number	Description	Parameter
1	XYZ working area	1500*3000*200mm
2	Table size	2180*3500mm
3	XYZ travel positioning accuracy	±0.025mm
4	XYZ repositioning positioning accury	±0.025mm
5	Table surface	Bakelite vacuum table combiated T slot
6	grantry	Steel
7	drive system X-Y axis	Rack actuation
8	drive system Z axis	Ball screw
9	Spindle power	3/5.5KW
10	Max velocity	50m/min
11	Max working speed	25m/min
12	Spindle speed	0-24000rmp
13	work mode	step(optional servo)
14	Working voltage	AC220/380V
15	Command language	G code
16	Interface	USB
17	Operating system	DSP/Ncstudio/Mach3
18	Flash memory	128
19	X-Y resolution	0.025mm
20	Software environment	Wentai type3 artcam
21	Running environment	Temperature:0-45°C
22	Paking size	4000*2150*2200mm
23	Net weight	1500 kg
24	Gross weight	1700 kg

Machine Parts：

Working Samples：



Producing Processing：



FAQ:

Q1.How to get the most suitable machine and best price

​Please tell the material you want to working on ? ​How to working on it ? Engraving ? Cutting ? Or other ? ​What’s the MAX size of these material ?( length ? Width ? Thickness ?)
