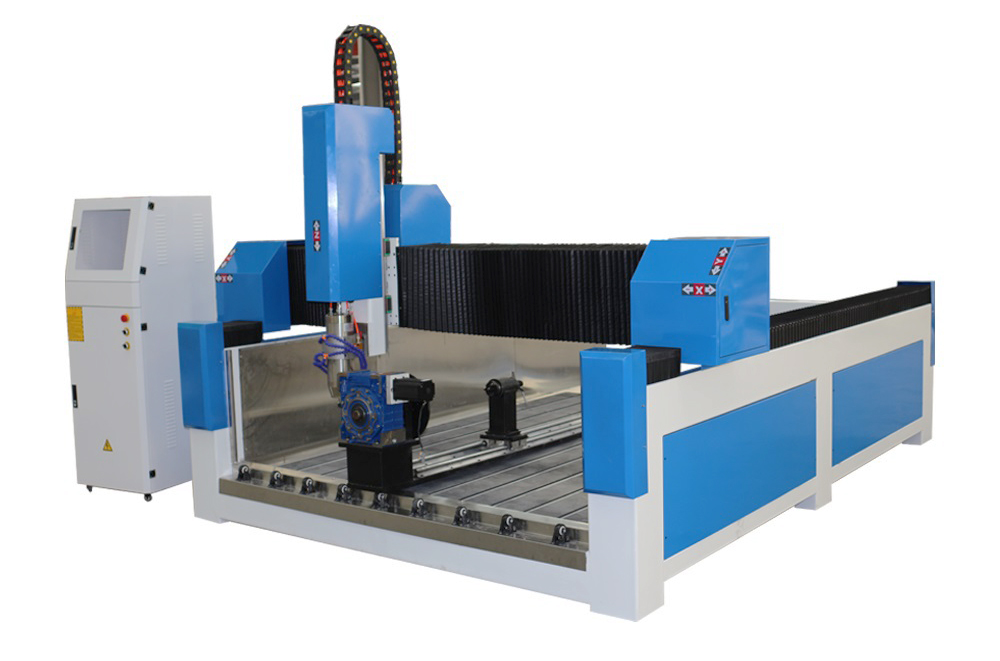

4 Axis cnc stone router

Products Description

The model of this stone CNC router machine is 1530, the working size is 1500mm * 3000mm. The spindle is 5.5KW and can swing 180 °, or changed a larger spindle, such as a 9KW spindle. It can also be replaced with a smaller spindle.

This CNC router machine is also equipped with a rotary axis, which can be used to carve 3D/4D stones or woodworking ,acrylic products. With this machine, you can make different surface engraving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, furniture, indoor decoration,bended doors or cabinets etc..

We can provide product customization. For example, machine color, appearance, and product functionality

Performance Parameter

NO.	Description	Parameter
1	X,Y,Z Working Area	1500x3000x(300-700mm)*±180°
2	Table Size	1800×3500mm
3	X,Y,Z Traveling Positioning Accuracy	±0.02/300mm
4	X,Y,Z Repositioning Accuracy:	±0.02mm
5	Table Surface	T slot table(optional vacuum table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Helical rack gear , HIWIN Linear guide
8	Z Structure	Imported Ball Screw , HIWIN Linear guide
9	Max. Power Consumption	(Without Spindle) 4.2Kw
10	Max. Rapid Travel Rate	50000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	5.5kw/9kw
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper motor(Optional servo motor)
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
16	Command Language	G Code
17	Operating System	DSP A18/Stntec
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ER25
21	X,Y Resolution	<0.02mm
22	Software Compatibility	UG , Power mill
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	4.12.32.6m
26	N.W.	1600KG
27	G.W.	1800KG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		SIEMENS/DELTA/ Panasonic Servo Motors
		Colombo Spindle
		X:2m, Y:4m, Z:1m

Main Parts

The stone cnc router machine used water cooling spindle.
and the cnc engrave machine with high precision and long
life time.steady working,easy to start.

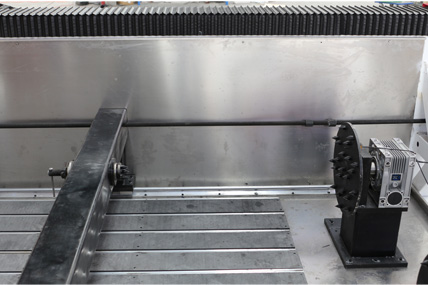

The cnc router machine of stone is equipped with a rotary
axis, which can easily carve 4D artworks.Roman columns
are the most common.

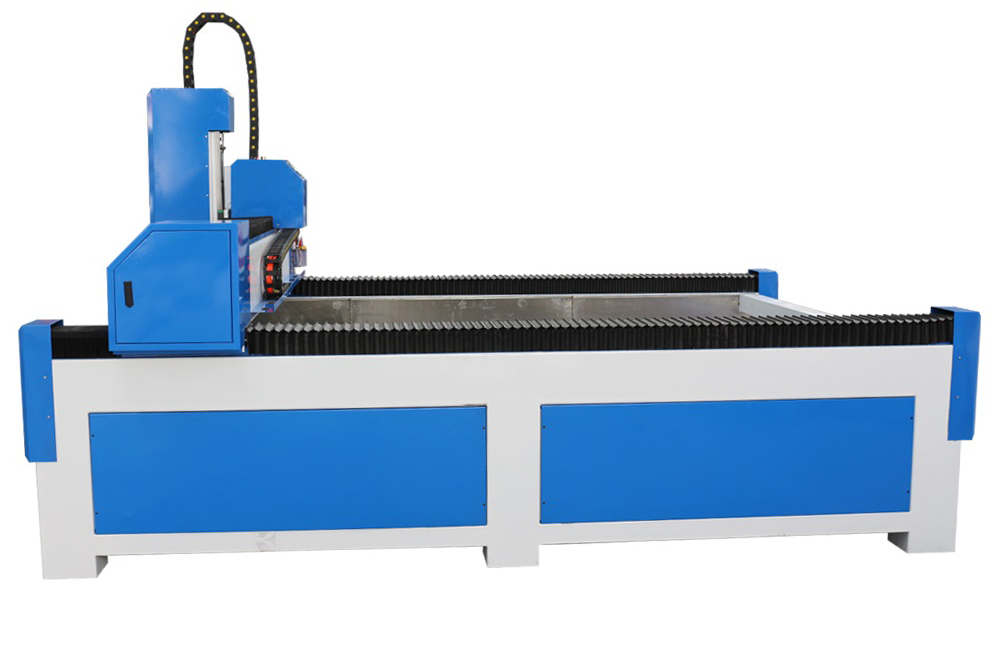

The cnc stone router machine frame is welded with heavy-

duty steel pipes, and the steel pipes on the bed have a high
density. Tempering treatment of the frame, which will not
deform after long-term application

other parts

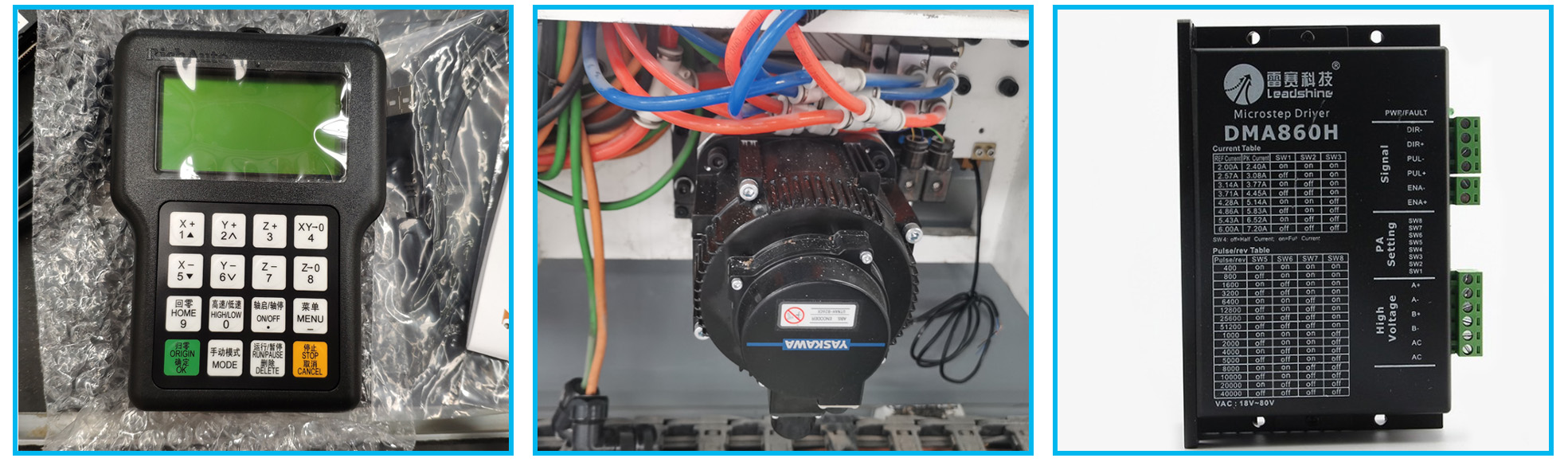

THE DSP THE SERVO MOTOR THE DRIVER

Working Samples

STONE COLUMN STONE FLAT CARVING STONE RELIEF

WOODEN ROMAN COLUMNS HOLLOW CARVING CARVING DOOR AND FURNITURE

FAQ

Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
