Characteristic

His machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.

With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.

With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration.

Performance parameter

NO.	Description	Parameter
1	X,Y,Z Working Area	1300×2500/1500x3000x(300-700mm)*±180°
2	Table Size	1500×3000/1800×3500mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/300mm
4	X,Y,Z Repositioning Accuracy:	±0.01mm
5	Table Surface	T slot table(optional vacuum table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Helical rack gear , HIWIN Linear guide
8	Z Structure	Imported Ball Screw , HIWIN Linear guide
9	Max. Power Consumption	(Without Spindle)  4.2Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	3.2/5.5KW
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper motor(Optional servo motor)
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	DSP A 18
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ER25
21	X,Y Resolution	<0.01mm
22	Software Compatibility	UG , Power mill
23	Running Environment  Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	4.1*2.3*2.2m
26	N.W.	1600KG
27	G.W.	1800KG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		SIEMENS/DELTA/ Panasonic Servo Motors
		Colombo Spindle
		X:2m, Y:4m, Z:1m

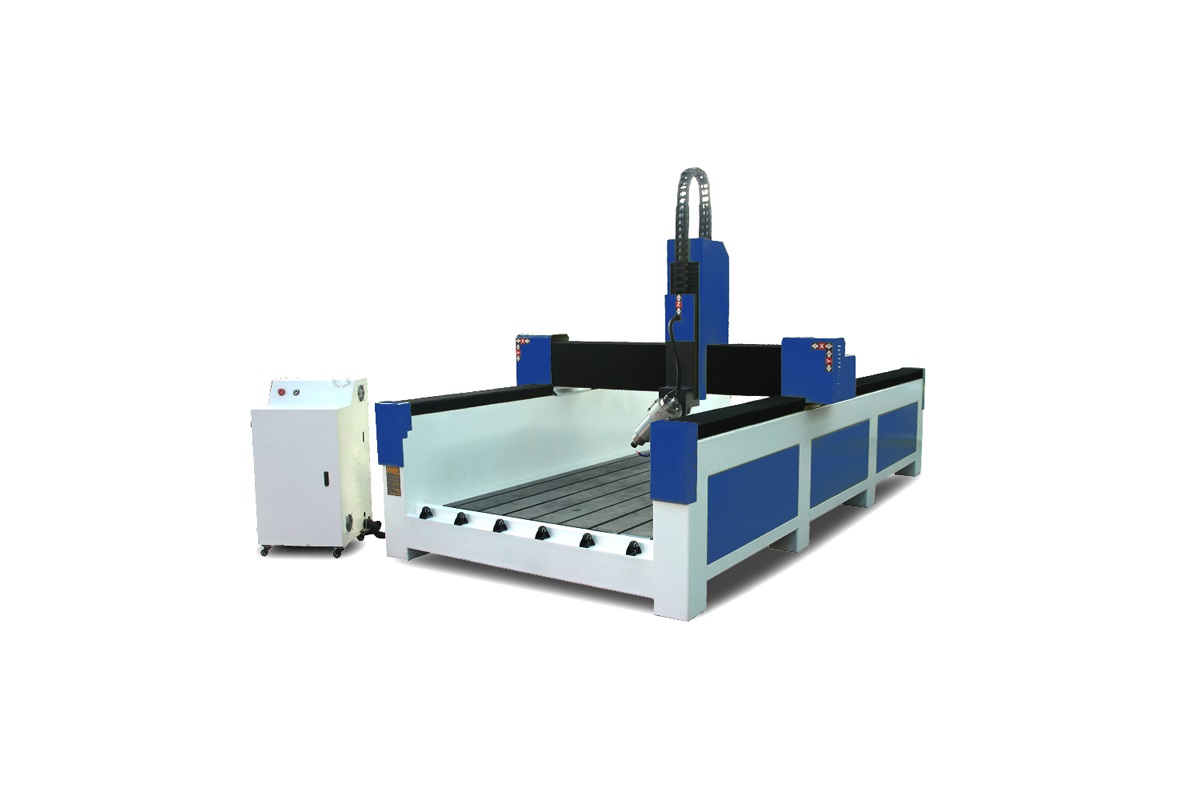

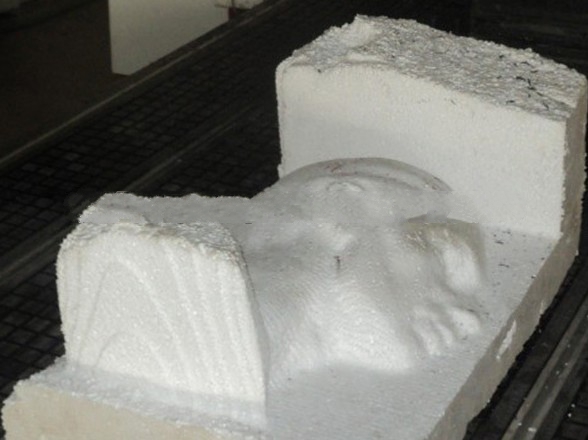

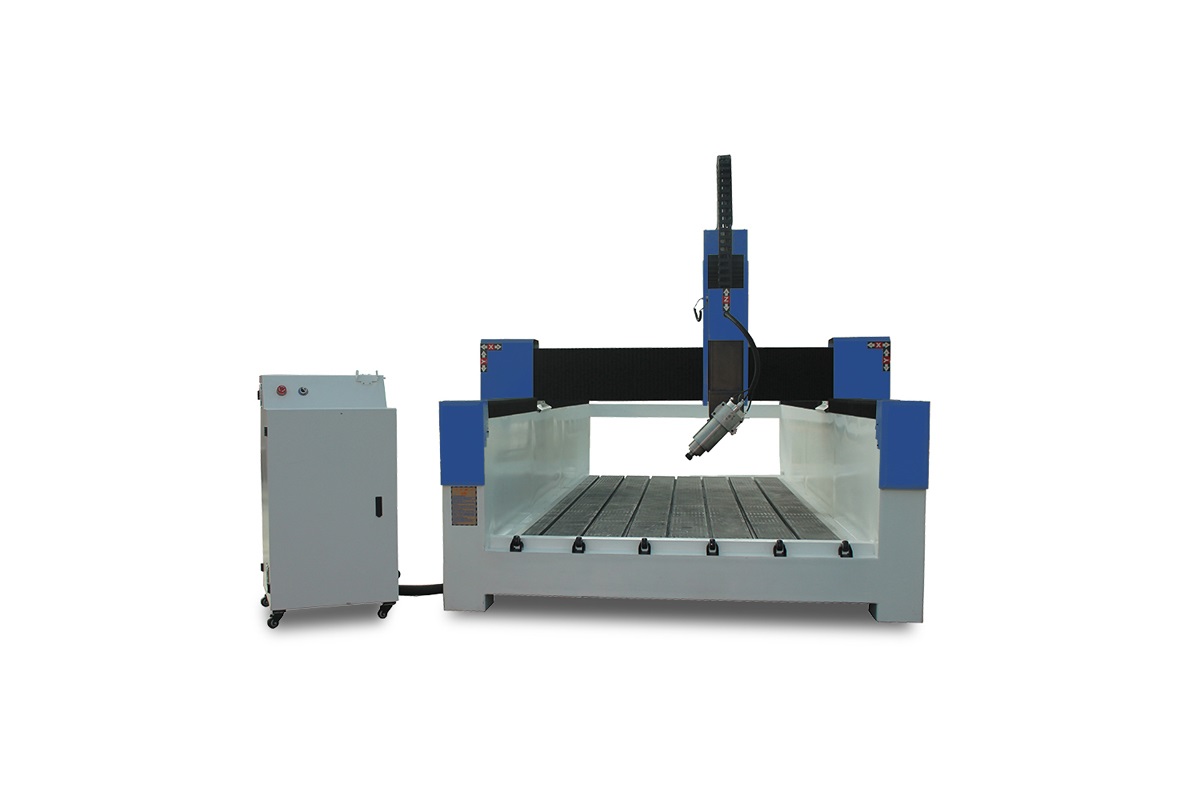

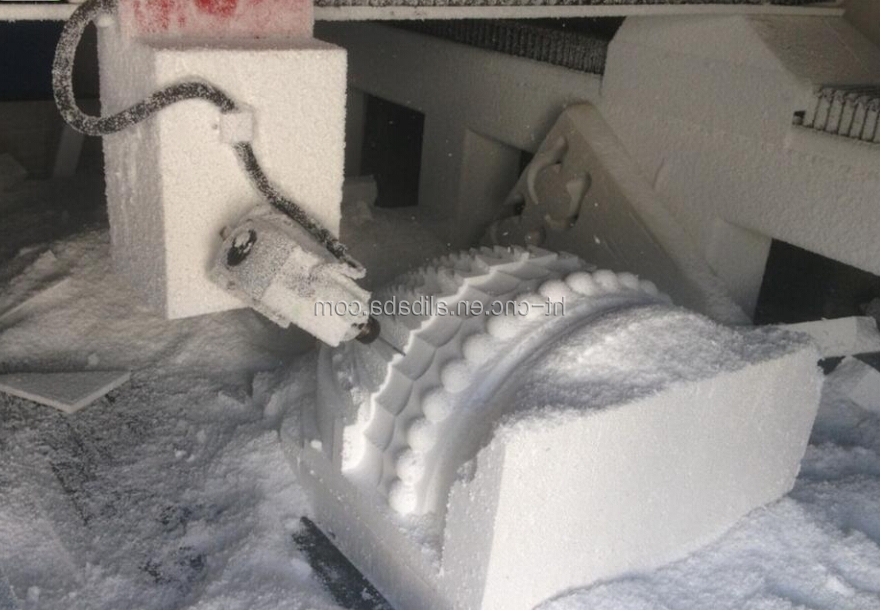

Working Samples：
