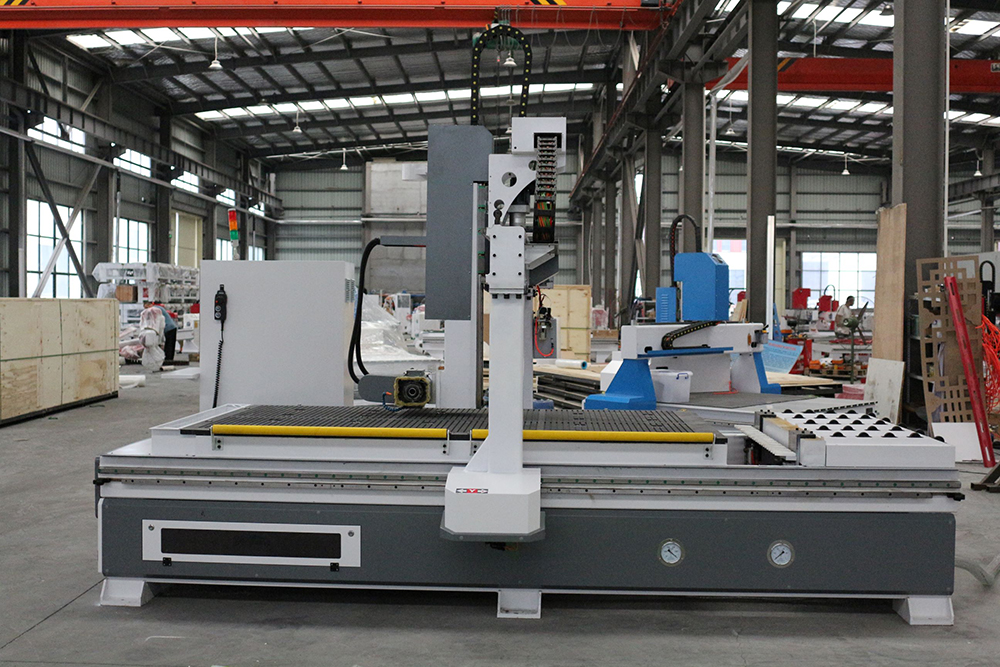

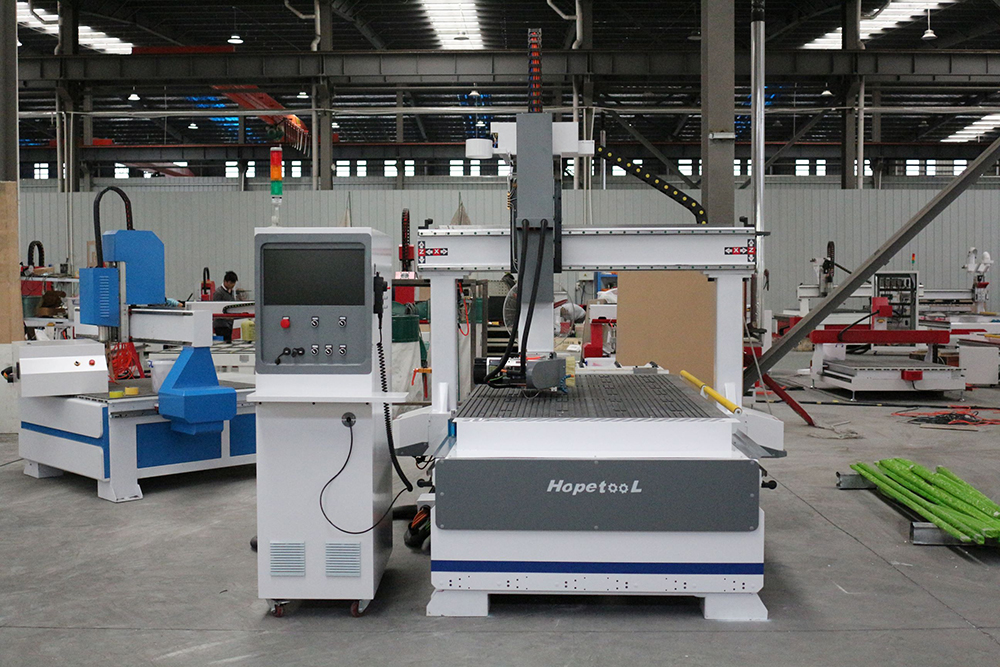

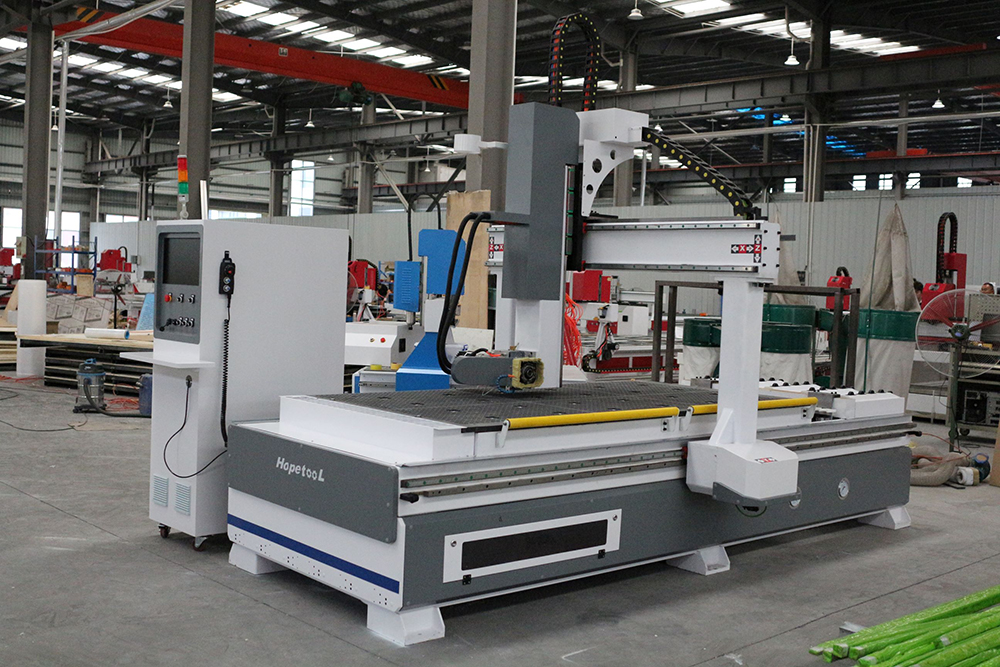

4 axis ATC cnc router wood machine

Model  Name 4 axis ATC cnc router wood machine
Operating System Taiwan Lnc/Syntec System
Spindle Power 9kw Air Cooled Spindle
Table Size 3500*2050*1850/4000*2250*1850/4000*2750*1850/4000*2750*1850mm
XYZ working area 1300*2500*300/1500*3000*300/2000*3000*300/2100*3000*300mm
Gantry Heavy steel welded structure
Drive system X-Y axis Rack actuation
XYZ travel positioning accuracy ±0.03/300mm
Max velocity 0-60000mm/min
Table surface Vacuum table
Working voltage AC220V or 380V    50HZ/60HZ
Operating system LNC/SYNTEC System
Drive Type AC Servo Drive
Table surface Vacuum table

The straight row 4 axis ATC cnc router wood machine center is high-end automatic tool changing engraving equipment. It has a rear straight row tool changing magazine, which can store multiple cutting tools (customized according to its own processing needs).

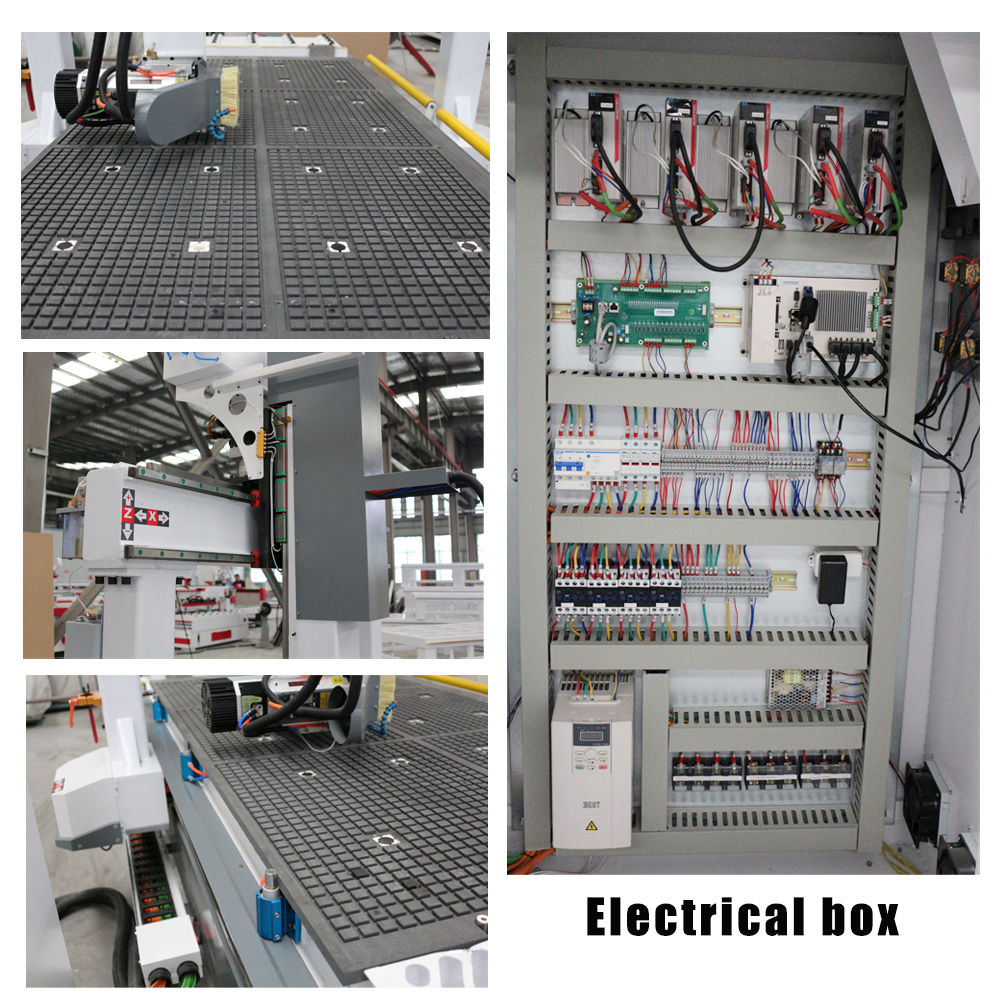

4 axis ATC cnc router wood machine Detail:

4 axis ATC cnc router wood machine tool changing speed is fast and suitable for processing diversified and complex products. It has a wide range of functions, such as hollowing, drilling, cutting, engraving, etc. Widely used in the processing of solid wood door decorative buckles, paint free doors, paint free cabinet doors, furniture, panel bathroom cabinets, speakers, game cabinets, computer desks, sewing machines, musical instruments, insulators, plastic chemical parts, PCBs, high-speed car interiors, bowling tracks, stairs, anti duplication special plates, epoxy resins, ABS, PP, PE and other carbon mixtures, acrylic, PVC, density boards, artificial stones, organic glass, plastics, copper and aluminum and other soft metal plates for engraving and cutting processing.

Application industry

(1) Processing solid wood door, decorative buckles, paint free cabinet doors, furniture, panel bathroom cabinets, etc.

(2) Speaker, game cabinet, computer desk, musical instrument etc.





(3) Engraving and milling of soft metal sheets such as acrylic, PVC, density board, artificial stone, organic glass, plastic, and copper aluminum

what we can provide?

1、Our engineers provide full guidance on installation and usage throughout the process
2、24-hour pre-sales and after-sales service
3、We can provide customized services such as color, size, style, etc
4、’Provide product inspection certificate

      Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
