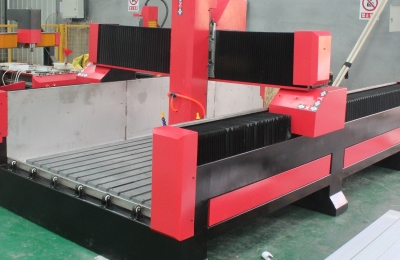

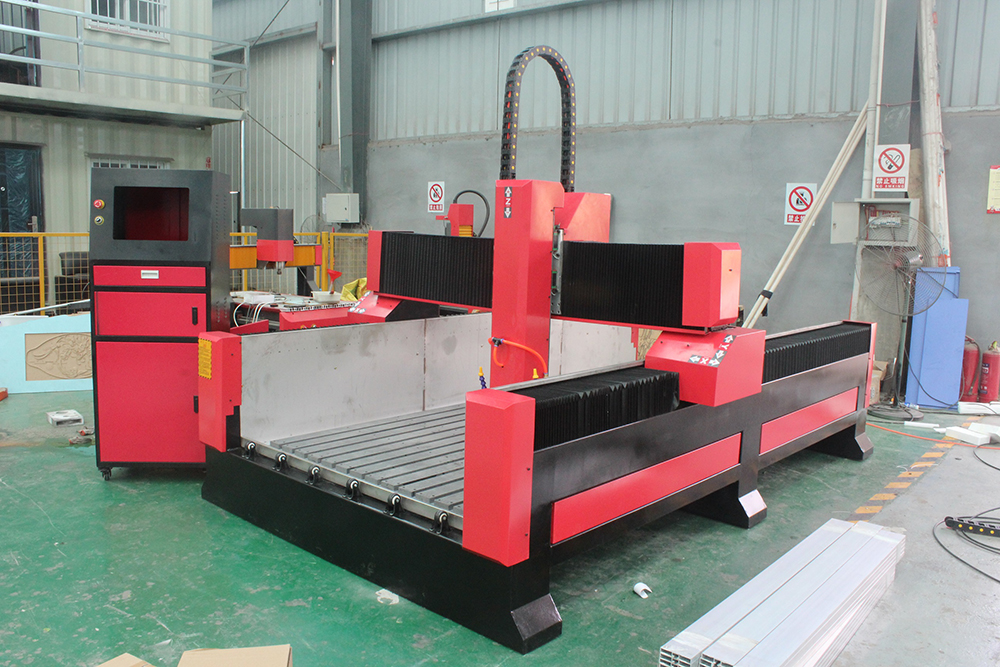

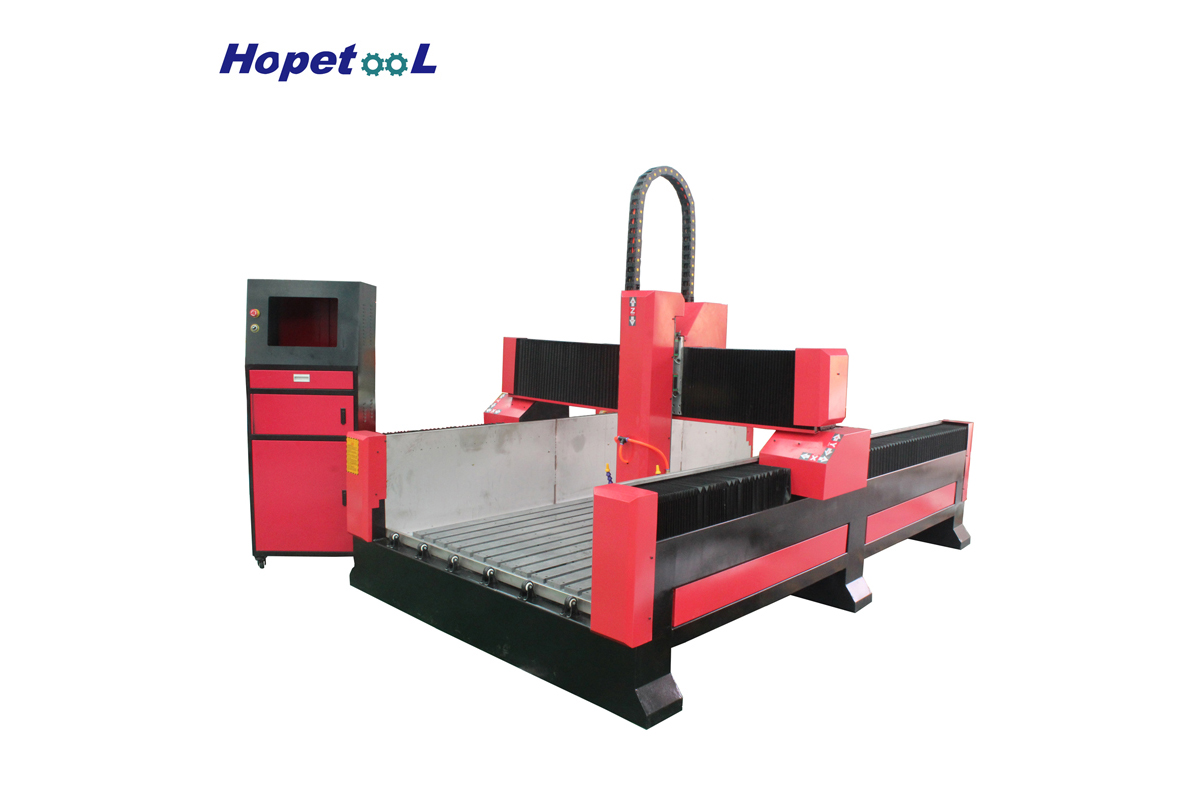

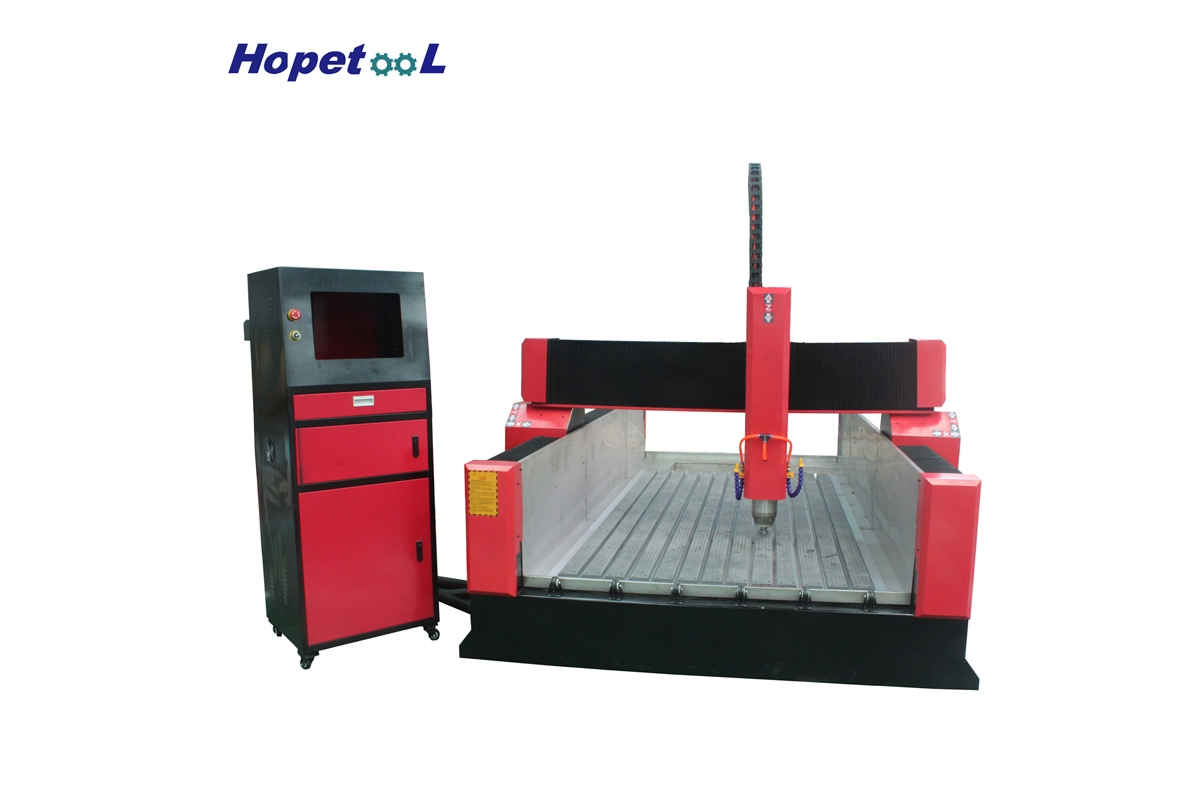

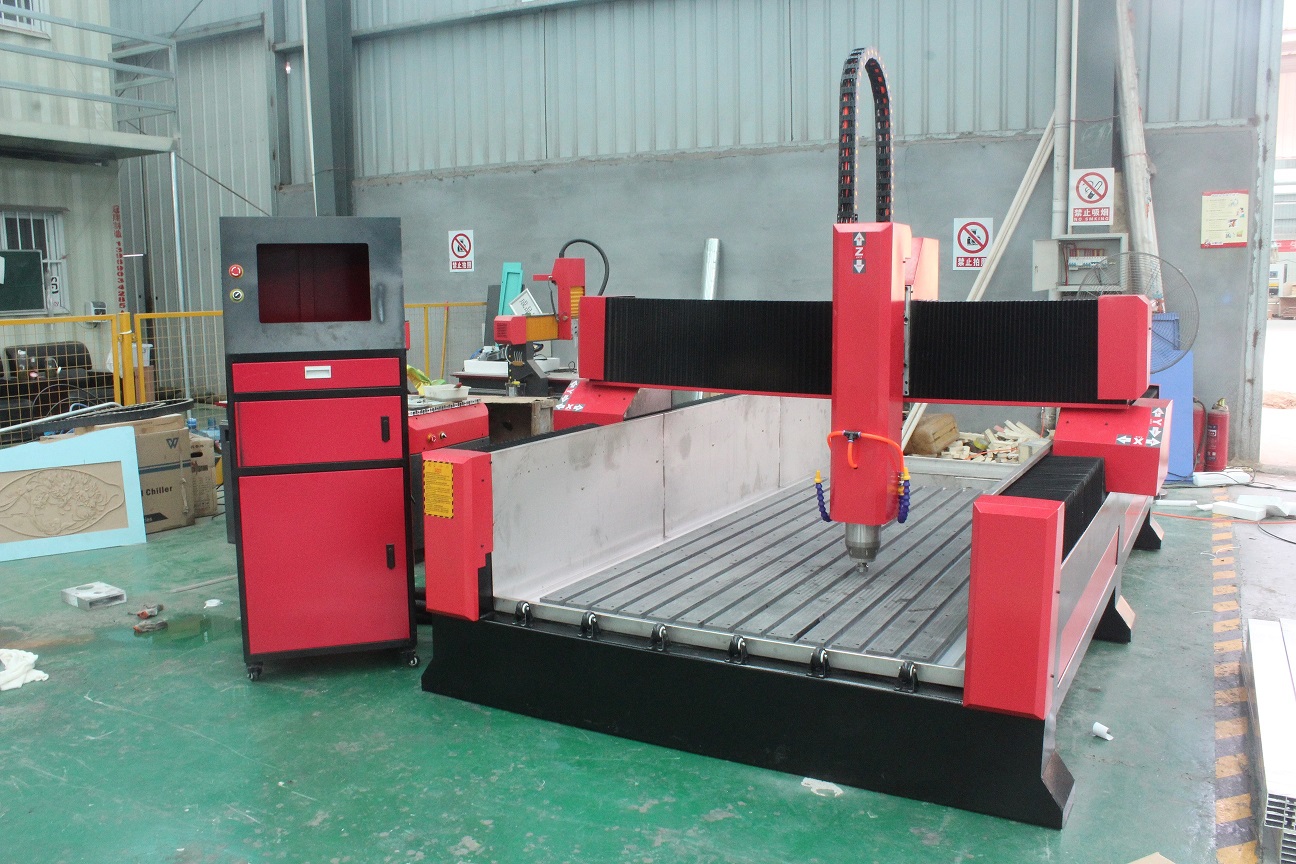

3 axis Marble stone 1325 CNC router
Characteristic
1.Leading Rack Drive, fast, high efficiency, air-speed can reach 35 m / min or more, against the wave plate is carved in
manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 — 5 ordinary type machines.
2. Intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage.
Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision
caused the phenomenon.
3. Fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. Advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing,
carving or cutting. Offline operation can be realized.
5.The overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table
can be arbitrary processing work table material.
6. Suitable for a variety of materials processing large quantities of production.

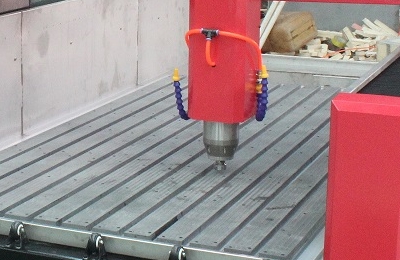

7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 — 5 ordinary type machines.
2. Intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage.
Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision
caused the phenomenon.
3. Fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. Advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing,
carving or cutting. Offline operation can be realized.
5.The overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table
can be arbitrary processing work table material.
6. Suitable for a variety of materials processing large quantities of production.
7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
Performance Parameter
|
Number
|
Description
|
Parameter
|
|
1
|
XYZ working area
|
1300*2500*300mm
|
|
2
|
Table size
|
1310*3000mm
|
|
3
|
XYZ travel positioning accuracy
|
±0.01mm
|
|
4
|
XYZ repositioning positioning accury
|
±0.01mm
|
|
5
|
Table surface
|
Aluminum T slot +PVC
|
|
6
|
grantry
|
steel
|
|
7
|
drive system X-Y axis
|
Rack
|
|
8
|
drive system Z axis
|
Ball screw
|
|
9
|
Spindle power
|
3/5.5KW
|
|
10
|
Max velocity
|
50m/min
|
|
11
|
Max working speed
|
25m/min
|
|
12
|
Spindle speed
|
0-24000rmp
|
|
13
|
work mode
|
step(optional servo)
|
|
14
|
Working voltage
|
AC220/380V
|
|
15
|
Command language
|
G code
|
|
16
|
Interface
|
USB
|
|
17
|
Operating system
|
DSP/Mach3/Ncstudio
|
|
18
|
Flash memory
|
128
|
|
19
|
X-Y resolution
|
0.025mm
|
|
20
|
Software environment
|
Wentai type3 artcam
|
|
21
|
Running environment
|
Temperature:0-45°C
|
|
22
|
Paking size
|
3300*1900*1900mm
|
|
23
|
Net weight
|
1300 kg
|
|
24
|
Gross weight
|
1500 kg
|

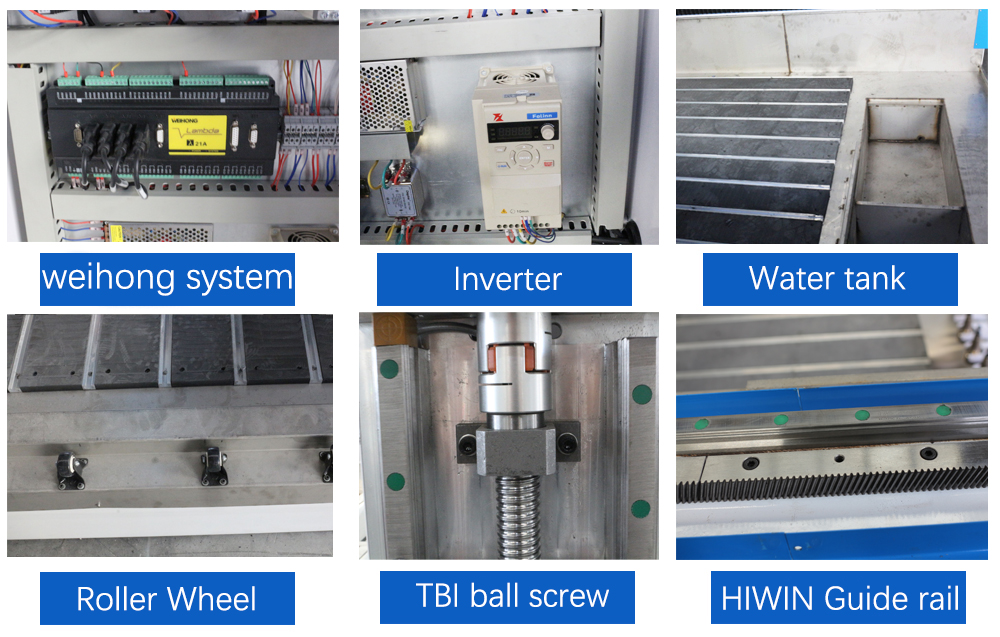

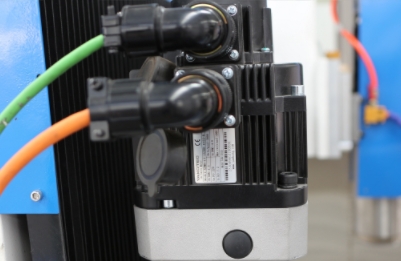

Main Parts
Working Samples
FAQ
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
