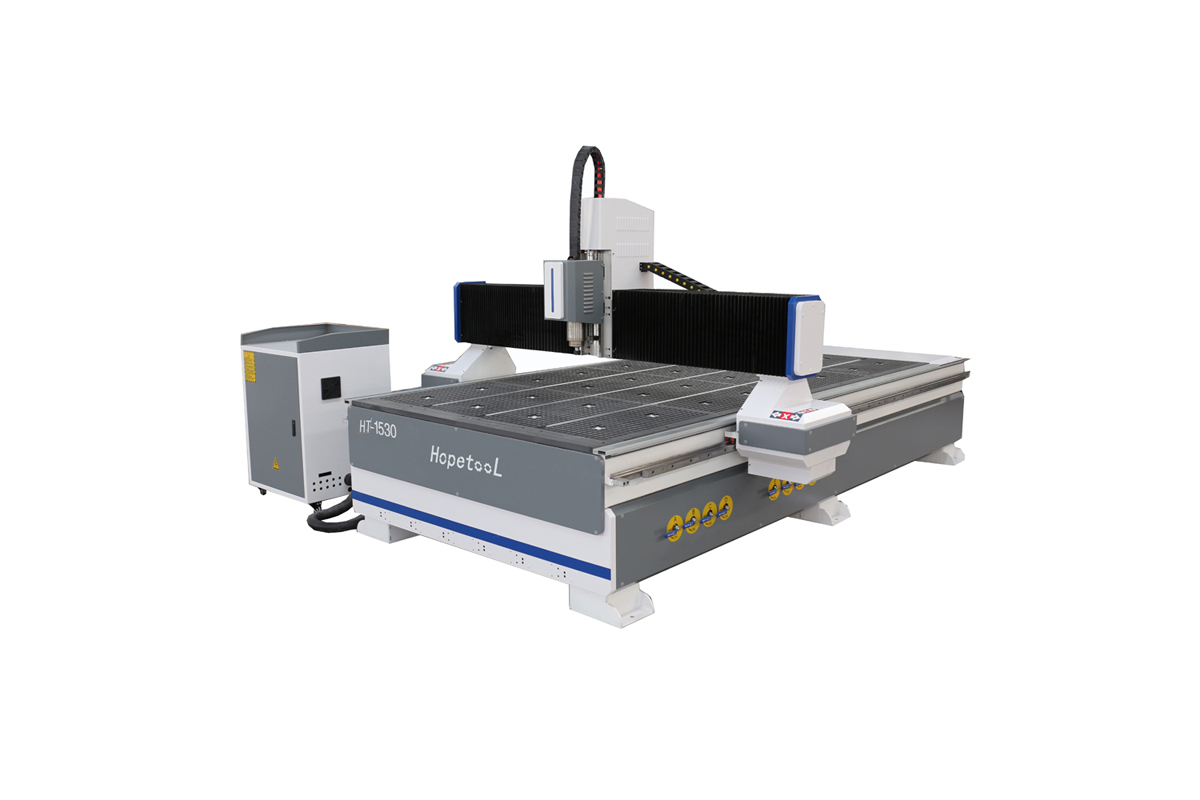

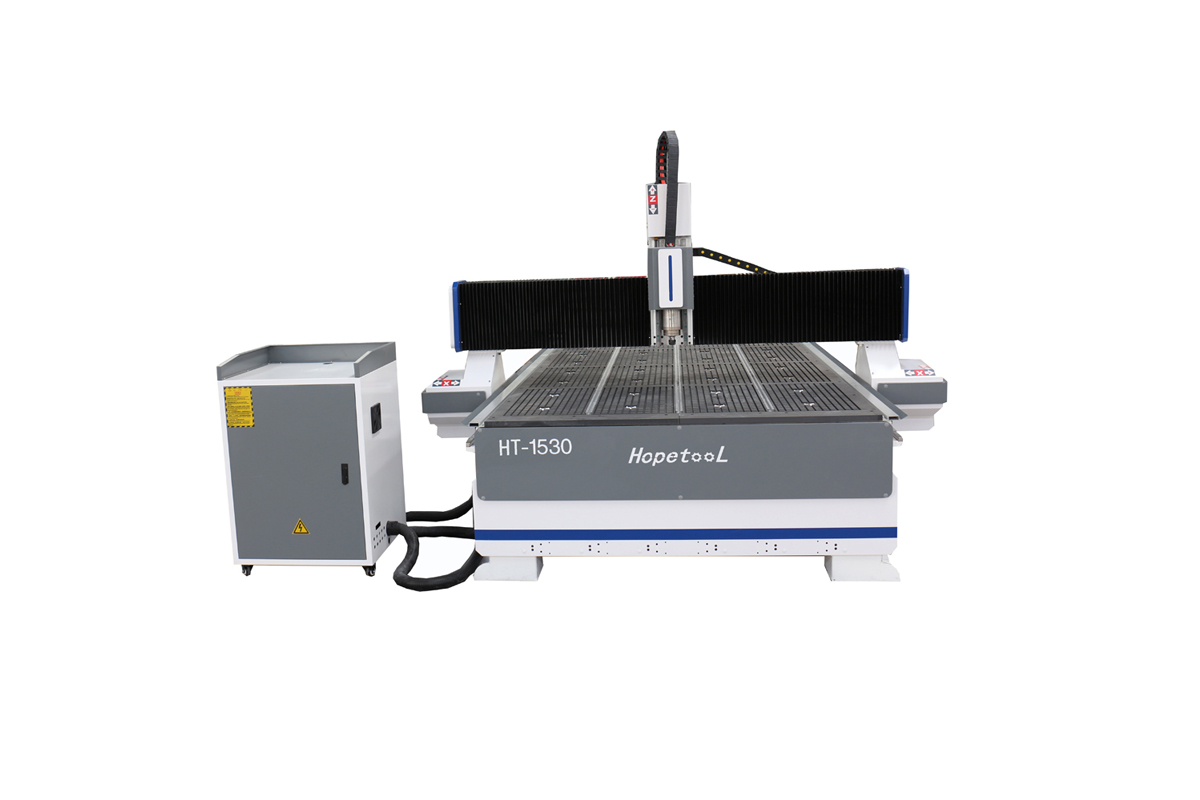

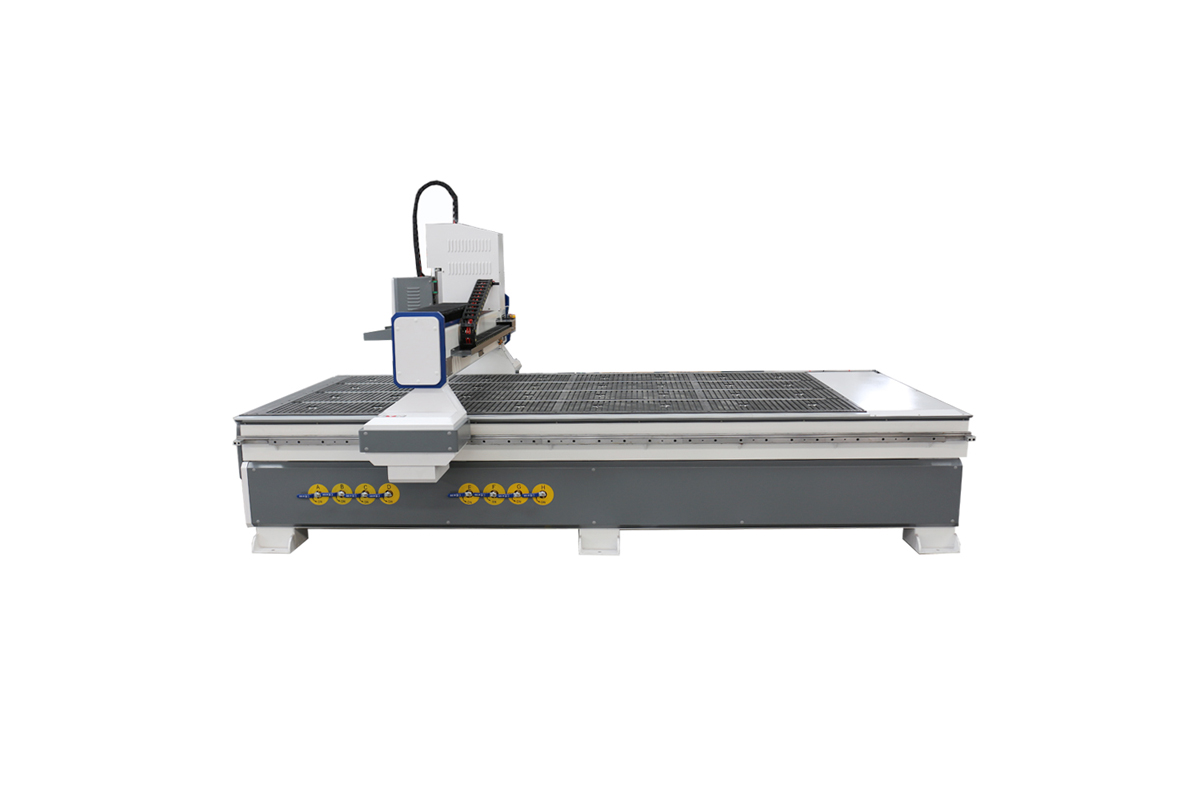

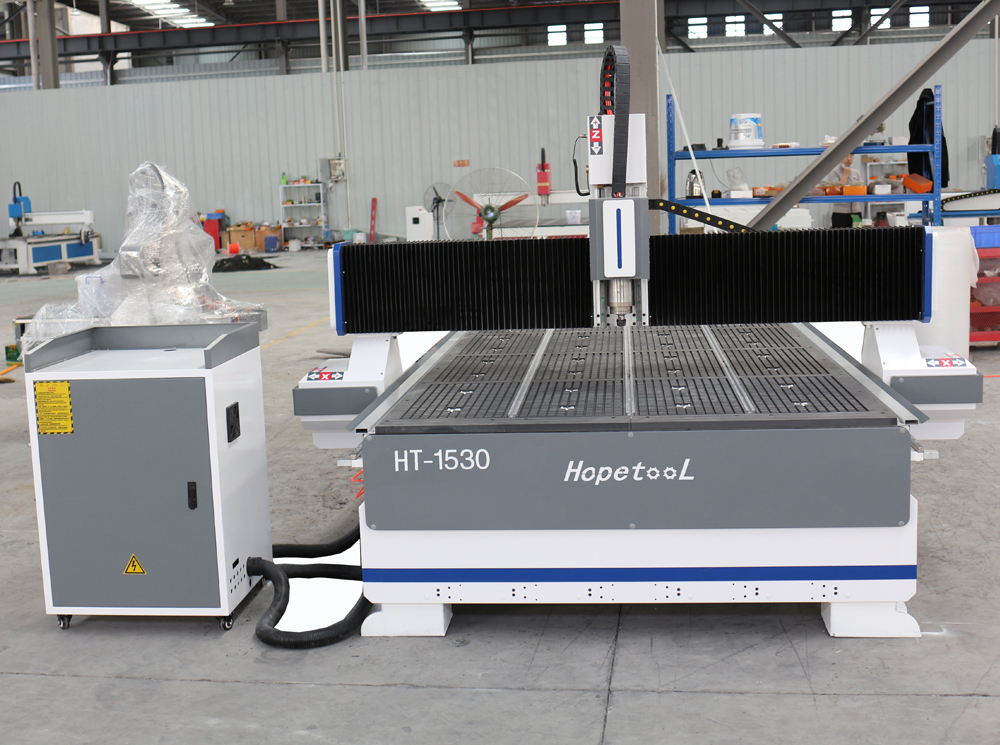

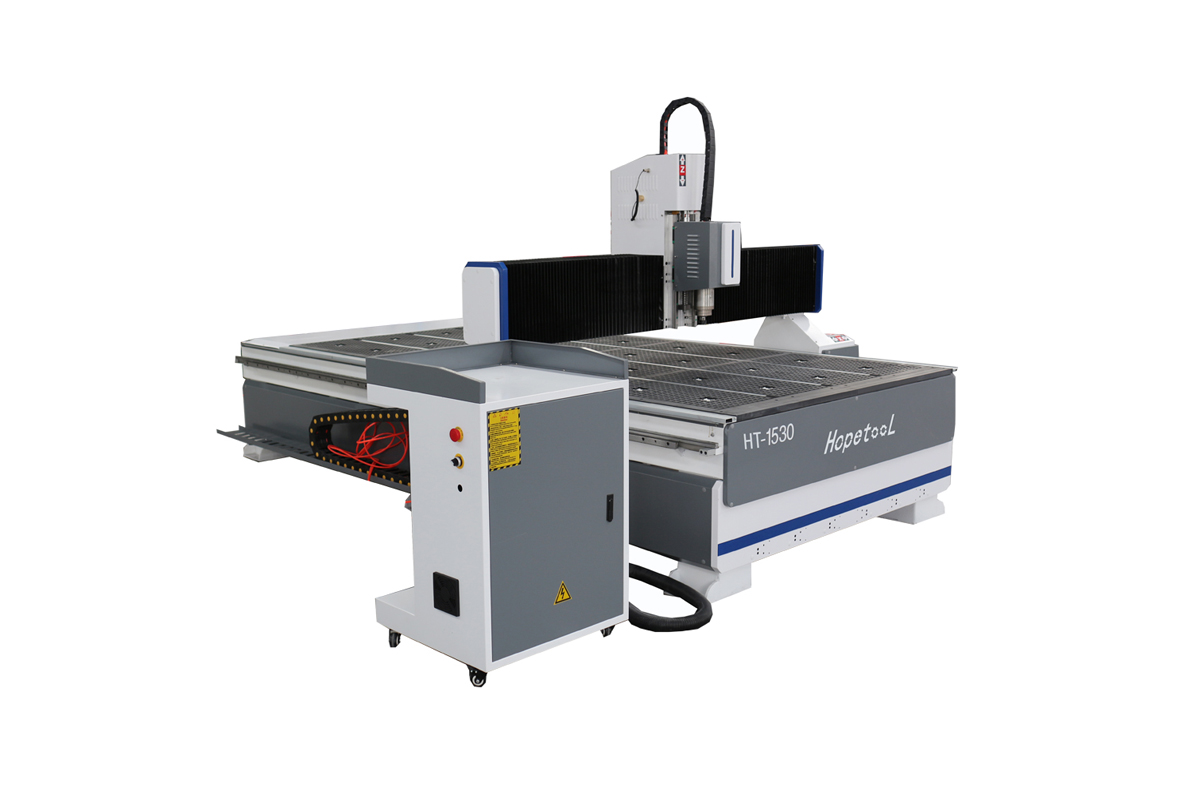

1530 woodworking cnc router with vacummer
Characteristic:
1.1530 woodworking cnc router with vacummer machine with water cooling spindle,with high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.seperated control system makes operation easily.
7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.
8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.
Performance parameter:
| Number | Description | Parameter |
| 1 | XYZ working area | 1500*3000*200mm |
| 2 | Table size | 2180*3500mm |
| 3 | XYZ travel positioning accuracy | ±0.01mm |
| 4 | XYZ repositioning positioning accury | ±0.01mm |
| 5 | Table surface | Bakelite sheet |
| 6 | grantry | steel |
| 7 | drive system X-Y axis | Rack actuation |
| 8 | drive system Z axis | Ball screw |
| 9 | Spindle power | 3/4.5/5.5KW |
| 10 | Max velocity | 50m/min |
| 11 | Max working speed | 25m/min |
| 12 | Spindle speed | 0-24000rmp |
| 13 | work mode | step(optional servo) |
| 14 | Working voltage | AC220/380V |
| 15 | Command language | G code |
| 16 | Interface | USB |
| 17 | Operating system | DSP/Ncstudio/Mach3 |
| 18 | Flash memory | 128 |
| 19 | X-Y resolution | 0.025mm |
| 20 | Software environment | Wentai type3 artcam |
| 21 | Running environment | Temperature:0-45°C |
| 22 | Paking size | 4000*2150*2200mm |
| 23 | Net weight | 1300 kg |
| 24 | Gross weight | 1500 kg |
Working sample
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3.Our engineer can go to customer’s factory training.
Warranty and After service
1. Our warranty is 2 years counting from the date when the Machine arrives at the port of
destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
