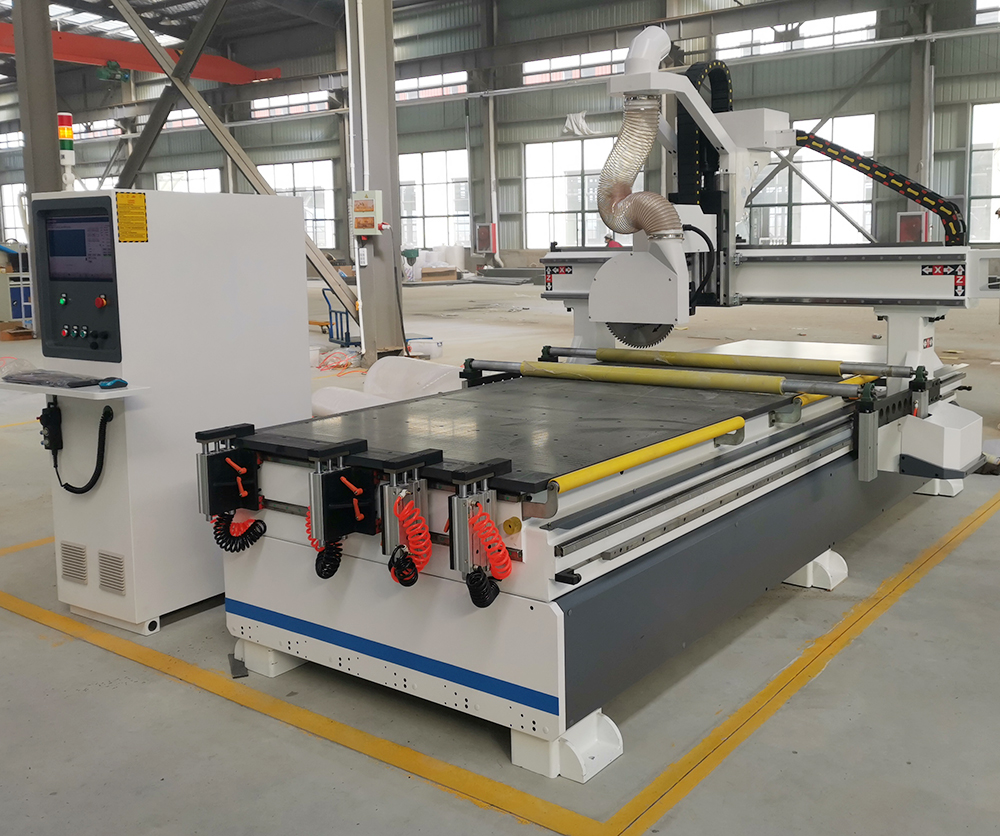

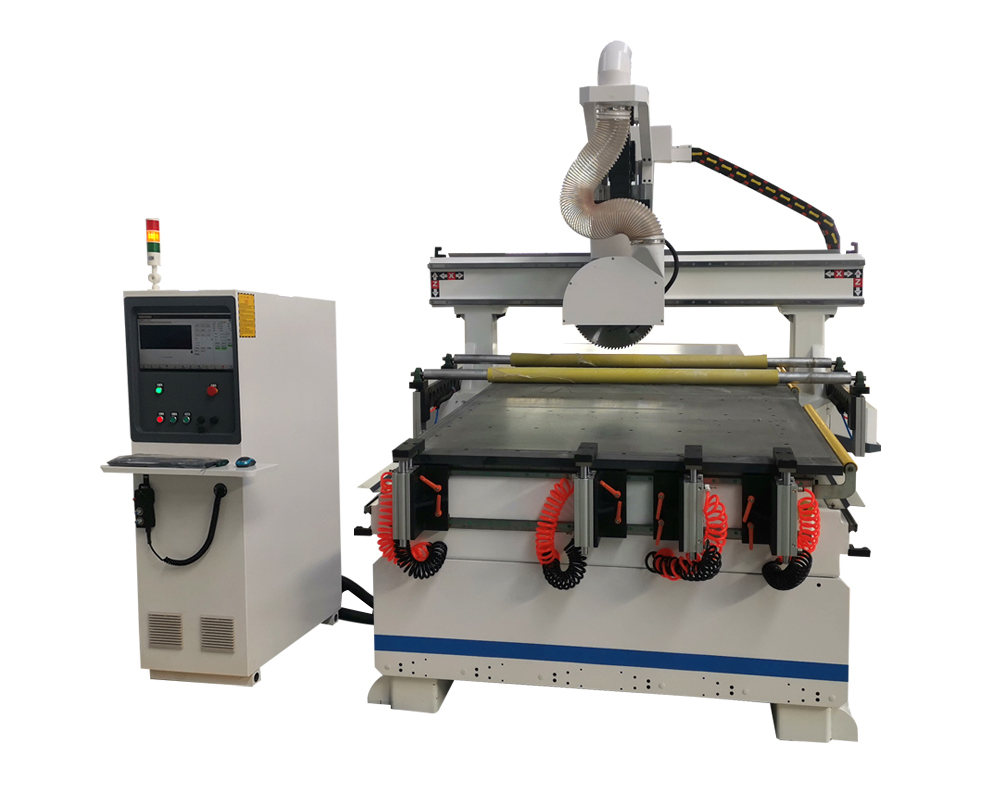

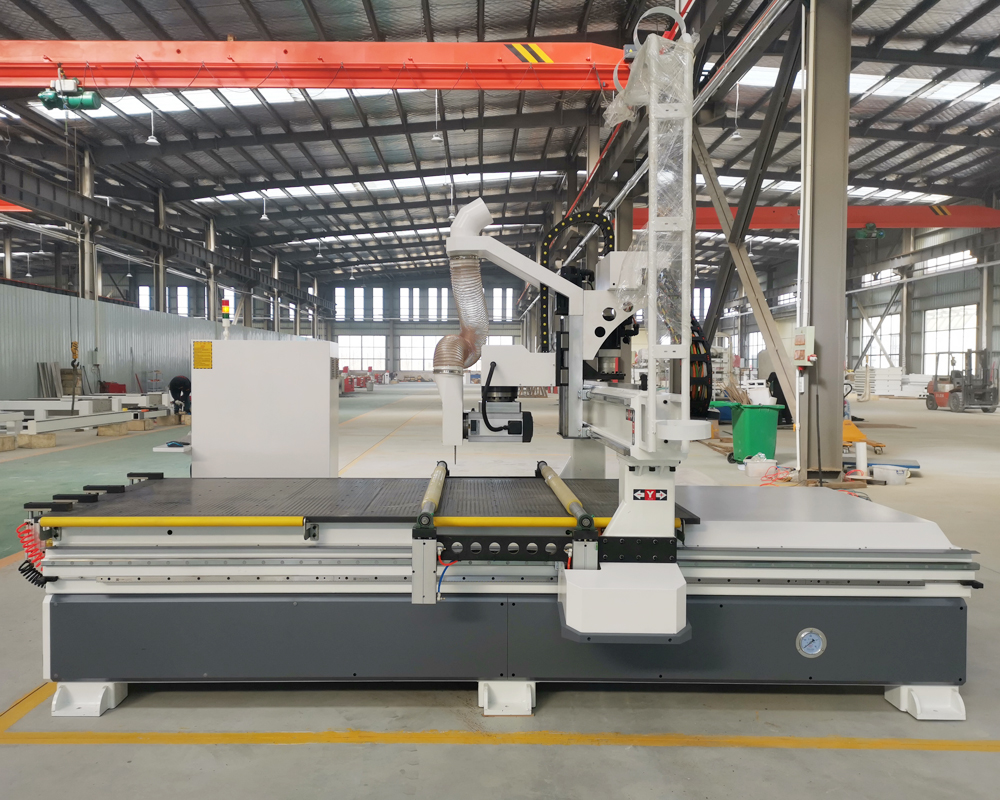

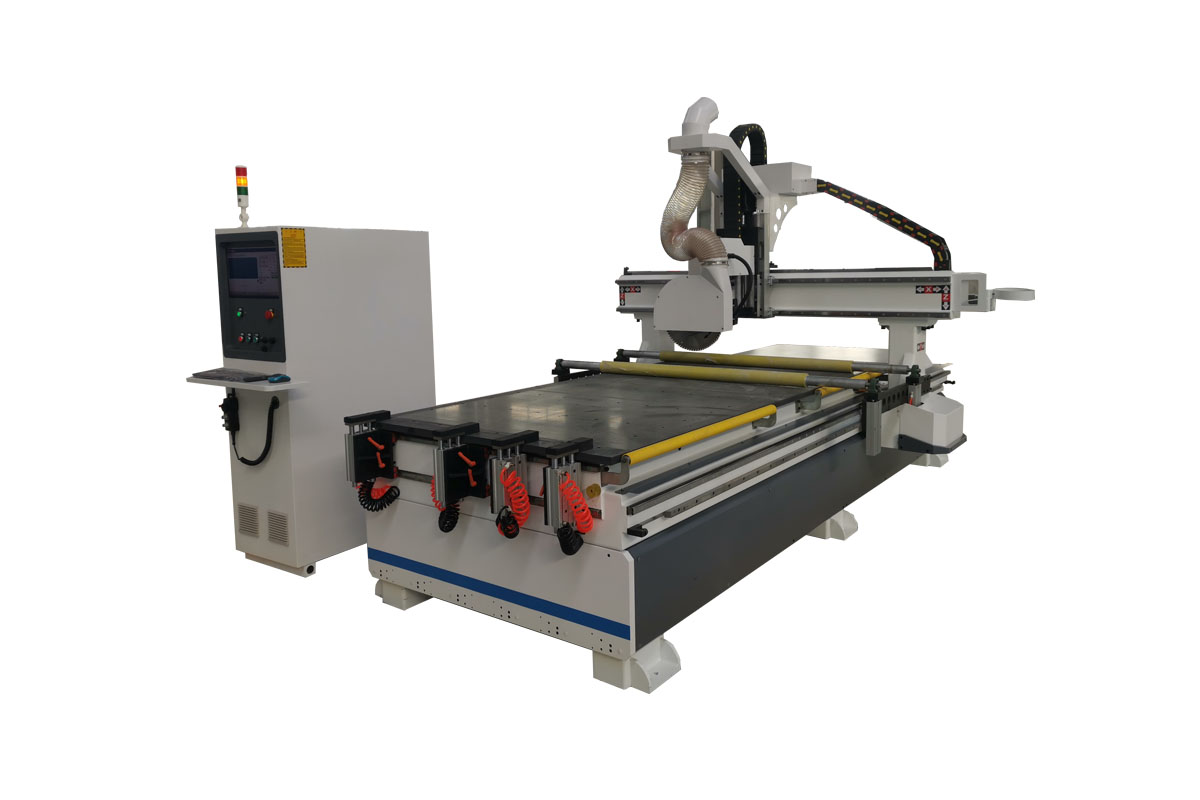

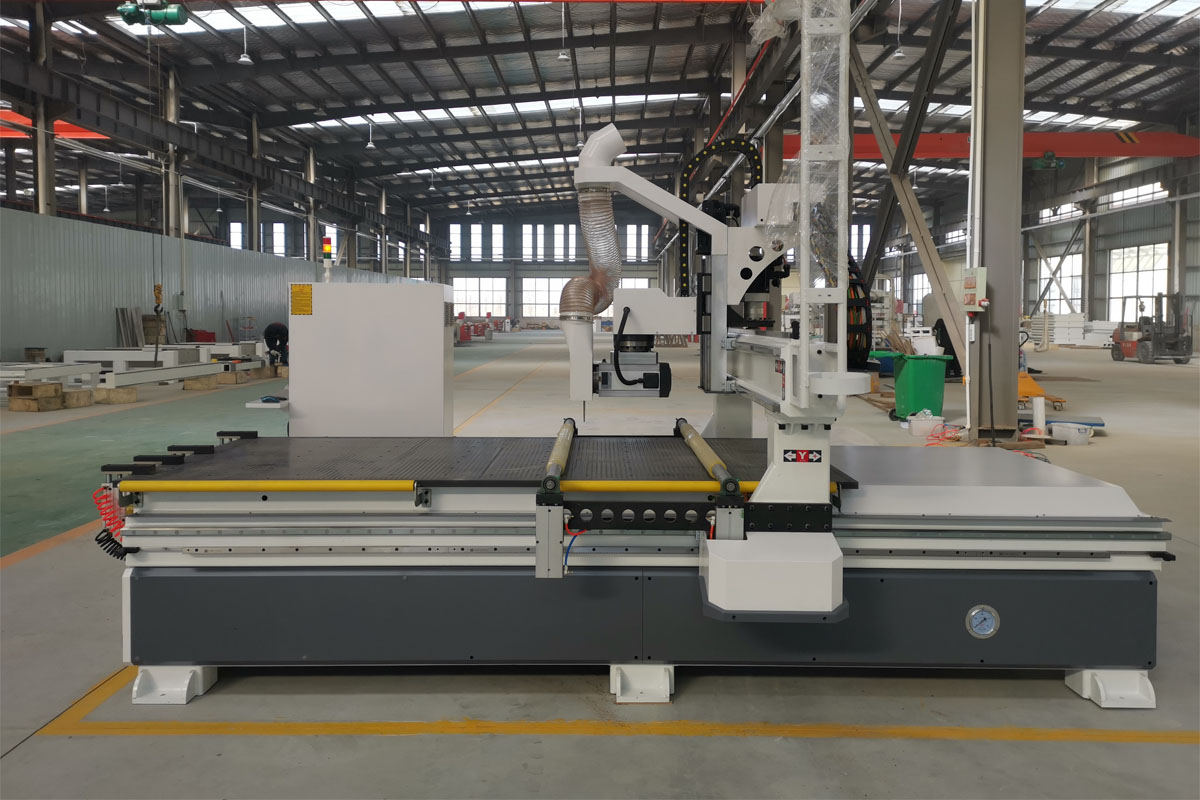

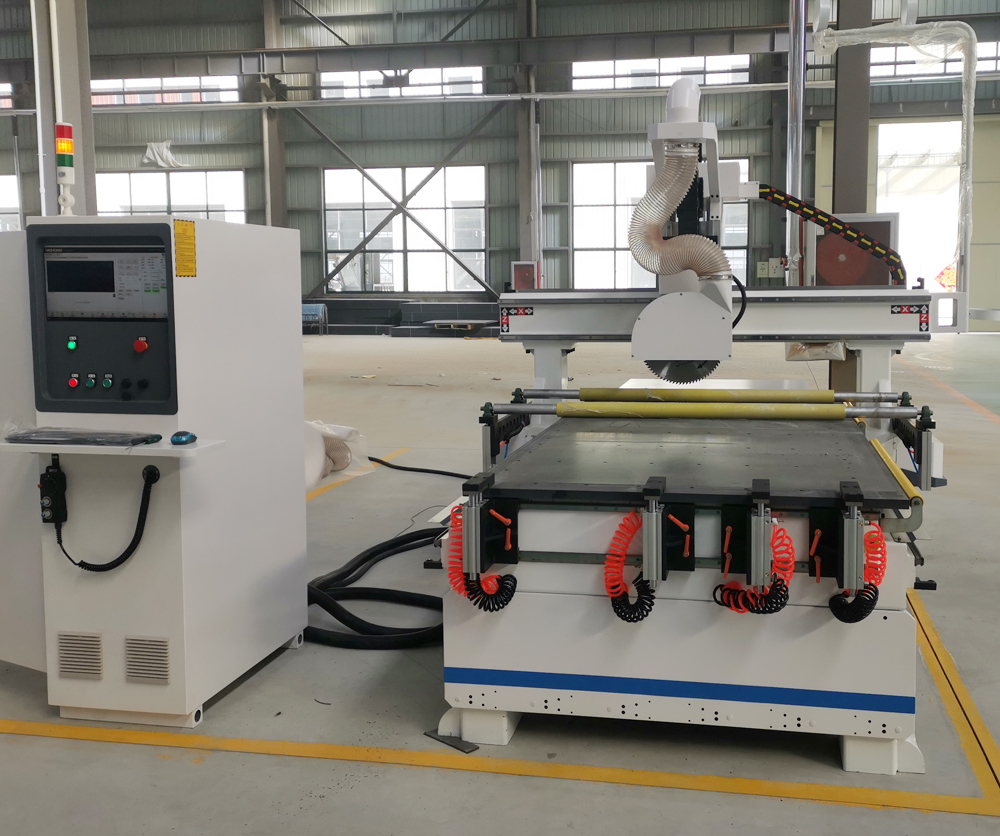

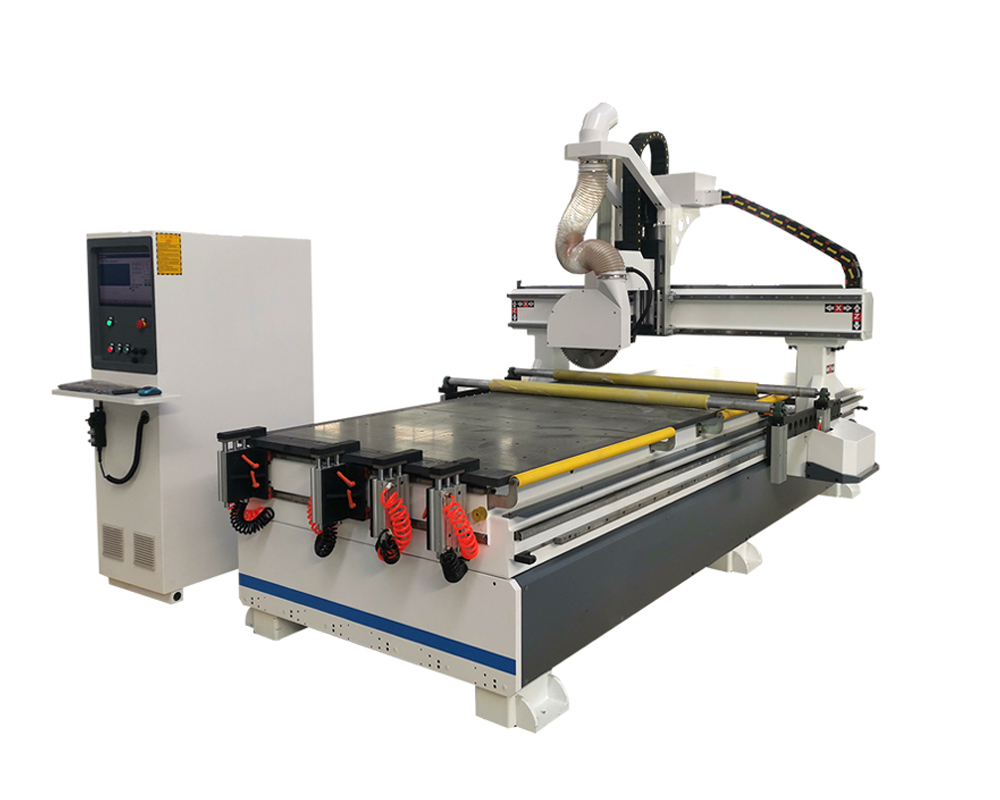

1325 Woodworking sawing machine
Characteristic:
1). 1325 Woodworking sawing machine X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump with high efficiency.
2). Adopt Yako servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .
3). Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel structure.
4). All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high precision.
2). Adopt Yako servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .
3). Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel structure.
4). All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high precision.
5). With 4 cylinder and 2 Pressure wheel for fix the material.
 |
 |
Performance parameter:
|
Description
|
parameter
|
||
|
XYZ working area
|
1300*2500*200mm
|
1500*3000*200mm
|
2000*3000*200mm
|
|
Table size
|
1440X3040mm
|
1640*3540mm
|
2140*3540mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
||
|
X,Y,Z Repositioning Positioning Accuracy
|
±0.025mm
|
||
|
Lathe Structure
|
Welded Strucutre
|
||
|
X, Y Structure
|
Gear Wheel Transmission, Shaft Linear Bearings
|
||
|
Z Structure
|
Ball Screw, Shaft Linear Bearings
|
||
|
Max.Consume Power
|
20KW
|
||
|
Max.Speed
|
0-60000mm/min
|
||
|
Max.Working Speed
|
0-25000mm/min
|
||
|
Spindle Power Motor
|
5.5 or 7.5Kw spindle
|
||
|
Spindle Speed
|
0-24000RPM
|
||
|
Working Mode
|
Servo system
|
||
|
Working Voltage
|
AC220V/380V, 50/60Hz , 3PH
|
||
|
Command
|
G Code, *uoo, *mmg, *plt
|
||
|
Operating System
|
SYNTEC or LNC System
|
||
|
Interface
|
Internet line
|
||
|
Flash Memory
|
512M
|
||
|
Collet
|
ER32
|
||
|
X,Y Working Delicacy
|
<0.01mm
|
||
|
Software
|
Type3 software, Wentai software,Artcam software
|
||
|
Running circumstance
|
Temperature: 0°C~45°C,
Relative humidity: 30%~75%
|
||
|
Packing Size
|
4000x2150x2200 mm
|
||
|
Net Weight
|
2000KG
|
||
|
Gross Weight
|
2300KG
|
||
Working Sample
Application of 1325 Woodworking sawing machine
Mainly used in furniture manufacturing, woodworking decoration, building decoration, board processing and other industries, it can process various types of wooden boards, artificial boards, plastic boards, etc
Mainly used in furniture manufacturing, woodworking decoration, building decoration, board processing and other industries, it can process various types of wooden boards, artificial boards, plastic boards, etc
Details Images
 |
 |
| Bed lathe was milled by 5 axis CNC central machine,make sure the machine with high precision |
High quality guide Hiwin guide,make sure with high accuracy |
 |
 |
| Taiwan grinding rack,with high solidity and fast speed | 5.5 KW or 7.5 KW spindle can rotate 180 degree |
 |
 |
| With two pressure wheel,can fix the material very tight when cutting |
With positioning cylinder for locate the material sheet. |
 |
 |
|
Digital automatic lubrication system for lubricat guide easily.
|
Weihong or Syntec control system with disply. |
 |
 |

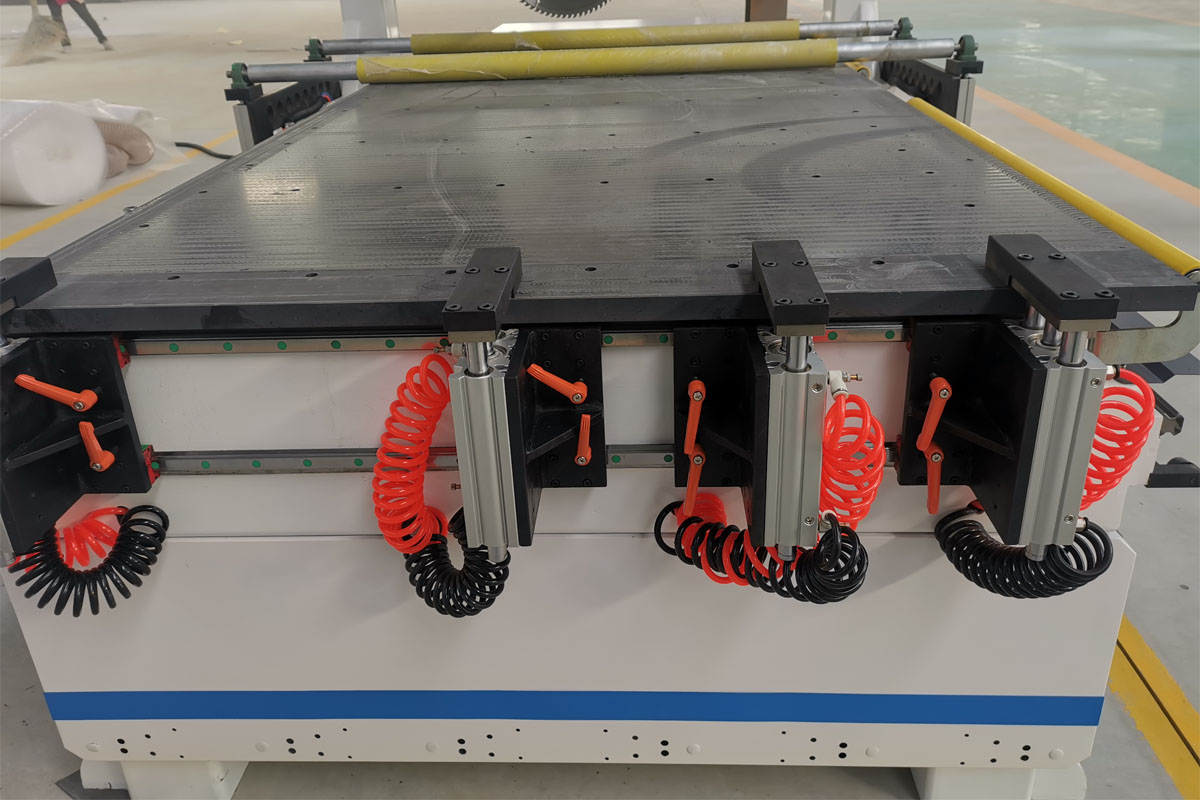

| Saw with diameter 400mm, cutting speed fast | With four cylinder for fix the sheet material |
 |
 |
| With foot cushions，it can adjust the planeness easiliy. | Hand-held pulse generator Can control the switch ,easy to operate the machine. |
