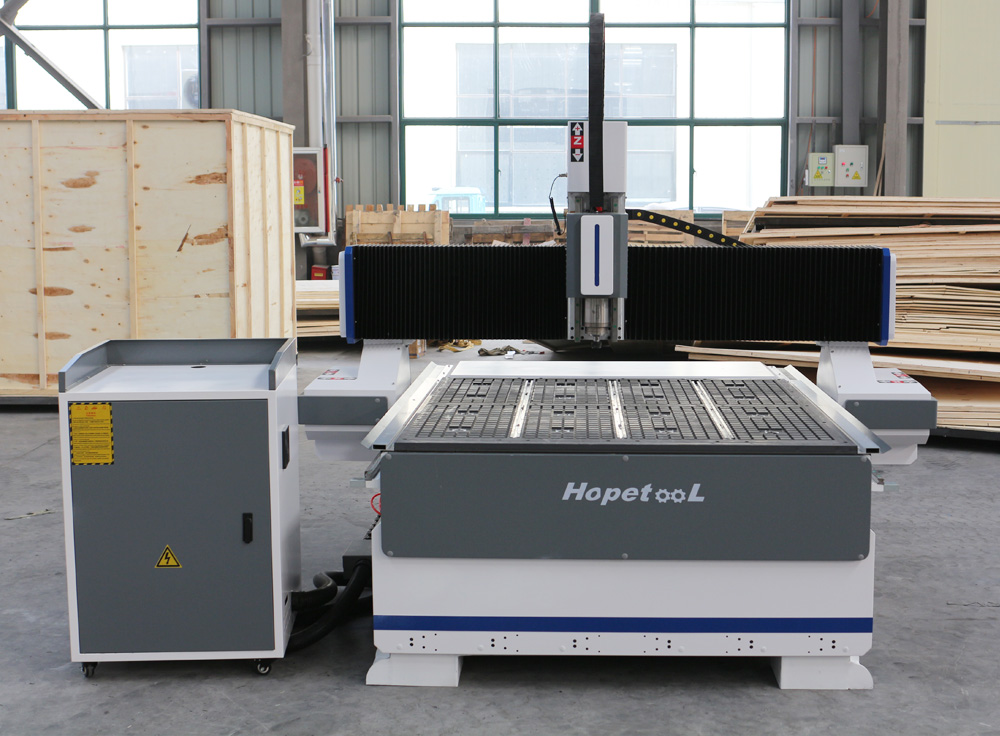

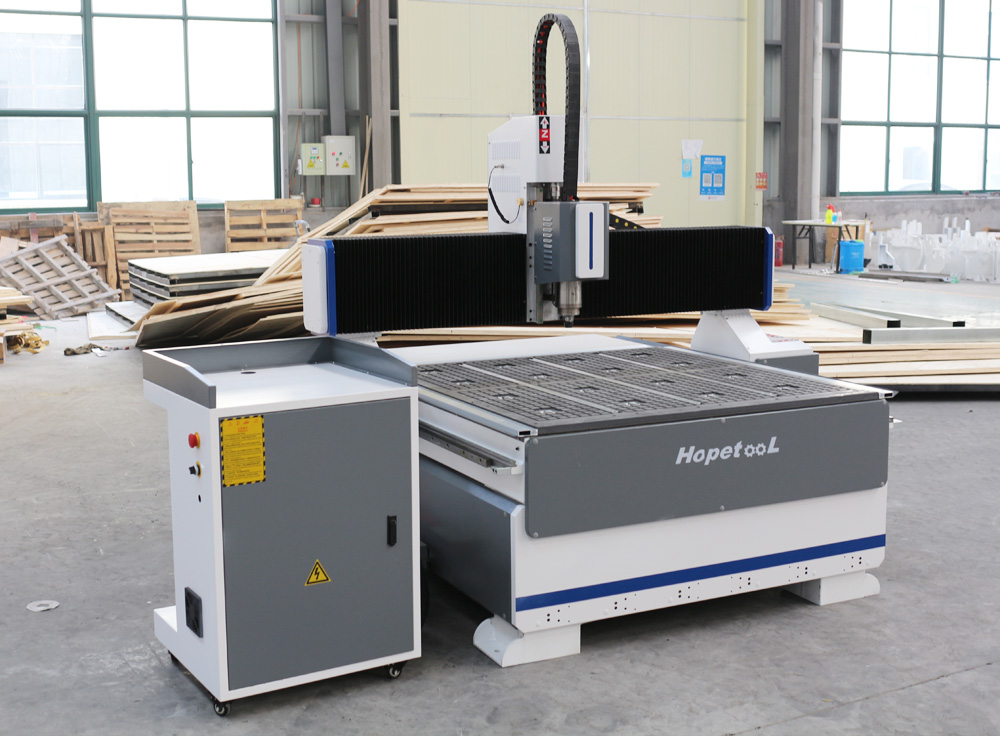

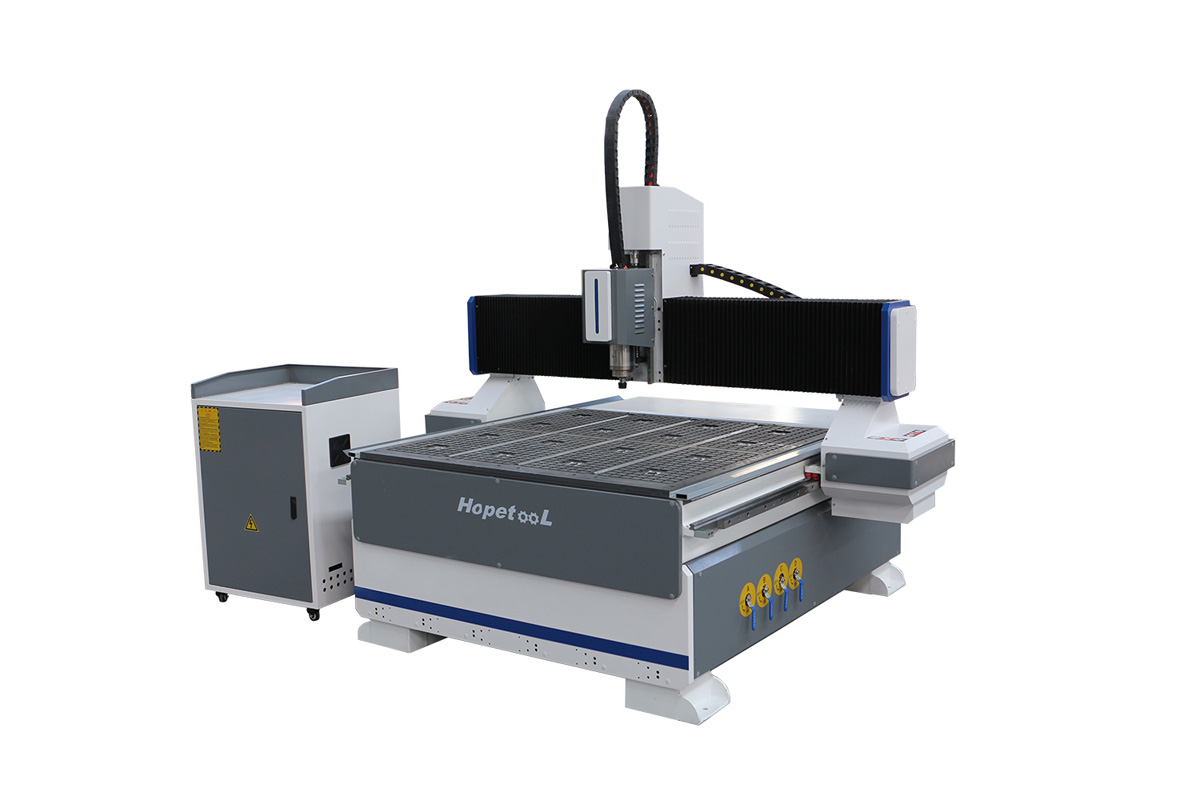

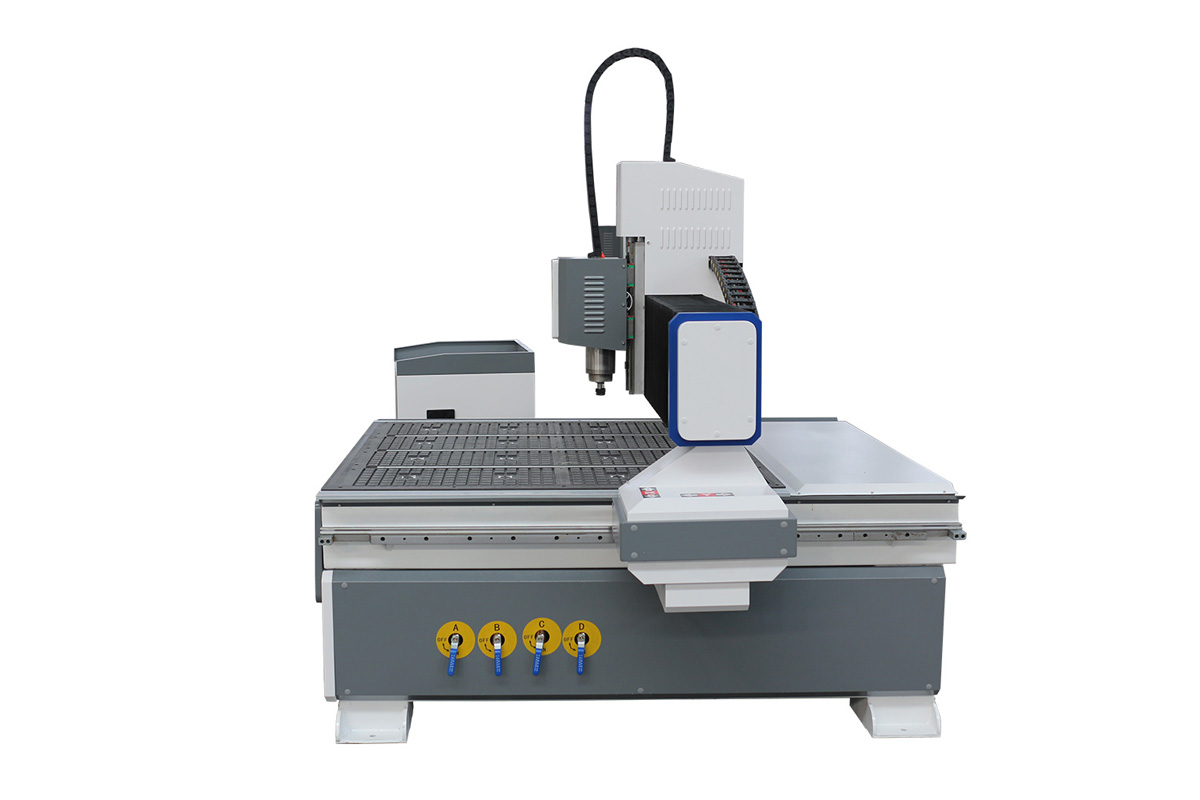

Characteristic

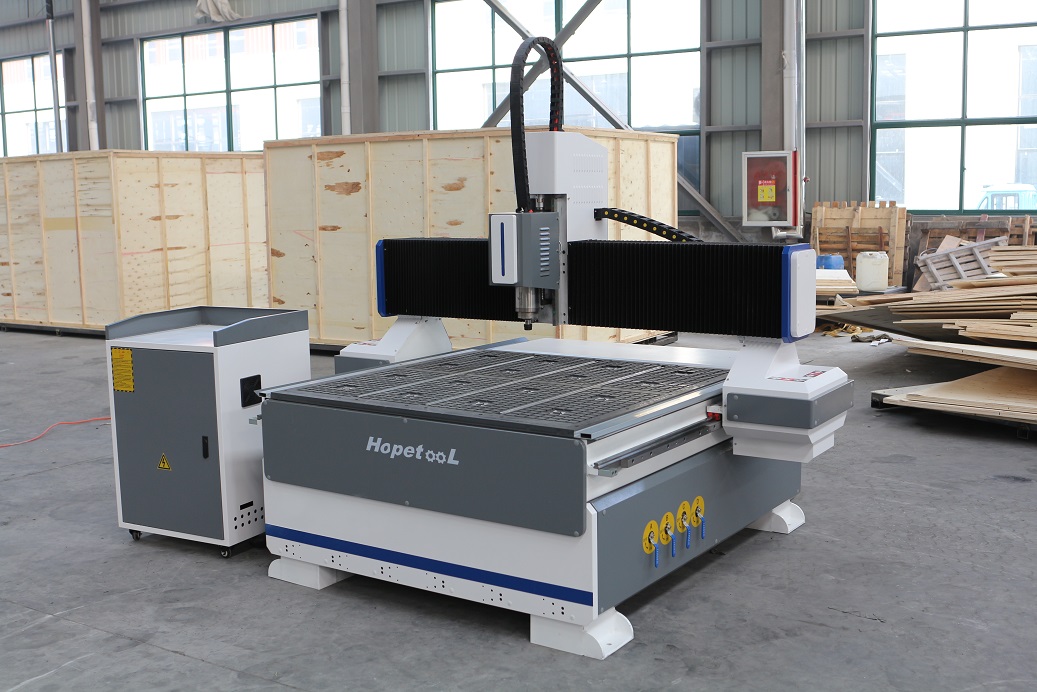

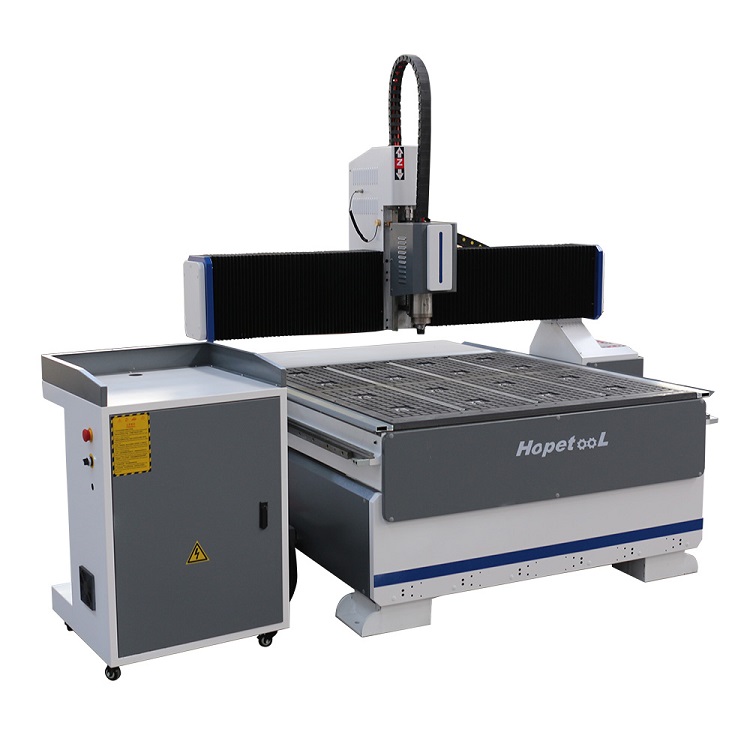

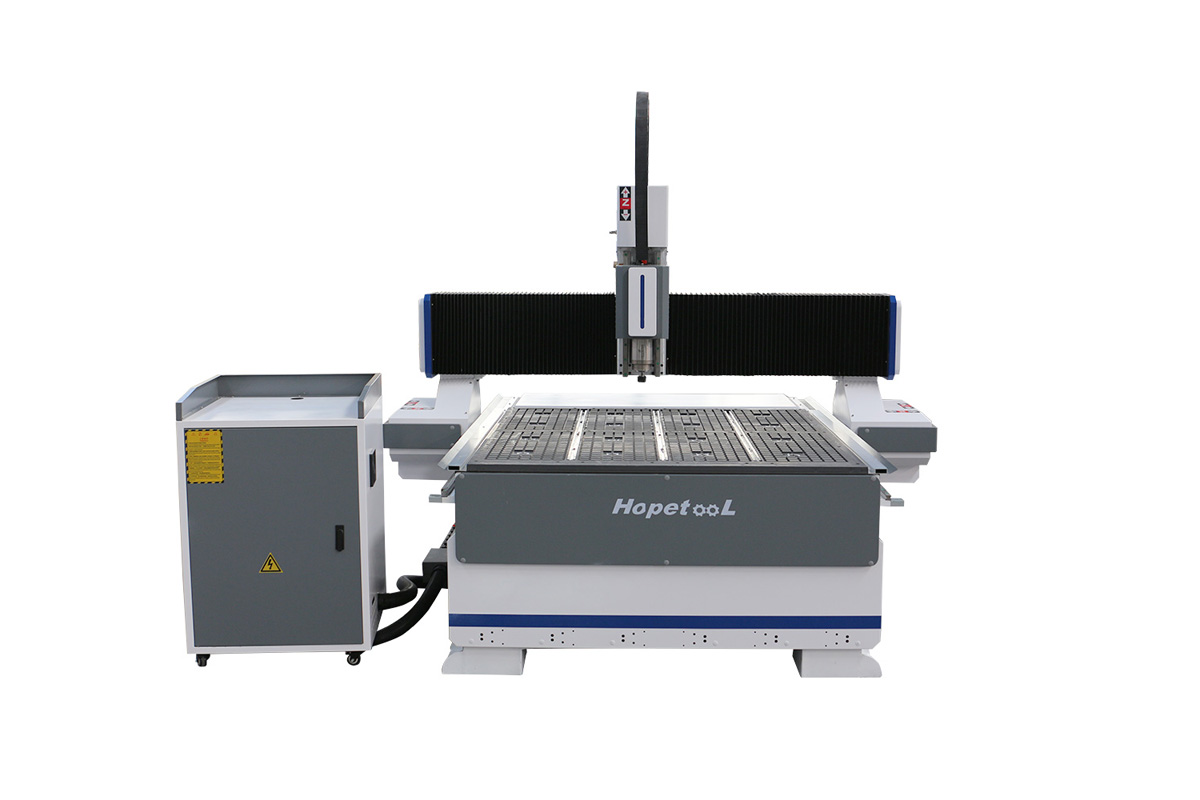

1、The 1313 CNC router for wood machine with thickened square tube welded bed ，strong and non-deformed, with high precision, high transmission efficiency and low wear.
2、Using Taiwan high-quality linear guides , with low friction coefficient, high positioning accuracy and long life
3、2.2KW water-cooled spindle, the speed is  0-24000rpm, with wide speed range, large torque, strong cutting force, low noise, etc.
4、High-speed stepper motor and driver, low cost and simple control.
5、X and Y axes use rack transmission, which is fast and efficient.
6、Weihong control system has good software compatibility, Type3, UG, AutoCAD, ArtCAM and other software

Performance parameter:

number	Description	parameter
1	XYZ working area	1300*1300*200mm
2	Table size	1330*1840mm
3	XYZ travel positioning accuracy	±0.01mm
4	XYZ repositioning positioning accury	±0.025mm
5	Table surface	Vacuum table
6	frame	Steel tube welded frame
7	drive system X-Y axis	Rack actuation
8	drive system Z axis	Ball screw
9	Spindle power	3.2/5.5KW water cooling spindle
10	Max velocity	50m/min
11	Max working speed	25m/min
12	Spindle speed	0-24000rmp
13	work mode	Stepper
14	Working voltage	AC220/380V
15	Command language	G code
16	Interface	USB or parallel port
17	Operating system	Ncstudio（Mach3/DSP）
18	Flash memory	128
19	X-Y resolution	﹤0.025mm
20	Software environment	Ucancam type3 artcut
21	Running environment	Temperature:0-45℃
22	Paking size	2100*1900*1800mm
23	Net weight	600kg
24	Gross weight	800kg



Machine Parts：

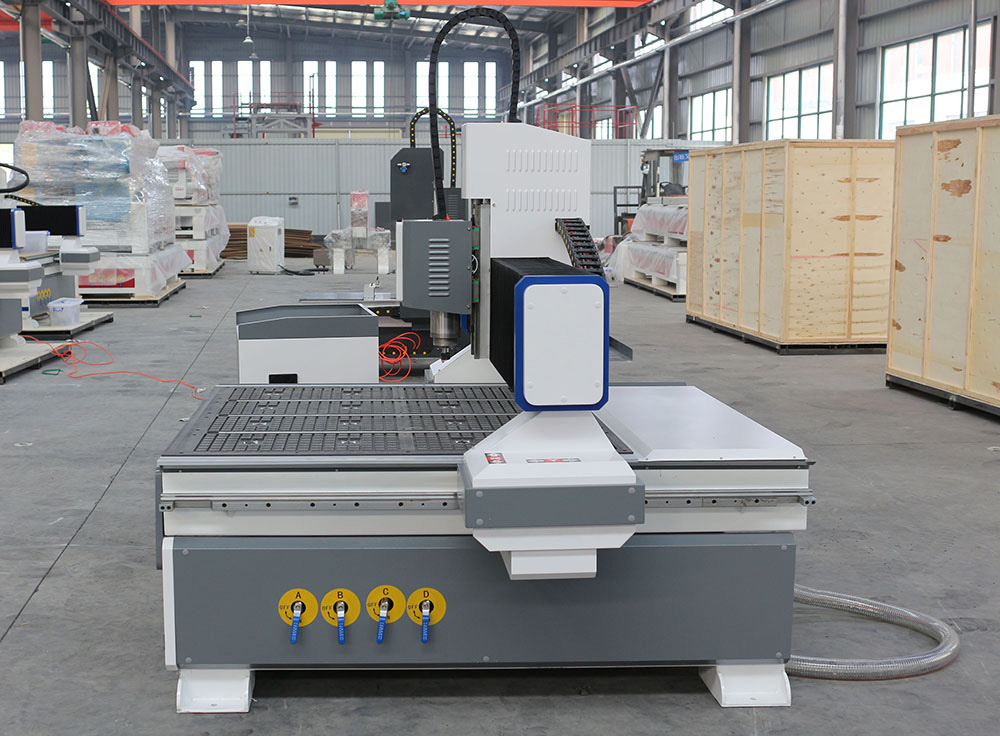

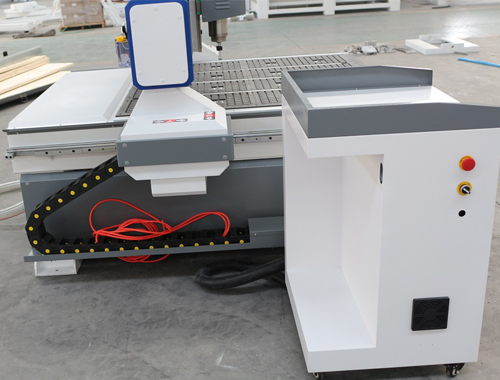

1313 CNC router for wood machine have very high engraving accuracy, can engrave complex patterns, and  fast, saving labor and improving work efficiency. CNC engraving machine are easy to operate ,use cnc control systems to automatically complete work according to the designed path.

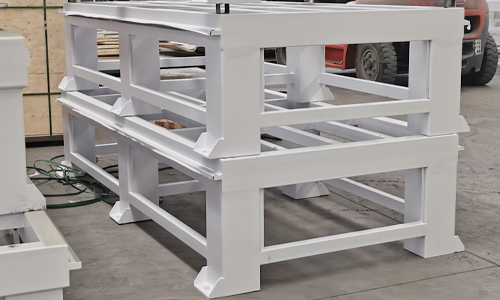

	Steel tube welded lathe bed

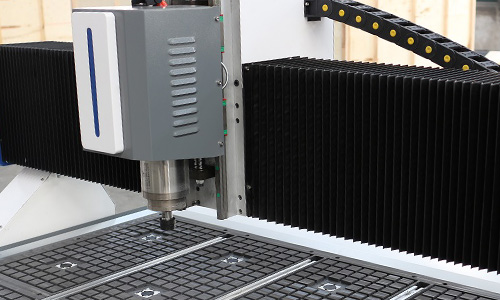

2.2KW water cooling spindle

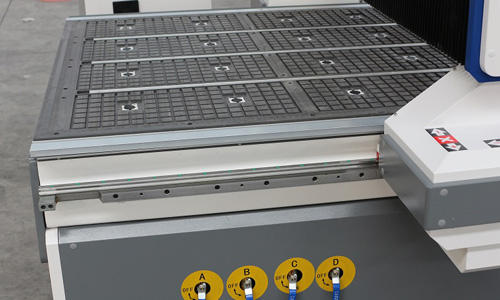

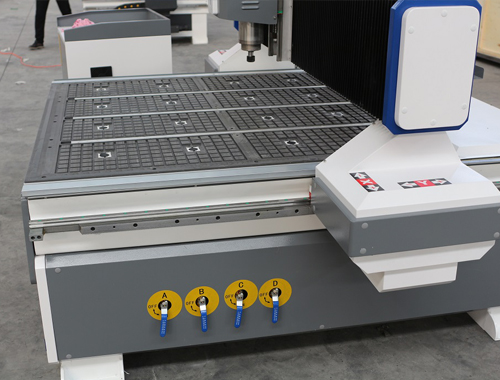

	Vacuum table

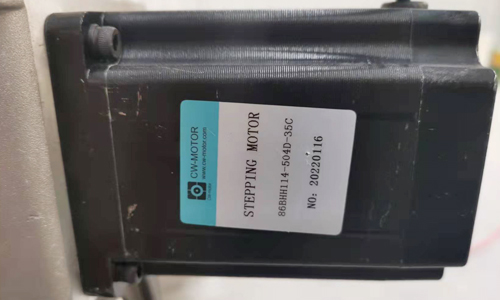

Stepper motor
	Foling inverter
Z- axis ball screw
	Taiwan rail and rack
Limit switches
	Tool sensor

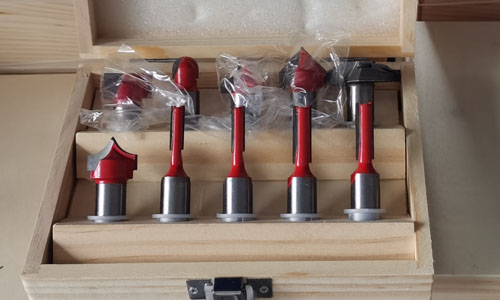

Carve tools



Working Samples：

Furniture manufacturing: 1313 CNC router for wood machine can making various furniture, such as doors, cabinets, tables, chairs, etc.
Decoration production: making various decorations, such as photo frames, pendants, ornaments, boxes, etc.
Advertising product production: making advertising signs, logo production, acrylic advertising products, modules, etc.

Our factory

Our factory sells and produces CNC engraving machines, laser cutting machines, flatbed cutting machines, etc. We have 15 years of production experience, our products are sold to more than 80 countries, and we have long-term business relations with more than 10 countries. Our product quality has received good feedback from customers, and we look forward to more partners joining us!



FAQ：

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
