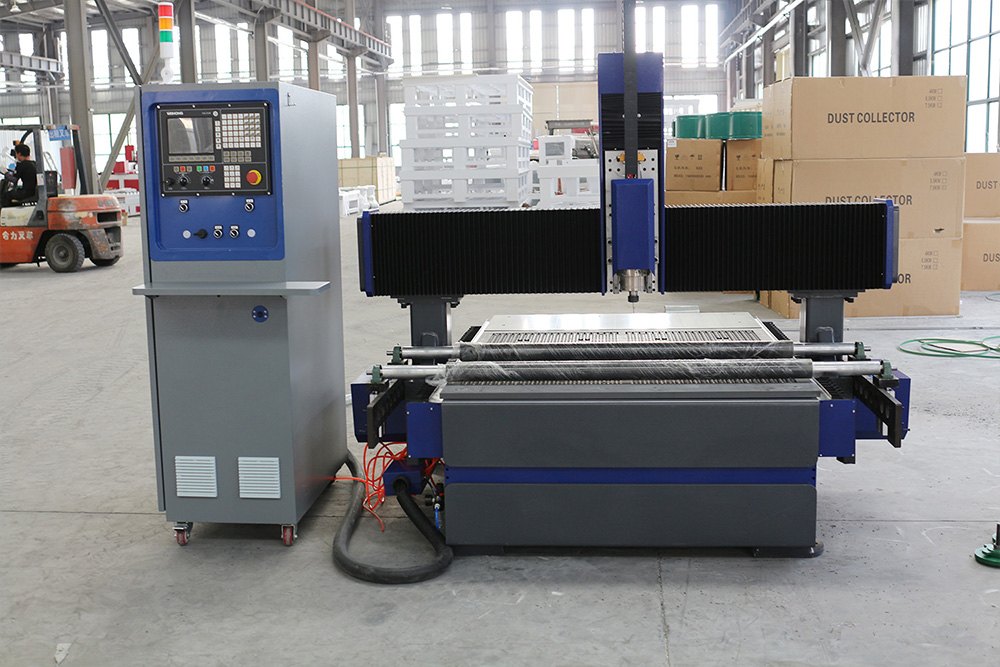

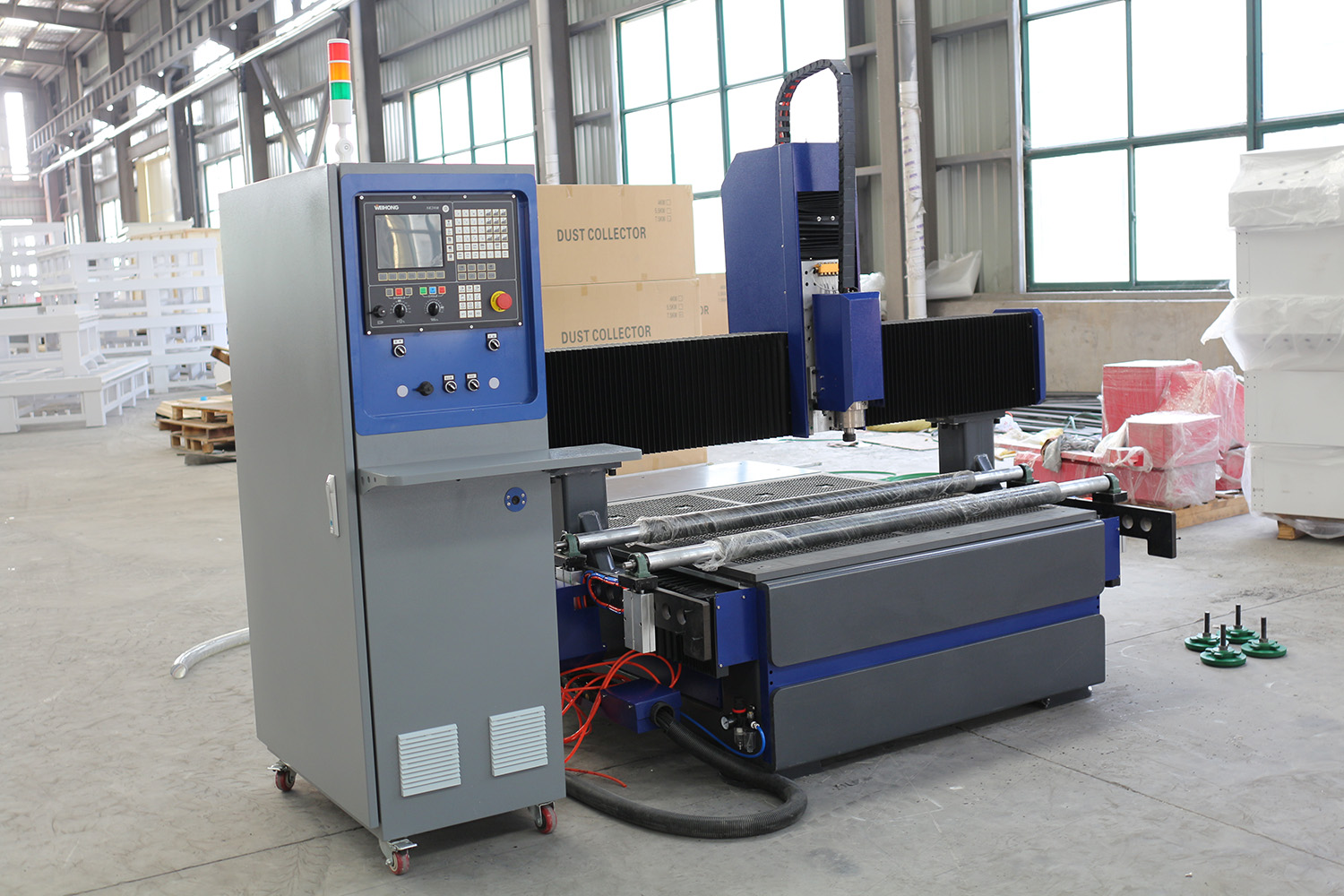

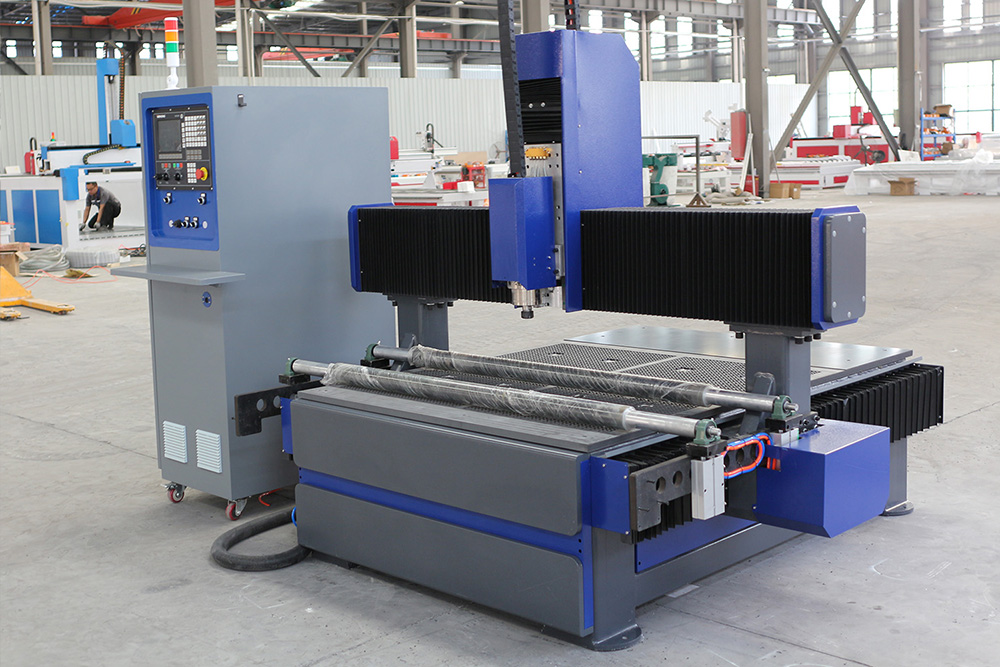

1212 cnc router woodworking machine

The 1212 cnc router woodworking machine is an intelligent cutting and engraving equipment. It has multiple functions such as wiring, drilling, cutting, sawing, slotting, etc. By changing different cutters, carving and cutting of woodMDF, stone, acrylic , PVC, plastic, foam and other materials can be realized.
The 1212 CNC engraving machine can be applied in multiple industries. Wood furniture advertising mold industryart and decoration

Performance Parameter

Description parameter
XYZ working area 1200*1200*300mm/1300*1300*300mm/1300*2500*300mm/1500*3000*300mm
XYZ travel positioning accuracy ±0.01mm
XYZ repositioning positioning accury ±0.02mm
Table surface Aluminium table or vacuum table
Gantry casting iron
drive system X-Y axis Gear and rack
drive system Z axis Ball screw
Spindle power 5.5 KW water cooled spindle
Max velocity 50m/min
Max working speed 25m/min
Spindle speed 0-24000rmp
work mode Hybrid Servo  motor
Working voltage AC220V or 380V
Operating system Ncstudio/DSP/Mach3
X-Y resolution <0.02mm
Paking size 2000*1850*1750mm/2250*2050*1850mm/3100*2250*1850mm/3600*2250*1850mm
Gross weight 1000 kg

Our factory produces woodworking CNC engraving machinestone CNC router machineformer CNC router machineadvertising CNC engraving machinemetal CNC router machinelaser machine, and more, and we can also provide customized services.
We produce various models of cnc wood router machine, including 1300 * 2500mm,1500 * 3000mm,2100 * 3000mm,2100 * 4000mm and other large machines, as well as mini CNC router machine, such as 400 * 400mm,600 * 600mm,600 * 900mm,1200 * 1200mm and so on. If you are looking for a partner, feel free to contact me anytime.

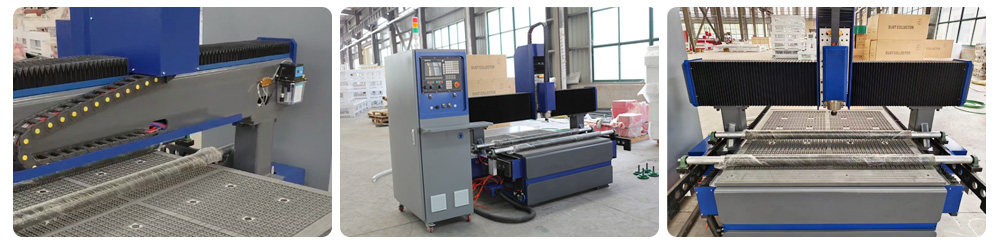

Detailed Photos

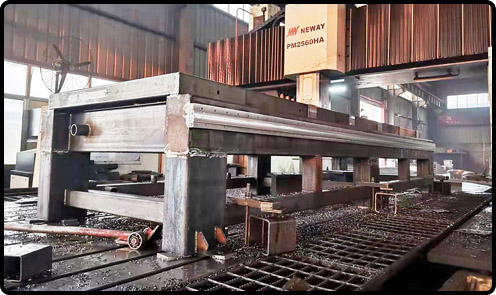

The machine lathe bed

The bed lethe is made of cast iron and does not deform for a long time.
It has been milled with a machining center and has high precision.

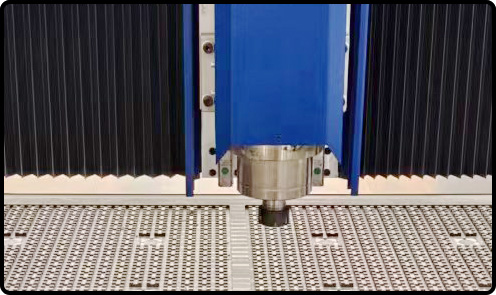

Water cooling spindle

We use well-known domestic spindle. We designed this machine with

5.5KW high power spindle, which has a wider range of applications.
And the spindle has a high speed, but you don’t have to worry about its
accuracy, it can completely meet your requirements

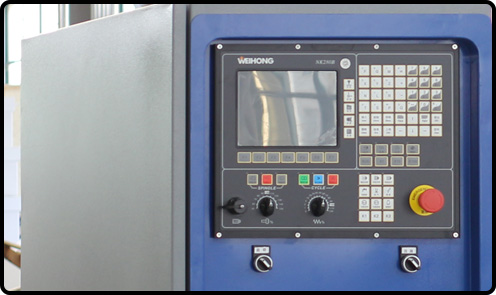

Weihong control system

the embedded numerical control system based on windows platform
can upgrade the functions infinitively. Antiinterference design ofthe
hard and soft ware synchronistically make sure of the reliable operation.

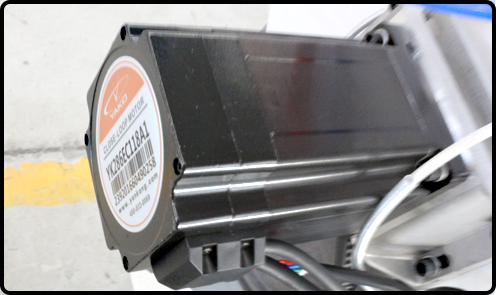

Hybrid Servo motor

The precision and lifespan of the hybrid servo motor have been
improved,built-in encoder,It can stop automatically when graunch
happens,so can avoid accidents .

BEST INVERTER

The function of the frequency converter is mainly to adjust the speed
of the motor.

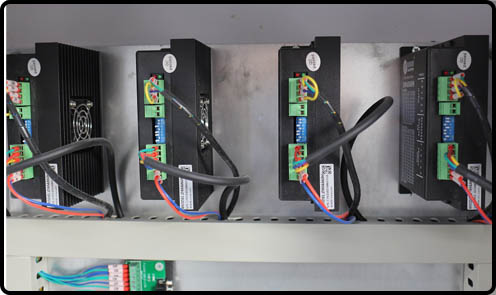

LEADSHINE DRIVER

It has better position accuracy and movement repeatability.

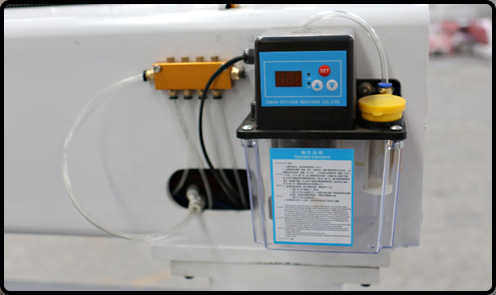

Electric oilling

Electric oilling is easy to maintain and more convenient to operate

VACUUM TABLE WITH T-SLOT

Double layer vacuum table can absorb different sizes
and different shaped materials tightly.
Optional Accessories

Dust collector:The main function of the dust collector for CNC wood router machine is to purify the air, extend the machine’s lifespan, and improve work efficiency

Rotary axis:The rotary axis is mainly used for 3D carving, such as Roman columns, art statues, decorations, etc

Servo Motor:If you have high precision requirements, you can choose Yako or Yaskawa servo motor. Servo motor have higher precision and performance

Working Samples

The 1212 cnc router woodworking machine are suitable for processing diverse and complex products, including non-metallic materials such as density boards, cabinet doors, computer desks, and panel furniture, as well as non-ferrous metals such as copper and aluminum
1. Furniture industry: the wood CNC engraving machine are widely used in furniture processing, such as cabinets, doors, beds, tables, chairs, kitchen counters, etc., greatly saving labor costs. ‌
2. Musical instrument industry: the 1212 wood CNC router machine are suitable for producing high-precision and aesthetically pleasing musical instruments, such as pianos, guitars, violins, etc., and can achieve high-precision and high-quality processing requirements. ‌
3. Advertising industry: suitable for the production of advertising signs, signage, acrylic cutting, vacuum molding and other materials for advertising decoration products. ‌
4. Craft gift industry: widely used in the production of craft gifts such as 3D carving and relief, meeting the carving needs of various exquisite patterns. ‌

After Sales Service

1. We will supply with the machine operation manual in English version for installing and operation.

2.Customer can come to our factory training .

3.Our engineer can go to customer’s factory training.

4.Our warranty is 2 years counting from the date when the Machine arrives at the port ofdestination.

5.We will supply after service 24 hours,customer can contact us any time.

6.When some problems can’t be solved by customers, our engineer can go to door to help.
